- Maximum Voltage Rating: 690V AC
- Hz: 40 to 60 Hz
- Minimum Operating Temperature: -13 Degrees F
- Phase: Three
- Maximum Operating Temperature: 158 Degrees F
- Control Circuit Voltage Limits: 88 to 264 V AC 110 to 240 V in operation; 88 to 242 V DC 110 to 220 V in operation; 55 V AC 110 to 240 V drop-out; 55 V DC 110 to 220 V drop-out
Specifications
| Part Number | LUCA32FU |
| Brand | Schneider Electric |
| Minimum Overload Relay Current Setting | 8:00 AM |
| Maximum Overload Relay Current Setting | 32 A |
| Trip Class | 10 |
| Maximum Voltage Rating | 690V AC |
| Standards | CSA C22.2 No 60947-4-1, EN 60947-6-2, IEC 60947-6-2, REACH, RoHS, UL Listed 60947-4-1 |
| Depth | 60 mm |
| Height | 66 mm |
| Width | 45 mm |
| Body Depth - Relay | 2.36 in |
| Overall Height - Relay | 2.6 in |
| Body Height - Relay | 2.6 in |
| Item | Overload Module |
| Hz | 40 to 60 Hz |
| Number of Poles | 3 |
| Features | Earth fault protection; Protection against phase failure and phase imbalance; Protection against overload and short-circuit; Manual reset; Free of Halogen, Mercury & Pvc; Resistance to Fire, Electrostatic Discharge, Fast Transients, Radiated Fields, Shock & Vibration |
| Coil Volts | 110 to 240V AC; 110 to 220V DC |
| Sensing Method | Thermal |
| Separate Mounting | No |
| Trip Class - Overload | 10 |
| Use With - Contactors and Starters | Mfr. Series LUB32 Contacts |
| Frame / Series / Class / Code | Class 10 |
| Kit Required for Retrofit Mtg. | No |
| Weight | 0.135 kg |
| Reset Type | Manual |
| Maximum Rated Motor Current Adjustment | 32 A |
| Compatible with Series | TeSys Ultra |
| Minimum Operating Temperature | -13 Degrees F |
| Minumum Rated Motor Current Adjustment | 8 A |
| Phase | Three |
| Maximum Operating Temperature | 158 Degrees F |
| Compatible Manufacturer Model Number | LUB32, LUB38 |
| Operating Time | 35 ms opening with LUB32 control circuit; 35 ms opening with LUB38 control circuit; 50 ms closing with LUB32 control circuit; 50 ms closing with LUB38 control circuit |
| Heat Dissipation | 3 W control circuit with LUB32; 3 W control circuit with LUB38 |
| Protective Treatment | TH IEC 60068 |
| Resistance To Radiated Fields | 9.14 V/m (10 V/m) 3 IEC 61000-4-3 |
| Control Circuit Voltage Limits | 88 to 264 V AC 110 to 240 V in operation; 88 to 242 V DC 110 to 220 V in operation; 55 V AC 110 to 240 V drop-out; 55 V DC 110 to 220 V drop-out |
| Product Or Component Type | Standard control unit |
| Rated Operational Voltage | 690 V AC |
| Phase Failure Sensitivity | Yes |
| Shock Resistance | 10 gn power poles open IEC 60068-2-27; 15 gn power poles closed IEC 60068-2-27 |
| Load Type | 3-phase motor self-cooled |
| Operating Altitude | 6561.68 ft (2000 m) |
| Main Function Available | Earth fault protection; Protection against phase failure and phase imbalance; Protection against overload and short-circuit; Manual reset |
| Resistance To Fast Transients | 2 kV 3 serial link IEC 61000-4-4; 4 kV 4 all circuits except for serial link IEC 61000-4-4 |
| Immunity To Radioelectric Fields | 10 V IEC 61000-4-6 |
| Typical Current Consumption | 280 mA 110 to 240 V AC I maximum while closing with LUB32; 280 mA 110 to 240 V AC I maximum while closing with LUB38; 280 mA 110 to 220 V DC I maximum while closing with LUB32; 280 mA 110 to 220 V DC I maximum while closing with LUB38; 25 mA 110 to 240 V AC I rms sealed with LUB32; 25 mA 110 to 240 V AC I rms sealed with LUB38; 25 mA 110 to 220 V DC I rms sealed with LUB32; 25 mA 110 to 220 V DC I rms sealed with LUB38 |
| Safe Separation Of Circuit | 400 V SELV between the control and auxiliary circuits IEC 60947-1; 400 V SELV between the control or auxiliary circuit and the main circuit IEC 60947-1 |
| Non-Dissipating Shock Wave | 1 kV serial mode IEC 60947-6-2; 2 kV common mode IEC 60947-6-2 |
| Immunity To Voltage Dips | 70% / 500 ms IEC 61000-4-11 |
| Utilisation Category | AC-43; AC-41; AC-44 |
| Rated Impulse Withstand Voltage | 6 kV IEC 60947-6-2 |
| Tripping Threshold | 14.2 x Ir +/- 20% |
| Product Certifications | CE; UL; CSA; CCC; EAC; ASEFA; ATEX; Marine |
| Ambient Air Temperature For Storage | -40 to 185°F (-40 to 85°C) |
| Fixing Mode | Plug-in front face) |
| Compatibility Code | LUCA |
| Resistance To Electrostatic Discharge | 8 kV 3 in open air IEC 61000-4-2; 8 kV 4 on contact IEC 61000-4-2 |
| Rated Insulation Voltage | 690 V IEC 60947-6-2; 600 V UL 60947-4-1; 600 V CSA C22.2 No 60947-4-1 |
| Thermal Overload Class | Class 10 40 to 60 Hz -13 to 158°F (-25 to 70°C) IEC 60947-6-2; Class 10 40 to 60 Hz -13 to 158°F (-25 to 70°C) UL 508 |
| Ambient Air Temperature For Operation | -13 to 158°F (-25 to 70°C) |
| Product Specific Application | Basic protection requirements for motor starters: overload and short-circuit |
| Product Compatibility | Power base LUB32; Power base LUB38; Power base LUB320; Power base LUB380; Reversing contactor breaker LU2B32FU; Reversing contactor breaker LU2B38FU |
| Vibration Resistance | 2 gn 5 to 300 Hz power poles open IEC 60068-2-6; 4 gn 5 to 300 Hz power poles closed IEC 60068-2-6 |
| Fire Resistance | 1760°F (960°C) parts supporting live components IEC 60695-2-12; 1202°F (650°C) IEC 60695-2-12 |
| Immunity To Microbreaks | 3 ms |
| Motor Power KW | 15 kW 400 to 440 V AC 50/60 Hz; 15 kW 500 V AC 50/60 Hz; 18.5 kW 690 V AC 50/60 Hz |
| IP Rating | IP20 |
| Relay Application | Motor control; Motor protection |
| Trip Clss | 10 |
Description

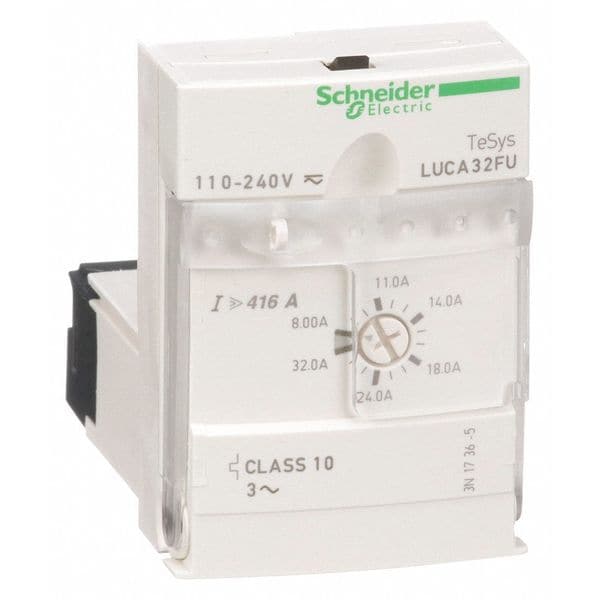

The LUCA32FU is a Schneider Electric overload module, part of the TeSys Ultra series. This overload module provides protection against overload, short-circuit, earth fault, phase failure, and phase imbalance, with a manual reset and a Class 10 trip class. It is rated for 690V AC at 40 to 60 Hz and complies with standards including CSA C22.2 No 60947-4-1, EN 60947-6-2, IEC 60947-6-2, and UL Listed 60947-4-1.
