- Mounting Hole Diameter: 0.2 in
- Operating Temp. Range: 10 Degrees to 250 Degrees F
- Body Material: Zinc
- Amps: 10
- Voltage Rating: 600VAC/250VDC
- NEMA Rating: 1, 12, 13, 3, 4, 4X, 6, 6P
Specifications
| Part Number | LSA1A |
| Brand | Honeywell |
| Basic Actuator Style - Limit Switch | Rotary |
| Actuator Style - Limit Switch | No Lever, Rotary |
| Contact Form- Switches | 1NC/1NO |
| Actuator Location - Limit Switch | Side |
| AC Contact Rating - Limit Switch | 10A at 600V |
| Roller Width | 0.19 in |
| Body Width - Limit Switch | 1.62 in |
| Width | 1.62" |
| Depth | 1.75" |
| Height | 4.20" |
| Body Height - Limit Switch | 2.95 in |
| Body Depth - Limit Switch | 1.75 in |
| Mounting Hole Diameter | 0.2 in |
| Overall Width | 1.62 in |
| Body Depth | 1.75 in |
| Body Height | 2.95 in |
| Body Width | 1.62 in |
| Overall Depth | 2.44 in |
| Overall Height | 4.2 in |
| Item | Heavy Duty Limit Switch |
| DC Contact Rating - Limit Switch | 10A at 250V |
| Body Style - Limit Switch | Miniature |
| Mounting - Limit Switch | Surface |
| Contact Form - Limit Switch | 1NC/1NO |
| Body Style (Limit Switch) | Miniature |
| Mounting Hole Spacing - Limit Switch | 2.34 in x 1.16 in |
| Actuator Style (Limit Switch) | Rotary, No Lever |
| Basic Actuator Style (Limit Switch) | Rotary |
| IP Rating | IP65, IP66, IP67 |
| Boot Sealed Actuator (Limit Switch) | No |
| Travel | Differential Travel 5 Degrees , Maximum Pretravel 15 Degrees , Minimum Over Travel 60 Degrees |
| AC Contact Rating | 10 A @ 600 V |
| Operating Temp. Range | 10 Degrees to 250 Degrees F |
| Operating Force | 4.0 in-lb |
| DC Contact Rating | 10 A @ 250 V |
| Wiring Entry | 1/2"-14 NPT |
| Body Material | Zinc |
| Contact Form | 1NO/1NC |
| Actuator Location (Limit Switch) | Side |
| Electrical Connection | Screw Terminals |
| Amps | 10 |
| Standards | CCC, CE, CSA, UKCA, UL Listed |
| Actuator Style | Rotary Lever |
| Limit Switch Style | Heavy Duty Limit Switch |
| Voltage Rating | 600VAC/250VDC |
| Boot Sealed Actuator - Limit Switch | No |
| Movement | CCW, CW |
| Series | HDLS |
| Actuator Location | Side |
| Mounting Hole Pattern - Limit Switch | 2 Hole Diagonal |
| Stem Thread - Limit Switch | No Stem |
| Number of Poles | 1 |
| Mounting Hole - Limit Switch | (2) 0.20 in dia |
| NEMA Rating | 1, 12, 13, 3, 4, 4X, 6, 6P |
| Differential Travel | 5 Degrees |
| Operating Temperature - Maximum | 250 Degrees F |
| Number of Mounting Holes | 2 |
| NEMA Enclosure Rating | 1, 12, 13, 3, 4, 4X, 6, 6P |
| Operating Temperature - Minimum | 10 Degrees F |
| Mounting Hole Horizontal Center to Center Distance | 60 mm |
| Mounting Style | Surface |
| Action | Momentary |
| Includes Actuator | No Actuator Included |
| Operating Torque - Maximum | 4 in-lb |
| Mounting Hole Vertical Center to Center Distance | 30 mm |
| Overtravel | 60 Degrees |
| Boot Sealed Actuator | No Boot Included |
| Pretravel | 15 Degrees |
| Resistance Properties | Corrosion Resistant |
| Directional Movement | CCW/CW |
| Body Configuration | Plug-In |
Description

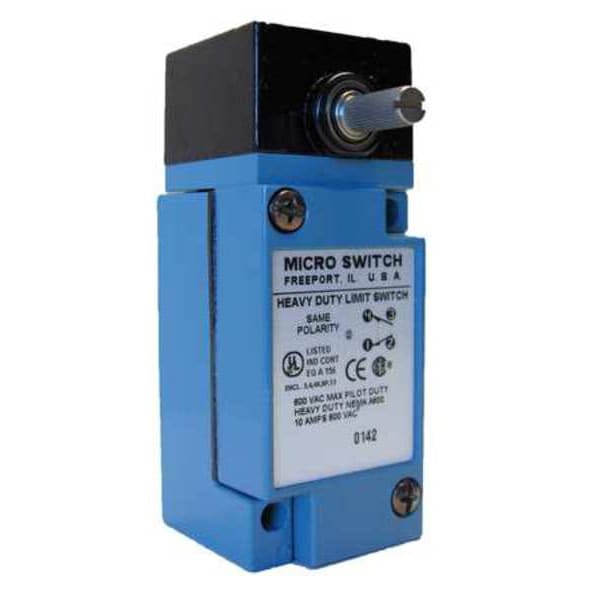

The Honeywell LSA1A is a heavy duty limit switch with a rotary, no-lever actuator. This type of switch detects the presence or position of an object by opening or closing an electrical circuit upon physical contact. It is rated for 10A at 600V AC and 10A at 250V DC, with a NEMA/IP67 rating.
