- Maximum Voltage Rating: 690V AC
- Phase Failure Sensitivity: tripping current 130 % of Ir on two phase, the last one at 0
- Network Frequency: 0 to 400 Hz
- Ambient Air Temperature For Operation: -20-60°C without derating IEC 60947-4-1
- Ambient Air Temperature For Storage: -60-70°C
- Maximum Operating Temperature: 140 Degrees F
Specifications
| Part Number | LRD350 |
| Brand | Schneider Electric |
| Auxiliary Contact Form | 1NC/1NO |
| Minimum Overload Relay Current Setting | 37 A |
| Maximum Overload Relay Current Setting | 50 A |
| Trip Class | 10A |
| Overload Protection Type | Thermal |
| Depth | 4.84 |
| Overall Height - Relay | 2.76 in |
| Height | 2.76" |
| Body Depth - Relay | 4.84 in |
| Width | 2.17 |
| Body Height - Relay | 2.76 in |
| Body Height | 2.76 in |
| Overall Height | 2.76 in |
| Item | Overload Relay |
| Maximum Voltage Rating | 690V AC |
| Standards | CSA C22.2 No 60947-4-1, CSA C22.2 No 60947-5-1, EN 50495, EN/IEC 60947-4-1, EN/IEC 60947-5-1, REACH, RoHS, UL 60947-4-1, UL 60947-5-1 |
| Trip Class - Overload | 10 |
| Sensing Method | Bimetallic |
| Use With - Contactors and Starters | Mfr. Series LC1D40A to LC1D65A Contactors |
| Separate Mounting | Yes |
| For Use With | TeSys D LC1D40A thru LC1D65A Contactors, Direct Mounting to LC1 with Ever Link Terminations D40A-D65A |
| Features | Single Phase Sensitivity; Differential |
| Number of Poles | 3 |
| Kit Required for Retrofit Mtg. | No |
| Starter Type | IEC |
| Phase Failure Sensitivity | tripping current 130 % of Ir on two phase, the last one at 0 |
| Network Frequency | 0 to 400 Hz |
| Tightening Torque | control circuit 1.7 N.m screw clamp terminals || power circuit 5 N.m EverLink BTR screw connectors |
| Thermal Overload Class | class 10A IEC 60947-4-1 |
| Network Type | DC || AC |
| Product Certifications | IEC || UL || CSA || CCC || EAC || DNV-GL || RMRS || EU-RO MR || LROS (Lloyds register of shipping) || ATEX INERIS || UKCA |
| Relay Application | motor protection |
| Climatic Withstand | IACS E10 |
| Permissible Current | 0.95 A 380 V AC-15 signalling circuit || 0.06 A 440 V DC-13 signalling circuit |
| Ambient Air Temperature For Operation | -20-60°C without derating IEC 60947-4-1 |
| Mechanical Robustness | shocks15 Gn for 11 ms IEC 60068-2-7 || vibrations4 gn IEC 60068-2-6 |
| Dielectric Strength | 1.89 kV 50 Hz IEC 60947-1 |
| Tripping Threshold | 1.14 +/- 0.06 Ir IEC 60947-4-1 |
| Control Type | Red push-button stop || Blue push-button reset |
| Range | TeSys || TeSys Deca |
| Thermal Protection Adjustment Range | 37-50 A |
| Product Name | TeSys LRD || TeSys Deca |
| Product Or Component Type | differential thermal overload relay |
| Associated Fuse Rating | 4 A gG signalling circuit || 4 A BS signalling circuit |
| Flame Retardance | V1 conforming to UL 94 |
| Product Compatibility | LC1D65A || LC1D50A || LC1D40A |
| Device Short Name | LRD |
| Connections - Terminals | control circuit screw clamp terminals 2 1-2.5 mm² flexible without cable end || control circuit screw clamp terminals 2 1-2.5 mm² flexible with cable end || control circuit screw clamp terminals 2 1-2.5 mm² solid without cable end || power circuit EverLink BTR screw connectors 1 1-35 mm² flexible without cable end || power circuit EverLink BTR screw connectors 1 1-35 mm² flexible with cable end || power circuit EverLink BTR screw connectors 1 1-35 mm² solid without cable end |
| Ambient Air Temperature For Storage | -60-70°C |
| Terminal Connection Type | Screw Clamp Terminals |
| Reset Type | Manual |
| Maximum Operating Temperature | 140 Degrees F |
| Mounting Style | Direct To Contactor |
| Relay Style | IEC |
| Minimum Operating Temperature | -4 Degrees F |
| IP Rating | IP20 |
| Compatible with Series | TeSys Deca |
| Conventional Free Air Thermal Current | 5 A signalling circuit |
| Rated Insulation Voltage | power circuit 600 V CSA || power circuit 600 V UL || power circuit 690 V IEC 60947-4-1 |
| Rated Operational Voltage | 690 V AC 0 to 400 Hz power circuit IEC 60947-4-1 |
| Trip Clss | 10A |
Description

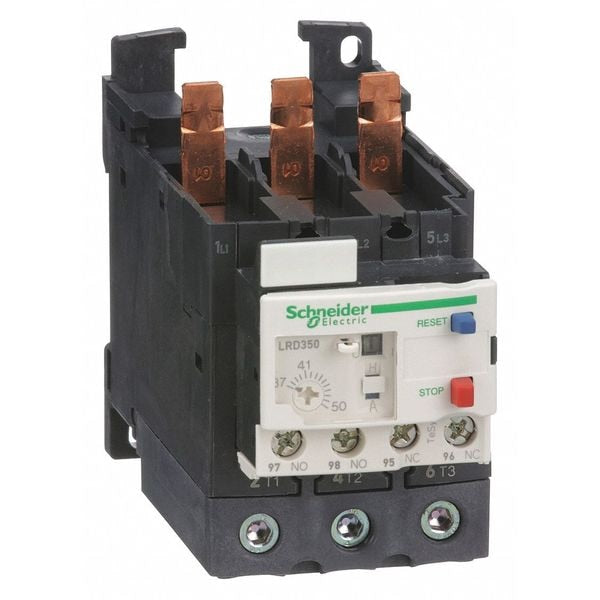

The Schneider Electric LRD350 is a thermal overload relay. This type of relay protects a motor by monitoring current and disconnecting power if an overload or phase failure occurs. It is designed for direct mounting to TeSys D LC1D40A through LC1D65A contactors with Ever Link terminations, and is rated for a maximum voltage of 690V AC.
