- Maximum Voltage Rating: 690V AC
- Ambient Air Temperature For Operation: -20-60°C without derating IEC 60947-4-1
- Network Frequency: 0 to 400 Hz
- Ambient Air Temperature For Storage: -60-70°C
- Phase Failure Sensitivity: tripping current 130 % of Ir on two phase, the last one at 0
- Maximum Operating Temperature: 140 Degrees F
Specifications
| Part Number | LRD22 |
| Brand | Schneider Electric |
| Auxiliary Contact Form | 1NC/1NO |
| Minimum Overload Relay Current Setting | 16 A |
| Maximum Overload Relay Current Setting | 24 A |
| Trip Class | 10A |
| Overload Protection Type | Thermal |
| Body Height - Relay | 3.62 in |
| Height | 3.62" |
| Overall Height - Relay | 3.62 in |
| Depth | 2.75 |
| Width | 1.77 |
| Body Height | 2.6 in |
| Overall Height | 2.6 in |
| Item | Overload Relay |
| Maximum Voltage Rating | 690V AC |
| Standards | CSA C22.2 No 60947-4-1, CSA C22.2 No 60947-5-1, EN 50495, EN/IEC 60947-4-1, EN/IEC 60947-5-1, GB/T 14048.4, GB/T 14048.5, REACH, RoHS, UL 60947-4-1, UL 60947-5-1 |
| Sensing Method | Bimetallic |
| Use With - Contactors and Starters | Mfr. Series LC1D25 to LC1D32 Contactors |
| Features | Single Phase Sensitivity; Differential |
| Trip Class - Overload | 10 |
| Number of Poles | 3 |
| For Use With | LC1D25 thru LC1D32 Contactor |
| Starter Type | IEC |
| Tightening Torque | control circuit 1.7 N.m screw clamp terminals || power circuit 2.5 N.m screw clamp terminals |
| Ambient Air Temperature For Operation | -20-60°C without derating IEC 60947-4-1 |
| Tripping Threshold | 1.14 +/- 0.06 Ir IEC 60947-4-1 |
| Range | TeSys || TeSys Deca |
| Thermal Overload Class | class 10A IEC 60947-4-1 |
| Device Short Name | LRD |
| Product Compatibility | LC1D25 || LC1D32 || LC1D38 |
| Product Certifications | IEC || UL || CSA || CCC || EAC || BV || RINA || DNV-GL || LROS (Lloyds register of shipping) || ATEX INERIS || UKCA |
| Network Type | DC || AC |
| Thermal Protection Adjustment Range | 16-24 A |
| Network Frequency | 0 to 400 Hz |
| Control Type | Red push-button stop || Blue push-button reset |
| Dielectric Strength | 1.89 kV 50 Hz IEC 60947-1 |
| Product Name | TeSys LRD || TeSys Deca |
| Relay Application | motor protection |
| Connections - Terminals | control circuit screw clamp terminals 2 1-2.5 mm² flexible without cable end || control circuit screw clamp terminals 2 1-2.5 mm² flexible with cable end || control circuit screw clamp terminals 2 1-2.5 mm² solid || power circuit screw clamp terminals 1 1.5-10 mm² flexible without cable end || power circuit screw clamp terminals 1 1-6 mm² flexible with cable end || power circuit screw clamp terminals 1 1.5-10 mm² solid |
| Associated Fuse Rating | 4 A gG signalling circuit || 4 A BS signalling circuit |
| Climatic Withstand | IACS E10 |
| Flame Retardance | V1 conforming to UL 94 |
| Product Or Component Type | differential thermal overload relay |
| Ambient Air Temperature For Storage | -60-70°C |
| Mechanical Robustness | vibrations6 Gn IEC 60068-2-6 || shocks15 Gn for 11 ms IEC 60068-2-7 |
| Permissible Current | 1.5 A 240 V AC-15 signalling circuit || 0.1 A 250 V DC-13 signalling circuit |
| Phase Failure Sensitivity | tripping current 130 % of Ir on two phase, the last one at 0 |
| Maximum Operating Temperature | 140 Degrees F |
| Mounting Style | Direct To Contactor |
| IP Rating | IP20 |
| Compatible with Series | TeSys Deca |
| Relay Style | IEC |
| Minimum Operating Temperature | -4 Degrees F |
| Reset Type | Manual |
| Terminal Connection Type | Screw Clamp Terminals |
| Rated Insulation Voltage | Power circuit 600 V CSA; Power circuit 600 V UL; Power circuit 690 V IEC 60947-4-1 |
| Conventional Free Air Thermal Current | 5 A signalling circuit |
| Rated Operational Voltage | 690 V AC 0 to 400 Hz power circuit IEC 60947-4-1 |
| Trip Clss | 10A |
Description

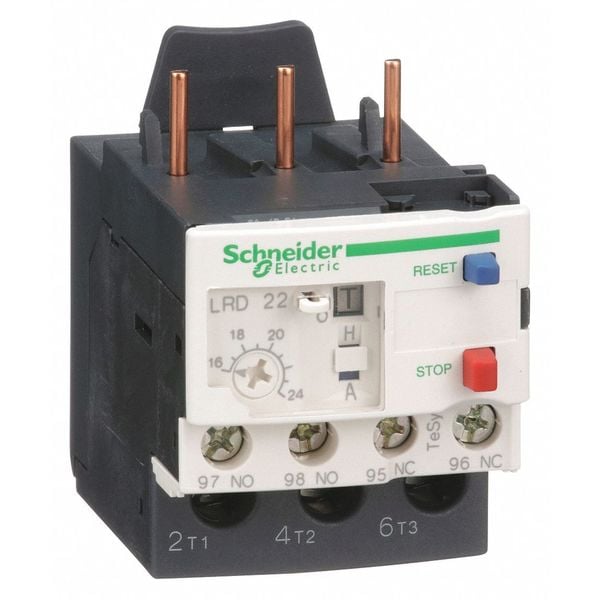

The Schneider Electric LRD22 is a thermal overload relay. This type of relay protects a motor by monitoring current and opening a circuit if an overload condition is detected. It is designed for use with LC1D25 through LC1D32 contactors and is rated for a maximum voltage of 690V AC, complying with standards including UL 60947-4-1 and EN/IEC 60947-4-1.
