- Maximum Voltage Rating: 690V AC
- Ambient Air Temperature For Operation: -20-60°C without derating IEC 60947-4-1
- Network Frequency: 0 to 400 Hz
- Ambient Air Temperature For Storage: -60-70°C
- Phase Failure Sensitivity: tripping current 130 % of Ir on two phase, the last one at 0
- Minimum Operating Temperature: -4 Degrees F
Specifications

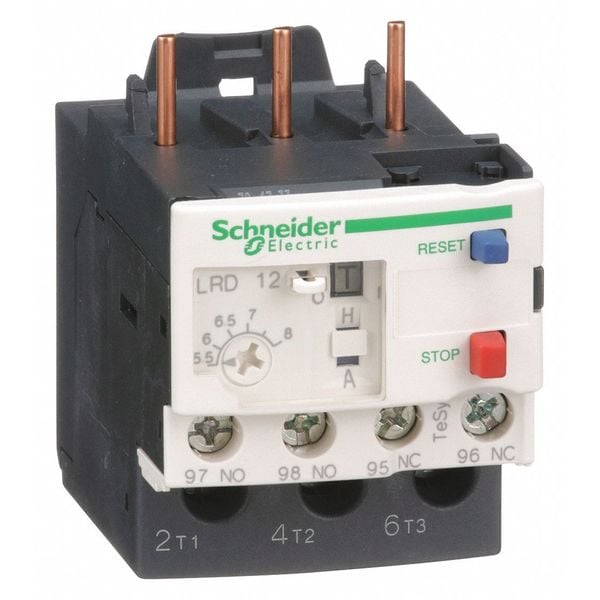

| Part Number | LRD12 |
| Brand | Schneider Electric |
| Auxiliary Contact Form | 1NC/1NO |
| Minimum Overload Relay Current Setting | 5.5 A |
| Maximum Overload Relay Current Setting | 8:00 AM |
| Trip Class | 10A |
| Overload Protection Type | Thermal |
| Width | 1.77 |
| Height | 3.62" |
| Body Height - Relay | 3.62 in |
| Overall Height - Relay | 3.62 in |
| Depth | 2.75 |
| Body Height | 2.6 in |
| Overall Height | 2.6 in |
| Item | Overload Relay |
| Maximum Voltage Rating | 690V AC |
| Standards | CSA C22.2 No 60947-4-1, CSA C22.2 No 60947-5-1, EN 50495, EN/IEC 60947-4-1, EN/IEC 60947-5-1, GB/T 14048.4, GB/T 14048.5, REACH, RoHS, UL 60947-4-1, UL 60947-5-1 |
| Features | Single Phase Sensitivity |
| Use With - Contactors and Starters | Mfr. Series LC1D09 to LC1D32 Contactors |
| Number of Poles | 3 |
| For Use With | LC1D09 thru LC1D32 Contactor |
| Trip Class - Overload | 10 |
| Sensing Method | Bimetallic |
| Starter Type | IEC |
| Ambient Air Temperature For Operation | -20-60°C without derating IEC 60947-4-1 |
| Thermal Protection Adjustment Range | 5.5-8 A |
| Climatic Withstand | IACS E10 |
| Relay Application | motor protection |
| Thermal Overload Class | class 10A IEC 60947-4-1 |
| Tightening Torque | control circuit 1.7 N.m screw clamp terminals || power circuit 1.7 N.m screw clamp terminals |
| Associated Fuse Rating | 4 A gG signalling circuit || 4 A BS signalling circuit |
| Tripping Threshold | 1.14 +/- 0.06 Ir IEC 60947-4-1 |
| Control Type | Red push-button stop || Blue push-button reset |
| Product Certifications | IEC || UL || CSA || CCC || EAC || BV || RINA || DNV-GL || LROS (Lloyds register of shipping) || ATEX INERIS || UKCA |
| Network Frequency | 0 to 400 Hz |
| Product Name | TeSys LRD || TeSys Deca |
| Device Short Name | LRD |
| Mechanical Robustness | vibrations6 Gn IEC 60068-2-6 || shocks15 Gn for 11 ms IEC 60068-2-7 |
| Flame Retardance | V1 conforming to UL 94 |
| Ambient Air Temperature For Storage | -60-70°C |
| Phase Failure Sensitivity | tripping current 130 % of Ir on two phase, the last one at 0 |
| Permissible Current | 1.5 A 240 V AC-15 signalling circuit || 0.1 A 250 V DC-13 signalling circuit |
| Connections - Terminals | control circuit screw clamp terminals 2 1-2.5 mm² flexible without cable end || control circuit screw clamp terminals 2 1-2.5 mm² flexible with cable end || control circuit screw clamp terminals 2 1-2.5 mm² solid || power circuit screw clamp terminals 1 1.5-10 mm² flexible without cable end || power circuit screw clamp terminals 1 1-4 mm² flexible with cable end || power circuit screw clamp terminals 1 1-6 mm² solid |
| Product Compatibility | LC1D18 || LC1D25 || LC1D32 || LC1D12 || LC1D09 || LC1D38 |
| Dielectric Strength | 1.89 kV 50 Hz IEC 60947-1 |
| Network Type | DC || AC |
| Range | TeSys || TeSys Deca |
| Product Or Component Type | differential thermal overload relay |
| Minimum Operating Temperature | -4 Degrees F |
| Maximum Operating Temperature | 140 Degrees F |
| Mounting Style | Direct To Contactor |
| IP Rating | IP20 |
| Reset Type | Manual |
| Relay Style | IEC |
| Compatible with Series | TeSys Deca |
| Terminal Connection Type | Screw Clamp Terminals |
| Rated Insulation Voltage | Power circuit 600 V CSA; Power circuit 600 V UL; Power circuit 690 V IEC 60947-4-1 |
| Rated Operational Voltage | 690 V AC 0 to 400 Hz power circuit IEC 60947-4-1 |
| Conventional Free Air Thermal Current | 5 A signalling circuit |
| Trip Clss | 10A |
Description
The Schneider Electric LRD12 is a thermal overload relay with single phase sensitivity, rated for a maximum voltage of 690V AC and a current range of 5.5 to 8 A. It protects motors by monitoring current and tripping the circuit in the event of an overload. This relay is designed for use with LC1D09 through LC1D32 contactors and complies with standards including IEC 60947-4-1 and UL 60947-4-1.
