- Auxiliary Contact Form: 1NO/1NC
- Maximum Overload Relay Current Setting: 500 A
- Minimum Overload Relay Current Setting: 125 A
- Trip Class: 5E/30E
- Maximum Voltage Rating: 500V AC
- NEMA Size: Not Applicable
Specifications
| Part Number | LR9G500 |
| Brand | Schneider Electric |
| Item | Overload Relay |
| Auxiliary Contact Form | 1NO/1NC |
| Maximum Overload Relay Current Setting | 500 A |
| Minimum Overload Relay Current Setting | 125 A |
| Trip Class | 5E/30E |
| Maximum Voltage Rating | 500V AC |
| NEMA Size | Not Applicable |
| Number of Poles | 3 |
| Reset Type | Auto, Manual |
| Mounting Style | Direct To Contactor |
| Terminal Connection Type Box | Lugs |
| Compatible with Series | TeSys Giga |
| Relay Style | IEC |
| Overload Protection Type | Electronic |
| Phase | Single |
| UPC | 3606481912565 |
Description

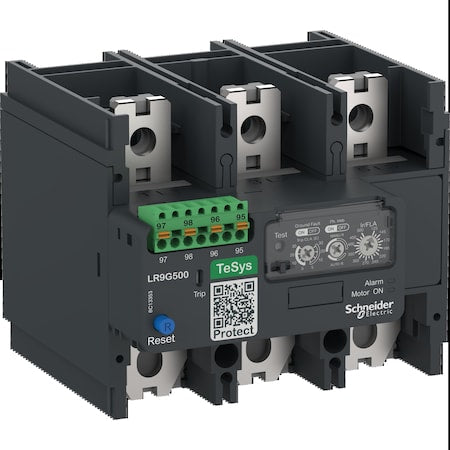

The Schneider Electric LR9G500 is an electronic overload relay with a 1NO/1NC auxiliary contact form and three poles. It has a minimum current setting of 125 A and a maximum current setting of 500 A, with a maximum voltage rating of 500V AC. This IEC relay offers a trip class of 5E/30E, auto or manual reset, and mounts directly to a contactor for use with the TeSys Giga series.
Confirm the part number against your existing unit or equipment before ordering to ensure correct fit.
