- Maximum Voltage Rating: 690V AC
- Ambient Air Temperature For Storage: -55-80°C
- Phase Failure Sensitivity: phase difference > 40% 3-3 s IEC 60947-4-1
- Ambient Air Temperature For Operation: -25-70°C IEC 60255-8
- Rated Insulation Voltage: power circuit 1000 V || signalling circuit 690 V
- Rated Operational Voltage: 690 V power circuit || 660 V signalling circuit
Specifications
| Part Number | LR9D32 |
| Brand | Schneider Electric |
| Auxiliary Contact Form | 1NC/1NO |
| Minimum Overload Relay Current Setting | 6.4 A |
| Maximum Overload Relay Current Setting | 32 A |
| Trip Class | 5/10/20/30 |
| Overload Protection Type | Thermal |
| Depth | 79.9 mm |
| Body Height - Relay | 2.85 in |
| Height | 72.5 mm |
| Width | 45 mm |
| Body Height | 2.85 in |
| Item | Overload Relay |
| Maximum Voltage Rating | 690V AC |
| Standards | CCC, CSA, CSA C22.2, GB/T 14048.4, IEC 60947-4-1, Product CULus, TÜV, UL 60947-4-1 |
| Separate Mounting | Yes |
| Trip Class - Overload | 10, 20, 30, 5 |
| Number of Poles | 3 |
| Frame / Series / Class / Code | Series LRD |
| Sensing Method | Thermal |
| Features | China RoHS Regulation, Circularity Profile, Environmental Disclosure, EU RoHS Directive, Green Premium Product, Mercury Free, REACh free of SVHC, REACh Regulation, RoHS Exemption Information, Toxic Heavy Metal Free |
| Use With - Contactors and Starters | Mfr. Series LC1D09 to LC1D32 Contactors |
| Ambient Air Temperature For Storage | -55-80°C |
| Product Compatibility | LC1D09 || LC1D25 || LC1D32 || LC1D38 || LC1D12 || LC1D18 |
| Tightening Torque | control circuit 0.8 N.m screw clamp terminals || power circuit 3.1 N.m screw clamp terminals |
| Connections - Terminals | control circuit screw clamp terminals 1 2.5-2.5 mm² solid or flexible - without cable end || power circuit screw clamp terminals 1 16-16 mm² solid or flexible - without cable end |
| Product Certifications | IECEE CB Scheme || UL || CSA || CCC |
| Associated Fuse Rating | 5 A gG signalling circuit || 5 A BS signalling circuit |
| Phase Failure Sensitivity | phase difference > 40% 3-3 s IEC 60947-4-1 |
| Thermal Protection Adjustment Range | 6.4-32 A |
| Relay Application | motor protection |
| Power Consumption In W | 300 mW |
| Control Type | Red push-button stop and manual reset || White 2 microswitches adjustable trip class || Red knob automatic reset || Gray dial full-load current adjustment |
| Time Range | 1.5 to 4 min - automatic reset time |
| Ambient Air Temperature For Operation | -25-70°C IEC 60255-8 |
| Mechanical Robustness | vibrations 10 to 150 Hz6 Gn IEC 60068-2-6 || shocks 11 ms15 gn IEC 60068-2-7 |
| Electromagnetic Compatibility | surge withstand 2 kV common mode IEC 61000-4-5 || resistance to electrostatic discharge 8 kV IEC 61000-4-2 || immunity to radiated radio-electrical interference 10 V/m IEC 61000-4-3 || immunity to fast transients 2 kV IEC 61000-4-4 |
| Product Or Component Type | electronic thermal overload relay |
| Operating Altitude | 6561.68 ft (2000 m) without derating |
| Dielectric Strength | 6 kV 50 Hz IEC 60255-5 |
| Thermal Overload Class | class 5-30 |
| Tripping Threshold | 1.25 In IEC 60947-4-1 |
| Range | TeSys |
| Device Short Name | LR9D |
| Product Name | TeSys LRD |
| Reset Type | Auto, Manual |
| Mounting Style | Direct To Contactor |
| Compatible with Series | TeSys Deca, TeSys LRD |
| Relay Style | IEC |
| Rated Insulation Voltage | power circuit 1000 V || signalling circuit 690 V |
| Conventional Free Air Thermal Current | 5 A signalling circuit |
| Rated Operational Voltage | 690 V power circuit || 660 V signalling circuit |
| IP Rating | IP20 |
| Trip Clss | 5/10/20/30 |
Description

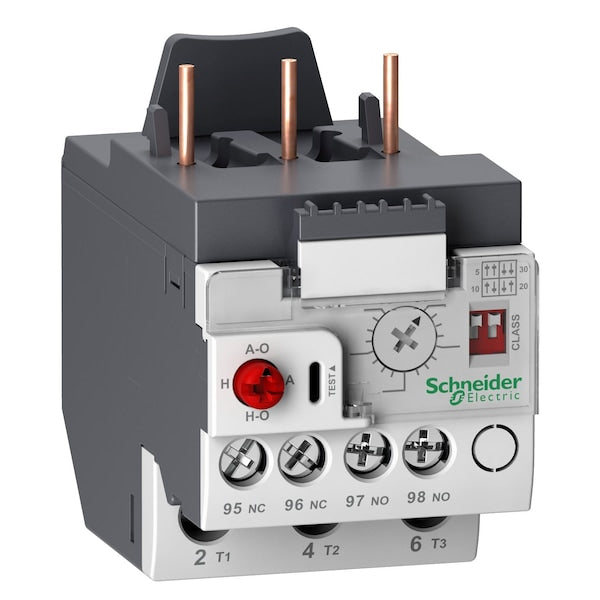

The Schneider Electric LR9D32 is a Series LRD thermal overload relay. It protects motors from overload by monitoring current and opening the control circuit when the current exceeds the set range of 6.4 to 32 A. This relay has a maximum voltage rating of 690V AC and complies with standards including IEC 60947-4-1, UL 60947-4-1, and CSA C22.2.
