- Maximum Voltage Rating: 690V AC
- Phase Failure Sensitivity: yes IEC 60947-4-1
- Network Frequency: <= 400 Hz
- Ambient Air Temperature For Storage: -40-70°C
- Ambient Air Temperature For Operation: -20-55°C without derating IEC 60947 || -30-60°C with derating IEC 60947
- Maximum Operating Temperature: 131 Degrees F
Specifications
| Part Number | LR2K0308 |
| Brand | Schneider Electric |
| Auxiliary Contact Form | 1NC/1NO |
| Minimum Overload Relay Current Setting | 1.8 A |
| Maximum Overload Relay Current Setting | 2.6 A |
| Trip Class | 10A |
| Overload Protection Type | Thermal |
| Width | 1.77 |
| Depth | 2.28 |
| Overall Height - Relay | 2.28 in |
| Body Height - Relay | 2.28 in |
| Height | 2.56" |
| Overall Height | 2.28 in |
| Body Height | 2.28 in |
| Item | Overload Relay |
| Maximum Voltage Rating | 690V AC |
| Standards | BS 4941, IEC 60947, NF C 63-650, REACH, RoHS, VDE 0660 |
| For Use With | TeSys K AC or DC IEC Contactor |
| Sensing Method | Bimetallic |
| Use With - Contactors and Starters | LC7K, LP1K, LP4K Contactors, Mfr. Series LC1K |
| Trip Class - Overload | 10 |
| Features | Single Phase Sensitivity; Differential |
| Number of Poles | 3 |
| Starter Type | IEC |
| Operating Altitude | 6561.68 ft (2000 m) without derating |
| Power Dissipation Per Pole | 2 W |
| Phase Failure Sensitivity | yes IEC 60947-4-1 |
| Connections - Terminals | screw clamp terminals 1 1.5-4 mm²solid || screw clamp terminals 2 1.5-4 mm²solid || screw clamp terminals 1 0.75-4 mm²flexible without cable end || screw clamp terminals 2 0.75-4 mm²flexible without cable end || screw clamp terminals 1 0.34-2.5 mm²flexible with cable end || screw clamp terminals 2 0.34-1.5 mm²flexible with cable end |
| Product Name | TeSys LRK |
| Product Compatibility | LP4K || LC1K || LC7K || LP1K |
| Mechanical Robustness | shocks NO contact10 Gn for 11 ms IEC 60068-2-27 || shocks NC contact10 Gn for 11 ms IEC 60068-2-27 || vibrations NO contact2 Gn, 5 to 300 Hz IEC 60068-2-6 || vibrations NC contact2 Gn, 5 to 300 Hz IEC 60068-2-6 |
| Associated Fuse Rating | 6 A gG signalling circuit VDE 0660 || 6 A gG signalling circuit IEC 60947 |
| Network Frequency | <= 400 Hz |
| Control Type | Red push-button trip test function || Blue push-button stop and manual reset || selector switch manual or automatic reset |
| Local Signalling | trip indicator Yellow) |
| Thermal Protection Adjustment Range | 1.8-2.6 A |
| Flame Retardance | V1 conforming to UL 94 || requirement 2 conforming to NF F 16-101 || requirement 2 conforming to NF F 16-102 |
| Fire Resistance | 850°C IEC 60695-2-1 |
| Relay Application | motor protection |
| Range | TeSys |
| Protective Treatment | TC IEC 60068 || TC DIN 50016 |
| Thermal Overload Class | class 10A IEC 60947-4-1 |
| Product Or Component Type | differential thermal overload relay |
| Device Short Name | LR2K |
| Network Type | DC || AC |
| Ambient Air Temperature For Storage | -40-70°C |
| Product Certifications | UL || CSA || UKCA |
| Ambient Air Temperature For Operation | -20-55°C without derating IEC 60947 || -30-60°C with derating IEC 60947 |
| Tightening Torque | 1.3 N.m screw clamp terminals Philips No 2 || 1.3 N.m screw clamp terminals flat Ø 6 mm || 1.3 N.m screw clamp terminals pozidriv No 2 |
| Compatible with Series | TeSys Deca, TeSys K |
| Relay Style | IEC |
| IP Rating | IP22 |
| Maximum Operating Temperature | 131 Degrees F |
| Mounting Style | Direct To Contactor |
| Minimum Operating Temperature | -4 Degrees F |
| Reset Type | Auto, Manual |
| Terminal Connection Type | Screw Clamp Terminals |
| Conventional Free Air Thermal Current | 6 A signalling circuit |
| Rated Insulation Voltage | power circuit 690 V BS 4941 || power circuit 690 V IEC 60947 || power circuit 750 V VDE 0110 group C || power circuit 600 V CSA C22.2 No 14 |
| Rated Operational Voltage | <= 690 V power circuit || 690 V AC AC-15 signalling circuit || 250 V DC DC-13 signalling circuit |
| Trip Clss | 10A |
Description

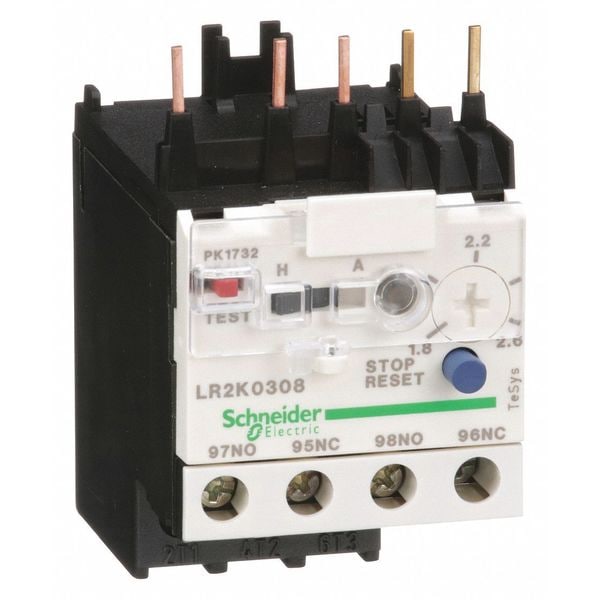

The Schneider Electric LR2K0308 is a thermal overload relay for use with a TeSys K AC or DC IEC contactor. This type of relay protects a motor from overload by monitoring current and tripping when it exceeds the set range of 1.8 to 2.6 A, with a maximum voltage rating of 690V AC. It complies with standards BS 4941, IEC 60947, NF C 63-650, REACH, RoHS, and VDE 0660, and features single phase sensitivity and differential protection.
