- Temp. Control Range: 65 Degrees to 85 Degrees F
- Air Connection Outside Diameter: 1/4 in
- Max. Air Pressure: 25 psi
- Max. Ambient Temp.: 135 Degrees F
- Temperature Scale: Celsius/Fahrenheit
- Maximum Control Temperature: 135 Degrees F
Specifications
| Part Number | LP916A1134 |
| Brand | Honeywell |
| Temp. Control Range | 65 Degrees to 85 Degrees F |
| Sensing Bulb Length | 9 5/8 in |
| Element Type | Bulb |
| Air Consumption | 19 scim |
| Air Connections | 1/4 in Barb |
| Width | 3 3/4 in |
| Capillary Length | 36 in |
| Height | 4 3/4 in |
| Depth | 3 in |
| Sensing Bulb Dia. | 3/8 in |
| Overall Width | 3 3/4 in |
| Overall Height | 4 3/4 in |
| Air Connection Outside Diameter | 1/4 in |
| Overall Depth | 3 in |
| Mounting Direction/Capillary Length | Vertical, 36 in |
| Item | Pneumatic Temperature Transmitter |
| Max. Air Pressure | 25 psi |
| Includes | 304528A Bag Assembly, Mounting Bracket |
| Max. Ambient Temp. | 135 Degrees F |
| Action Type - Pneumatic Thermostats | Direct Acting |
| Sensor Type | Remote Bulb |
| Type | 2-Pipe, Single Temp., Liquid Filled, Remote Bulb |
| Throttling Range | 3.5 Degrees F |
| Application | Heat Only |
| Action Type | Direct Acting |
| Temperature Scale | Celsius/Fahrenheit |
| Fitting Connection | Barbed 1/4 in |
| Sensor Location | Remote |
| Number of Pipes | 2 |
| Thermostat Action | Direct |
| Number of Pipes/Air Flow Output | 2 Pipes, High Volume |
| Maximum Control Temperature | 135 Degrees F |
| Pneumatic Thermostat Type | Remote-Bulb Sensor |
| Air Flow Output | High Volume |
| Compatible System Type | Pneumatic Valves and Damper Actuators |
| Number of Dials | Single |
| Pneumatic Thermostat Type/Indexing Switch | Remote-Bulb Sensor |
| Temperature Settings | Single Temperature |
| Mounting Direction/Includes Cover | Vertical, Yes |
| Mounting Direction | Vertical |
| Maximum Air Pressure | 25 psig |
| Dial Configuration | Warm/Cold |
| Manual Indexing Switch | No |
| Temperature Control Range | 65 Degrees to 85 Degrees F |
Description

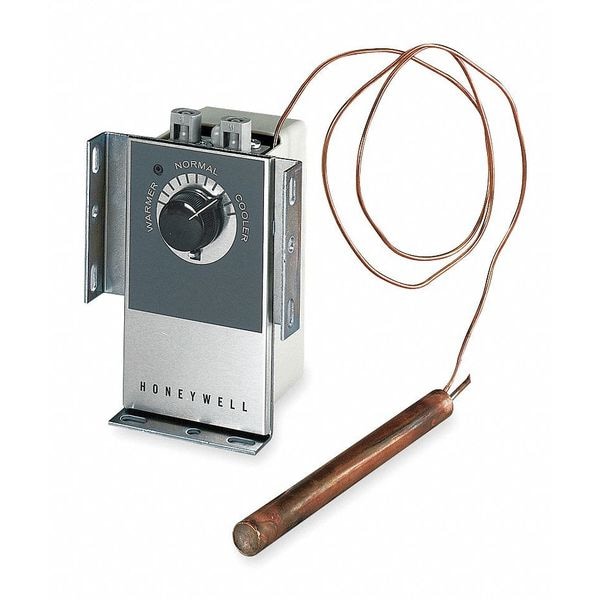

The Honeywell LP916A1134 is a direct-acting pneumatic temperature transmitter. It functions as a sensor that converts temperature changes into a variable air pressure signal, operating within a 65 to 85 degrees Fahrenheit temperature control range and a maximum air pressure of 25 psi. The unit includes a 304528A bag assembly and mounting bracket.
