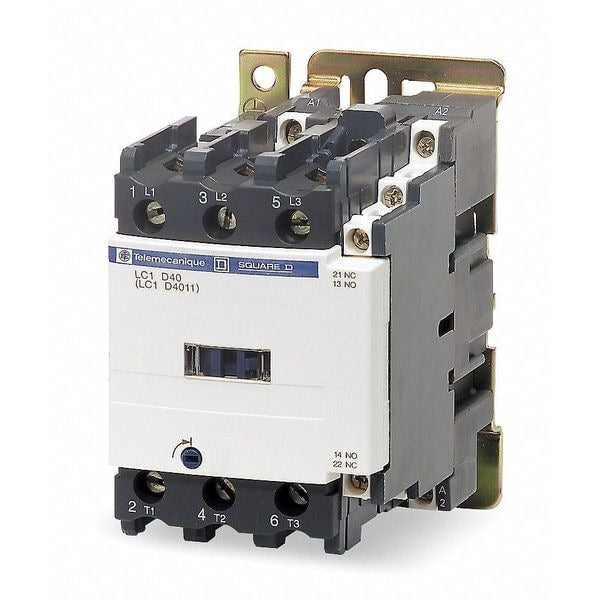

LC1D65AB7 Schneider Electric 3-Pole Non-Reversing Magnetic Contactor, 1NO/1NC, 24V AC

SKU: LC1D65AB7

Great reasons to buy from us:

  • Image of Quality Guranteed

    Quality

    Quality Guranteed
  • Image of Fast Shipping

    Free shipping

    Fast Shipping
  • Image of Great Value

    Fast Shipping

    Great Value
  • Image of Secure Online Ordering

    Free shipping

    Secure Online Ordering
  • Coil Voltage: 24V AC
  • Enclosure NEMA Rating: No Enclosure
  • HP @ 3 Phase - 575V: 50 hp
  • HP @ 1 Phase - 230V: 10
  • Signalling Circuit Frequency: 25 to 400 Hz
  • Overvoltage Category: CAT III

Specifications

Part Number LC1D65AB7
Brand Schneider Electric
Auxiliary Contact Form 1NC/1NO
Coil Voltage 24V AC
Number of Poles 3
Reversing Capability Non-Reversing
Terminal Connection Type Screw Clamp
Working Height Up to 9842.52 ft
Overall Width 2.17 in
Overall Depth 4.72 in
Overall Height 4.8 in
Item IEC Magnetic Contactor
Number of Auxillary Contacts 2
Standards CCC, CSA, CSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, GOST, IEC 60335-1, IEC 60947-4-1, IEC 60947-5-1, UL 508, UL Listed
Enclosure NEMA Rating No Enclosure
HP @ 3 Phase - 575V 50 hp
HP @ 1 Phase - 230V 10
Reversing No
Includes Everlink Power Connections
Series TeSys Deca
Hold VA 13 VA (at 60 Hz 20°C), 15 VA (at 50 Hz 20°C)
Max. Operating Watts 11 kW (at 400V AC 50/60 Hz AC-4), 18.5 kW (at 220 to 230V AC 50/60 Hz AC-3), 30 kW (at 380 to 400V AC 50/60 Hz AC-3), 37 kW (at 500V AC 50/60 Hz AC-3), 37 kW (at 660 to 690V AC 50/60 Hz AC-3), 18.5 kW (at 220 to 230V AC 50/60 Hz AC-3e), 30 kW (at 380 to 400V AC 50/60 Hz AC-3e), 37 kW (at 500V AC 50/60 Hz AC-3e), 37 kW (at 660 to 690V AC 50/60 Hz AC-3e)
Signalling Circuit Frequency 25 to 400 Hz
IP Rating IP20
Application Motor Control, Resistive Load
Overvoltage Category CAT III
Environmental Attributes Mercury Free, PVC Free, Toxic Heavy Metal Free, Pollution Degree 3
Rated Breaking Capacity 1000 A @ 440V
Fire Rating UL 94 V1
Impulse Withstand Voltage 6 kV
Impedance 1.5 mOhm
Vibration Resistance 4 G (Contactor Closed), 2 G (Contactor Open)
Mechanical Durability 6 Mcycles
Insulation Resistance Range Greater Than 10 MOhms (Signalling Circuit)
Non-Overlap Time 1.5 ms
Rated Insulation Volts 600/690V
Features Without Built-In Suppressor Module
Control Circuit Voltage Limits Drop-Out AC: 0.3 to 0.6 Uc (at -40 to 70°C 50/60 Hz); Operational AC: 0.8 to 1.1 Uc (at -40 to 60°C 50 Hz), 0.85 to 1.1 Uc (at -40 to 60°C 60 Hz), 1 to 1.1 Uc (at 60 to 70°C 50/60 Hz)
Rated Short-Time Withstand Current 520 A (at 40°C for 10 s Power Circuit), 900 A (at 40°C for 1 s Power Circuit), 110 A (at 40°C for 10 min Power Circuit), 260 A (at 40°C for 1 min Power Circuit), 100 A (For 1 s Signalling Circuit), 120 A (For 500 ms Signalling Circuit), 140 A (For 100 ms Signalling Circuit)
Shock Resistance 10 G for 11 ms (Contactor Open), 15 G for 11 ms (Contactor Closed)
Electrical Durability 1.4 Mcycles (80 A, AC-1, Less than 440 V); 1.45 Mcycles (65 A, AC-3, Less than 440 V); 1.45 Mcycles (65 A, AC-3e, Less than 440 V)
Operating Time 4 to 19 ms (Opening), 12 to 26 ms (Closing)
Watts Loss 4 to 5W
Fuse Amps 10 A (Signalling Circuit), 125 A (Type 1 Power Circuit), 125 A (Type 2 Power Circuit)
Net Weight 0.86 kg
Inrush VA 140 VA (at 60 Hz 20°C), 160 VA (at 50 Hz 20°C)
Tightening Torque 1.7 Nm (Control Circuit), 2.5 to 8 Nm (Power Circuit)
Rated Making Capacity 140 A (AC Signalling Circuit), 250 A (DC Signalling Circuit), 1000 A @ 440V (Power Circuit)
Operating Speed 3600 cycles per hr
Switching Current 5 mA (Signalling Circuit)
Includes Protective Cover Yes
Switching Voltage 17 V (Signalling Circuit)
Full Load Current - Resistive 80 A
Embedded Surge Suppressor No
Horsepower @ Three Phase - 240V AC 20 hp
Number of Normally Open Main Contacts 3
Phase Three
NEMA Enclosure Rating No Enclosure
Maximum Voltage Rating 690V AC
Minimum Operating Temperature -40 Degrees F
Maximum Operating Temperature 140 Degrees F
Electrical Operating Durability 1,400,000, 1,450,000
Horsepower @ Three Phase - 600V AC 50 hp
Resistance Properties Fire Resistant, Insulation Resistant
Horsepower @ Three Phase - 208V AC 20 hp
Mounting Style DIN Rail, Plate
Horsepower @ Three Phase - 480V AC 40 hp
Frequency 50/60 Hz
Contactor Style IEC
Mechanical Operating Durability 6,000,000
Includes Auxiliary Contacts Yes
Horsepower @ Single Phase - 240V AC 10 hp
Horsepower @ Single Phase - 120V AC 5 hp
Full Load Current - Inductive 65 A
Protective Treatment THIEC 60068-2-30
Inrush Power in VA 140 VA 60 Hz cos phi 0.75 (at 68°F (20°C)); 160 VA 50 Hz cos phi 0.75 (at 68°F (20°C))
Conventional Free Air Thermal Current 10 A (at 140°F (60°C)) for signalling circuit; 80 A (at 140°F (60°C)) for power circuit
Contact Compatibility M2
Power Dissipation Per Pole 9.6 W AC-1; 6.3 W AC-3; 6.3 W AC-3e
Heat Dissipation 4 to 5 W at 50/60 Hz
Safety Reliability Level B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1; B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
Auxiliary Contacts Type Mechanically linked 1 NO + 1 NC IEC 60947-5-1; Mirror contact 1 NC IEC 60947-4-1
Rated Operational Voltage Power circuit Less than or Equal to 690 V AC 25 to 400 Hz; Power circuit Less than or Equal to 300 V DC
Maximum Operating Rate 3600 cyc/h 140°F (60°C)
Contactor Application Motor control; Resistive load
Compatibility Code LC1D
Operating Altitude 0 to 9842.52 ft (0 to 3000 m)
Fire Resistance 1562°F (850°C) IEC 60695-2-1
Control Circuit Type AC 50/60 Hz standard
Pole Contact Composition 3 NO
Utilisation Category AC-4; AC-1; AC-3; AC-3e
Climatic Withstand IACS E10 exposure to damp heat; IEC 60947-1 Annex Q category D exposure to damp heat
Control Circuit Voltage 24 V AC 50/60 Hz
Protective Cover With
Rated Operational Current 80 A (at Less than 140°F (60°C)) at Less than or Equal to 440 V AC AC-1 for power circuit; 65 A (at Less than 140°F (60°C)) at Less than or Equal to 440 V AC AC-3 for power circuit; 65 A (at Less than 140°F (60°C)) at Less than or Equal to 440 V AC AC-3e for power circuit
Mechanical Robustness Vibrations contactor open 2 Gn, 5 to 300 Hz); Vibrations contactor closed 4 Gn, 5 to 300 Hz); Shocks contactor closed 15 Gn for 11 ms); Shocks contactor open 10 Gn for 11 ms)
Pollution Degree 3
Ambient Air Temperature For Operation -40 to 140°F (-40 to 60°C); 140 to 158°F (60 to 70°C) with derating
