- Coil Voltage: 24V DC
- HP @ 3 Phase - 575V: 15 hp
- HP @ 1 Phase - 230V: 3
- Enclosure NEMA Rating: No Enclosure
- Overvoltage Category: CAT III
- Impulse Withstand Voltage: 6 kV
Specifications
| Part Number | LC1D18BD |
| Brand | Square D |
| Auxiliary Contact Form | 1NC/1NO |
| Coil Voltage | 24V DC |
| Number of Poles | 3 |
| Reversing Capability | Non-Reversing |
| Terminal Connection Type | Screw Clamp |
| Working Height | Up to 9842.52 ft |
| Overall Width | 1.77 in |
| Overall Depth | 3.74 in |
| Overall Height | 3.03 in |
| Item | IEC Magnetic Contactor |
| Number of Auxillary Contacts | 2 |
| Standards | BV, CCC, CSA, CSA C22.2 No 14, DNV, EN 60947-4-1, EN 60947-5-1, GL, GOST, IEC 60335-1, IEC 60947-4-1, IEC 60947-5-1, LROS, RINA, UKCA, UL 508, UL Listed |
| Reversing | No |
| HP @ 3 Phase - 575V | 15 hp |
| Frame / Series / Class / Code | TeSys |
| HP @ 1 Phase - 230V | 3 |
| Enclosure NEMA Rating | No Enclosure |
| Series | TeSys Deca |
| Shock Resistance | 15 G for 11 ms (Contactor Closed), 10 G for 11 ms (Contactor Open) |
| Overvoltage Category | CAT III |
| Rated Insulation Volts | 600/690V |
| Impulse Withstand Voltage | 6 kV |
| Rated Short-Time Withstand Current | 145 A (at 40°C for 10 s Power Circuit), 240 A (at 40°C for 1 s Power Circuit), 40 A (at 40°C for 10 min Power Circuit), 84 A (at 40°C for 1 min Power Circuit), 100 A (For 1 s Signalling Circuit), 120 A (For 500 ms Signalling Circuit), 140 A (For 100 ms Signalling Circuit) |
| Fire Rating | UL 94 V1 |
| Operating Time | 53.55 to 72.45 ms (Closing), 16 to 24 ms (Opening) |
| IP Rating | IP20 |
| Impedance | 2.5 mOhm |
| Switching Current | 5 mA (Signalling Circuit) |
| Rated Making Capacity | 140 A (AC Signalling Circuit), 250 A (DC Signalling Circuit), 300 A @ 440V (Power Circuit) |
| Rated Breaking Capacity | 300 A @ 440V |
| Features | With Integral Suppression Device |
| Electrical Durability | 1.65 Mcycles (18 A, AC-3, Less than 440 V); 1 Mcycles (32 A, AC-1, Less than 440 V); 1.65 Mcycles (18 A, AC-3e, Less than 440 V) |
| Mechanical Durability | 30 Mcycles |
| Application | Motor Control, Resistive Load |
| Control Circuit Voltage Limits | Drop-Out DC: 0.1 to 0.25 Uc (at -40 to 70°C), Operational DC: 0.7 to 1.25 Uc (at -40 to 60°C), 1 to 1.25 Uc (at 60 to 70°C) |
| Fuse Amps | 10 A (Signalling Circuit), 50 A (Type 1 Power Circuit), 35 A (Type 2 Power Circuit) |
| Signalling Circuit Frequency | 25 to 400 Hz |
| Vibration Resistance | 4 G (Contactor Closed), 2 G (Contactor Open) |
| Switching Voltage | 17 V (Signalling Circuit) |
| Non-Overlap Time | 1.5 ms |
| Tightening Torque | 1.7 Nm |
| Max. Operating Watts | 4 kW (at 220 to 230V AC 50/60 Hz AC-3), 7.5 kW (at 380 to 400V AC 50/60 Hz AC-3), 9 kW (at 415 to 440V AC 50/60 Hz AC-3), 10 kW (at 500V AC 50/60 Hz AC-3), 10 kW (at 660 to 690V AC 50/60 Hz AC-3), 4 kW (at 400V AC 50/60 Hz AC-4), 4 kW (at 220 to 230V AC 50/60 Hz AC-3e), 7.5 kW (at 380 to 400V AC 50/60 Hz AC-3e), 9 kW (at 415 to 440V AC 50/60 Hz AC-3e), 10 kW (at 500V AC 50/60 Hz AC-3e), 10 kW (at 660 to 690V AC 50/60 Hz AC-3e) |
| Insulation Resistance Range | Greater Than 10 MOhms (Signalling Circuit) |
| Environmental Attributes | Mercury Free, PVC Free, Pollution Degree 3 |
| Operating Speed | 3600 cycles per hr |
| Includes Protective Cover | Yes |
| Net Weight | 0.49 kg |
| Contactor Style | IEC |
| Horsepower @ Three Phase - 600V AC | 15 hp |
| Horsepower @ Three Phase - 240V AC | 5 hp |
| Includes Auxiliary Contacts | Yes |
| Mechanical Operating Durability | 30,000,000 |
| Horsepower @ Single Phase - 240V AC | 3 hp |
| Horsepower @ Three Phase - 480V AC | 10 hp |
| NEMA Enclosure Rating | No Enclosure |
| Embedded Surge Suppressor | Yes |
| Number of Normally Open Main Contacts | 3 |
| Frequency | 50/60 Hz |
| Resistance Properties | Fire Resistant, Insulation Resistant |
| Electrical Operating Durability | 1,000,000, 1,650,000 |
| Maximum Voltage Rating | 690V AC |
| Maximum Operating Temperature | 140 Degrees F |
| Horsepower @ Single Phase - 120V AC | 1 hp |
| Mounting Style | DIN Rail, Plate |
| Horsepower @ Three Phase - 208V AC | 5 hp |
| Minimum Operating Temperature | -40 Degrees F |
| Phase | Three |
| Full Load Current - Inductive | 18 A |
| Protective Cover | With |
| Rated Operational Voltage | Power circuit Less than or Equal to 690 V AC 25 to 400 Hz; Power circuit Less than or Equal to 300 V DC |
| Pole Contact Composition | 3 NO |
| Protective Treatment | THIEC 60068-2-30 |
| Inrush Power in W | 5.4 W 68°F (20°C) |
| Fire Resistance | 1562°F (850°C) IEC 60695-2-1 |
| Compatibility Code | LC1D |
| Time Constant | 28 ms |
| Hold-In Power Consumption in W | 5.4 W 68°F (20°C) |
| Operating Altitude | 0 to 9842.52 ft (0 to 3000 m) |
| Power Dissipation Per Pole | 2.5 W AC-1; 0.8 W AC-3; 0.8 W AC-3e |
| Safety Reliability Level | B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1; B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1 |
| Pollution Degree | 3 |
| Contact Compatibility | M4 |
| Conventional Free Air Thermal Current | 10 A (at 140°F (60°C)) for signalling circuit; 32 A (at 140°F (60°C)) for power circuit |
| Contactor Application | Motor control; Resistive load |
| Control Circuit Type | DC standard |
| Utilisation Category | AC-4; AC-1; AC-3; AC-3e |
| Rated Operational Current | 18 A (at Less than 140°F (60°C)) at Less than or Equal to 440 V AC AC-3 for power circuit; 32 A (at Less than 140°F (60°C)) at Less than or Equal to 440 V AC AC-1 for power circuit; 18 A (at Less than 140°F (60°C)) at Less than or Equal to 440 V AC AC-3e for power circuit |
| Mechanical Robustness | Vibrations contactor open 2 Gn, 5 to 300 Hz); Vibrations contactor closed 4 Gn, 5 to 300 Hz); Shocks contactor open 10 Gn for 11 ms); Shocks contactor closed 15 Gn for 11 ms) |
| Climatic Withstand | IACS E10 exposure to damp heat; IEC 60947-1 Annex Q category D exposure to damp heat |
| Maximum Operating Rate | 3600 cyc/h 140°F (60°C) |
| Auxiliary Contacts Type | Mechanically linked 1 NO + 1 NC IEC 60947-5-1; Mirror contact 1 NC IEC 60947-4-1 |
| Full Load Current - Resistive | 32 A |
| Ambient Air Temperature For Operation | -40 to 140°F (-40 to 60°C); 140 to 158°F (60 to 70°C) with derating |
Description

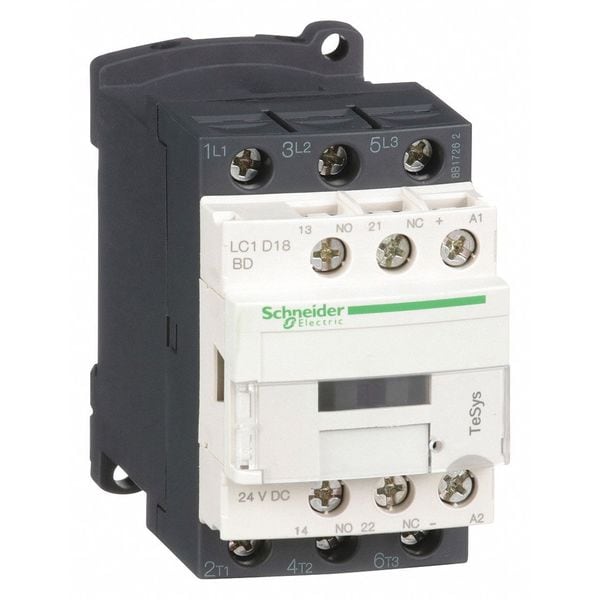

The Square D LC1D18BD is an IEC magnetic contactor from the TeSys series. This contactor uses a 24V DC coil to open and close electrical circuits, rated for 600VAC and 18 amps. It is UL Listed and certified to standards including EN 60947-4-1 and CSA C22.2 No 14, with screw clamp terminals and two auxiliary contacts.
