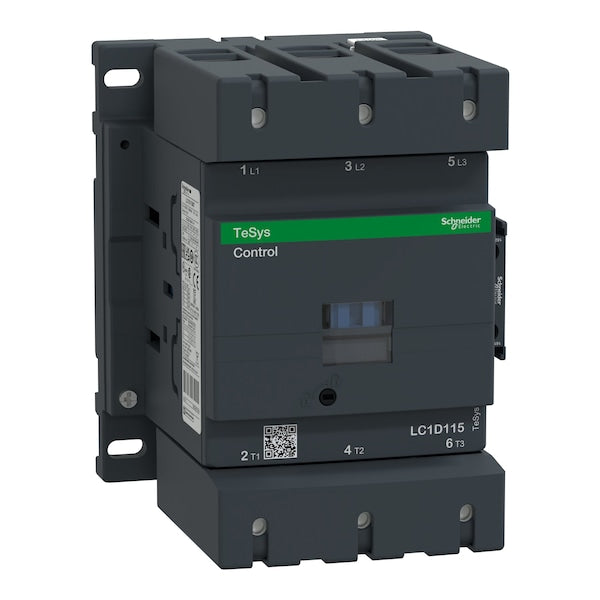

LC1D115G7 Square D IEC magnetic contactor, 3-pole, 1NC/1NO, 120V AC coil

SKU: LC1D115G7
Your Price:
$899.00
Add to wishlist
Checkout Secure

Great reasons to buy from us:

  • Image of Quality Guranteed

    Quality

    Quality Guranteed
  • Image of Fast Shipping

    Free shipping

    Fast Shipping
  • Image of Great Value

    Fast Shipping

    Great Value
  • Image of Secure Online Ordering

    Free shipping

    Secure Online Ordering
  • Coil Voltage: 120V AC
  • Enclosure NEMA Rating: No Enclosure
  • HP @ 3 Phase - 575V: 100 hp
  • Rated Making Capacity: 1260 A @ 440V (Power Circuit), 140 A (AC Signalling Circuit), 250 A (DC Signalling Circuit)
  • Impulse Withstand Voltage: 8 kV
  • Rated Breaking Capacity: 1100 A @ 440V

Specifications

Part Number LC1D115G7
Brand Square D
Auxiliary Contact Form 1NC/1NO
Coil Voltage 120V AC
Number of Poles 3
Reversing Capability Non-Reversing
Terminal Connection Type Screw Clamp
Working Height Up to 9842.52 ft
Overall Width 4.72 in
Overall Height 6.22 in
Overall Depth 5.35 in
Item IEC Magnetic Contactor
Number of Auxillary Contacts 2
Standards BV, CCC, CSA, CSA C22.2 No 14, DNV, EN 60947-4-1, EN 60947-5-1, GL, GOST, IEC 60947-4-1, IEC 60947-5-1, LROS, RINA, UKCA, UL 508, UL Listed
Frame / Series / Class / Code TeSys
Enclosure NEMA Rating No Enclosure
Reversing No
HP @ 3 Phase - 575V 100 hp
Series TeSys Deca
Non-Overlap Time 1.5 ms
Rated Making Capacity 1260 A @ 440V (Power Circuit), 140 A (AC Signalling Circuit), 250 A (DC Signalling Circuit)
Application Motor Control, Resistive Load
Includes Protective Cover Yes
Tightening Torque 1.2 Nm (Control Circuit), 12 Nm (Power Circuit)
Vibration Resistance 4 G (Contactor Closed), 2 G (Contactor Open)
Impulse Withstand Voltage 8 kV
Switching Current 5 mA (Signalling Circuit)
Impedance 0.6 mOhm
Rated Breaking Capacity 1100 A @ 440V
IP Rating IP20
Electrical Durability 0.8 Mcycles (200 A, AC-1, Less than 440 V); 0.95 Mcycles (115 A, AC-3, Less than 440 V); 0.95 Mcycles (115 A, AC-3e, Less than 440 V)
Fire Rating UL 94 V1
Max. Operating Watts 30 kW (at 220 to 230V AC 50/60 Hz AC-3), 55 kW (at 380 to 400V AC 50/60 Hz AC-3), 59 kW 415 to (at 440V AC 50/60 Hz AC-3), 75 kW (at 500V AC 50/60 Hz AC-3), 80 kW (at 660 to 690V AC 50/60 Hz AC-3), 65 kW (at 1000V AC 50/60 Hz AC-3), 18.5 kW (at 400V AC 50/60 Hz AC-4), 30 kW (at 220 to 230V AC 50/60 Hz AC-3e), 55 kW (at 380 to 400V AC 50/60 Hz AC-3e), 59 kW 415 to (at 440V AC 50/60 Hz AC-3e), 75 kW (at 500V AC 50/60 Hz AC-3e), 80 kW (at 660 to 690V AC 50/60 Hz AC-3e), 65 kW (at 1000V AC 50/60 Hz AC-3e)
Operating Speed 2400 cycles per hr
Features Built-In Bi-Directional Peak Limiting Diode Suppressor
Mechanical Durability 8 Mcycles
Control Circuit Voltage Limits Drop-Out AC: 0.3 to 0.5 Uc (at -40 to 70°C 50/60 Hz); Operational AC: 0.8 to 1.15 Uc (at -40-55°C 50/60 Hz), 1 to 1.15 Uc (at 55-70°C 50/60 Hz)
Rated Short-Time Withstand Current 250 A (at 40°C for 10 min Power Circuit), 550 A (at 40°C for 1 min Power Circuit), 950 A (at 40°C for 10 s Power Circuit), 1100 A (at 40°C for 1 s Power Circuit), 100 A (For 1 s Signalling Circuit), 120 A (For 500 ms Signalling Circuit), 140 A (For 100 ms Signalling Circuit)
Operating Time 6 to 20 ms (Opening), 20 to 50 ms (Closing)
Fuse Amps 250 A (Type 1 Power Circuit), 200 A (Type 2 Power Circuit), 10 A (Signalling Circuit)
Signalling Circuit Frequency 25 to 400 Hz
Watts Loss 3 to 8W
Net Weight 2.5 kg
Shock Resistance 15 G for 11 ms (Contactor Closed), 6 G for 11 ms (Contactor Open)
Insulation Resistance Range Greater Than 10 MOhms (Signalling Circuit)
Rated Insulation Volts 600/1000V (Power Circuit), 600/690V (Signalling Circuit)
Environmental Attributes Mercury Free, PVC Free, Pollution Degree 3
Hold VA 2 to 18 VA
Switching Voltage 17 V (Signalling Circuit)
Inrush VA 280 to 350 VA
Overvoltage Category CAT III
Contactor Style IEC
Maximum Operating Temperature 140 Degrees F
Horsepower @ Three Phase - 240V AC 40 hp
Minimum Operating Temperature -40 Degrees F
Mechanical Operating Durability 8,000,000
Horsepower @ Three Phase - 480V AC 75 hp
Phase Three
Horsepower @ Three Phase - 208V AC 30 hp
Embedded Surge Suppressor Yes
Number of Normally Open Main Contacts 3
Resistance Properties Fire Resistant
Full Load Current - Inductive 115 A
Horsepower @ Three Phase - 600V AC 100 hp
Maximum Voltage Rating 1000V AC
Horsepower @ Single Phase - 240V AC 2 hp
Full Load Current - Resistive 200 A
Mounting Style DIN Rail, Plate
NEMA Enclosure Rating No Enclosure
Includes Auxiliary Contacts Yes
Electrical Operating Durability 800,000, 950,000
Frequency 50/60 Hz
Rated Operational Current 200 A (at Less than 140°F (60°C)) at Less than or Equal to 440 V AC AC-1 for power circuit; 115 A (at Less than 140°F (60°C)) at Less than or Equal to 440 V AC AC-3 for power circuit; 115 A (at Less than 140°F (60°C)) at Less than or Equal to 440 V AC AC-3e for power circuit
Mechanical Robustness Vibrations contactor open 2 Gn, 5 to 300 Hz); Vibrations contactor closed 4 Gn, 5 to 300 Hz); Shocks contactor closed 15 Gn for 11 ms); Shocks contactor open 6 Gn for 11 ms)
Operating Altitude 0 to 9842.52 ft (0 to 3000 m)
Maximum Operating Rate 2400 cyc/h 140°F (60°C)
Climatic Withstand IACS E10 exposure to damp heat; IEC 60947-1 Annex Q category D exposure to damp heat
Safety Reliability Level B10d = 684932 cycles contactor with nominal load EN/ISO 13849-1; B10d = 10000000 cycles contactor with mechanical load EN/ISO 13849-1
Compatibility Code LC1D
Contactor Application Resistive load; Motor control
Auxiliary Contacts Type Mechanically linked 1 NO + 1 NC IEC 60947-5-1; Mirror contact 1 NC IEC 60947-4-1
Pole Contact Composition 3 NO
Power Dissipation Per Pole 24 W AC-1; 7.9 W AC-3; 7.9 W AC-3e
Contact Compatibility M13
Conventional Free Air Thermal Current 200 A (at 140°F (60°C)) for power circuit
Inrush Power in VA 280 to 350 VA 60 Hz cos phi 0.8 (at 68°F (20°C)); 280 to 350 VA 50 Hz cos phi 0.8 (at 68°F (20°C))
Protective Cover With
Control Circuit Type AC 50/60 Hz
Rated Operational Voltage Power circuit Less than or Equal to 1000 V AC 25 to 400 Hz; Power circuit Less than or Equal to 300 V DC
Pollution Degree 3
Protective Treatment THIEC 60068-2-30
Fire Resistance 1562°F (850°C) IEC 60695-2-1
Utilisation Category AC-1; AC-4; AC-3; AC-3e
Control Circuit Voltage 120 V AC 50/60 Hz
Heat Dissipation 3 to 8 W at 50/60 Hz
Ambient Air Temperature For Operation -40 to 140°F (-40 to 60°C); 140 to 158°F (60 to 70°C) with derating

Description

The Square D LC1D115G7 is an IEC magnetic contactor from the TeSys series. This contactor uses a 120V AC coil and screw-clamp terminals to switch electrical loads, with a 115A three-phase rating and 100 hp at 575V. It includes one normally open and one normally closed auxiliary contact, and is certified to standards including UL 508, CSA C22.2 No 14, IEC 60947-4-1, and CCC.

Shipping This item ships to USA

Processing Time:

All orders at Pro Replacement Parts are processed and shipped within 1-2 business days. For orders placed before 12 PM EST, we offer same-day shipping whenever possible. We aim to ensure that your order reaches you as quickly as possible.

Delivery Timeframe:

Most orders are delivered within 3–5 business days via UPS Ground. This is an estimated delivery timeframe, not a guarantee. Timing can vary by product availability, destination, holidays, weather, and carrier delays. Freight shipments may take longer.

Expedited Shipping:

UPS 2nd Day Air is available for eligible orders at checkout. Rates and estimated delivery dates are calculated at checkout. Two-business-day transit begins after shipment; processing time still applies.

Shipping Methods:

  • Items exceeding 50” in width or 70 lbs in weight are shipped via Freight Carrier. You will be contacted by the carrier to schedule a delivery time.
  • Items under 50” in width and 70 lbs in weight will be shipped via UPS or FedEx as a small package service.

Freight Shipments:

Freight shipments are delivered curbside in residential areas. You may need assistance to move the package indoors, or you can unbox the shipment and carry each piece inside individually. While some drivers may help move a shipment into a garage or carport, this is not guaranteed. For Inside Delivery requests, please contact us at the time of your order (additional fees apply). Email: support@proreplacementparts.com

Inspection and Damage:

Upon delivery, please inspect the carton and contents for any damage. If you find any damage, document it on the driver's delivery receipt and contact us immediately at support@proreplacementparts.com no later than 24 hours from the delivery time. We cannot accept responsibility for damage that is not noted on the driver's delivery receipt at the time of delivery.

Order Cancellations:

All order cancellations must be requested within 24 hours of placing the order. After this period, our standard return policy will take effect.

Thank you for choosing Pro Replacement Parts. We are dedicated to providing you with the best service and ensuring your orders are delivered in a timely and efficient manner. If you have any questions or need further assistance, please don't hesitate to contact us.

Wide Selection of Brands: At our store, you'll find an extensive range of electric motors from top brands in the industry. We carefully select our inventory to ensure that you have access to the best and most reliable products on the market. Whether you need a motor for an industrial machine, a household appliance, or a specialized project, we have something for everyone.

Customer-Centric Service: We believe in putting our customers first. Our team is committed to providing you with personalized service and support throughout your buying journey. From helping you choose the right motor for your needs to answering any queries you have after purchase, we're here to assist you every step of the way.

Competitive Pricing: We strive to offer our high-quality electric motors at competitive prices. Our goal is to provide you with the best value, ensuring that you get a top-performing motor without breaking the bank. Plus, our regular deals and promotions mean that you can save even more when you shop with us.

Reliable Shipping and Handling: While we don't offer same-day shipping, we understand the importance of timely delivery. That's why we work with reliable shipping partners to ensure that your order is processed, shipped, and delivered efficiently. You can trust us to get your electric motor to you in excellent condition and within a reasonable timeframe.

Knowledgeable Support: Our team is knowledgeable about the wide range of electric motors we offer. We can provide you with detailed information and specifications for each product, helping you make an informed decision. If you have any questions or need advice, our experts are just a call or email away.

Your purchase is covered by the Manufacturer’s Limited Warranty.

For return/refund information, please visit our Returns & Refunds page.

Description

  • Coil Voltage: 120V AC
  • Enclosure NEMA Rating: No Enclosure
  • HP @ 3 Phase - 575V: 100 hp
  • Rated Making Capacity: 1260 A @ 440V (Power Circuit), 140 A (AC Signalling Circuit), 250 A (DC Signalling Circuit)
  • Impulse Withstand Voltage: 8 kV
  • Rated Breaking Capacity: 1100 A @ 440V

Specifications

Part Number LC1D115G7
Brand Square D
Auxiliary Contact Form 1NC/1NO
Coil Voltage 120V AC
Number of Poles 3
Reversing Capability Non-Reversing
Terminal Connection Type Screw Clamp
Working Height Up to 9842.52 ft
Overall Width 4.72 in
Overall Height 6.22 in
Overall Depth 5.35 in
Item IEC Magnetic Contactor
Number of Auxillary Contacts 2
Standards BV, CCC, CSA, CSA C22.2 No 14, DNV, EN 60947-4-1, EN 60947-5-1, GL, GOST, IEC 60947-4-1, IEC 60947-5-1, LROS, RINA, UKCA, UL 508, UL Listed
Frame / Series / Class / Code TeSys
Enclosure NEMA Rating No Enclosure
Reversing No
HP @ 3 Phase - 575V 100 hp
Series TeSys Deca
Non-Overlap Time 1.5 ms
Rated Making Capacity 1260 A @ 440V (Power Circuit), 140 A (AC Signalling Circuit), 250 A (DC Signalling Circuit)
Application Motor Control, Resistive Load
Includes Protective Cover Yes
Tightening Torque 1.2 Nm (Control Circuit), 12 Nm (Power Circuit)
Vibration Resistance 4 G (Contactor Closed), 2 G (Contactor Open)
Impulse Withstand Voltage 8 kV
Switching Current 5 mA (Signalling Circuit)
Impedance 0.6 mOhm
Rated Breaking Capacity 1100 A @ 440V
IP Rating IP20
Electrical Durability 0.8 Mcycles (200 A, AC-1, Less than 440 V); 0.95 Mcycles (115 A, AC-3, Less than 440 V); 0.95 Mcycles (115 A, AC-3e, Less than 440 V)
Fire Rating UL 94 V1
Max. Operating Watts 30 kW (at 220 to 230V AC 50/60 Hz AC-3), 55 kW (at 380 to 400V AC 50/60 Hz AC-3), 59 kW 415 to (at 440V AC 50/60 Hz AC-3), 75 kW (at 500V AC 50/60 Hz AC-3), 80 kW (at 660 to 690V AC 50/60 Hz AC-3), 65 kW (at 1000V AC 50/60 Hz AC-3), 18.5 kW (at 400V AC 50/60 Hz AC-4), 30 kW (at 220 to 230V AC 50/60 Hz AC-3e), 55 kW (at 380 to 400V AC 50/60 Hz AC-3e), 59 kW 415 to (at 440V AC 50/60 Hz AC-3e), 75 kW (at 500V AC 50/60 Hz AC-3e), 80 kW (at 660 to 690V AC 50/60 Hz AC-3e), 65 kW (at 1000V AC 50/60 Hz AC-3e)
Operating Speed 2400 cycles per hr
Features Built-In Bi-Directional Peak Limiting Diode Suppressor
Mechanical Durability 8 Mcycles
Control Circuit Voltage Limits Drop-Out AC: 0.3 to 0.5 Uc (at -40 to 70°C 50/60 Hz); Operational AC: 0.8 to 1.15 Uc (at -40-55°C 50/60 Hz), 1 to 1.15 Uc (at 55-70°C 50/60 Hz)
Rated Short-Time Withstand Current 250 A (at 40°C for 10 min Power Circuit), 550 A (at 40°C for 1 min Power Circuit), 950 A (at 40°C for 10 s Power Circuit), 1100 A (at 40°C for 1 s Power Circuit), 100 A (For 1 s Signalling Circuit), 120 A (For 500 ms Signalling Circuit), 140 A (For 100 ms Signalling Circuit)
Operating Time 6 to 20 ms (Opening), 20 to 50 ms (Closing)
Fuse Amps 250 A (Type 1 Power Circuit), 200 A (Type 2 Power Circuit), 10 A (Signalling Circuit)
Signalling Circuit Frequency 25 to 400 Hz
Watts Loss 3 to 8W
Net Weight 2.5 kg
Shock Resistance 15 G for 11 ms (Contactor Closed), 6 G for 11 ms (Contactor Open)
Insulation Resistance Range Greater Than 10 MOhms (Signalling Circuit)
Rated Insulation Volts 600/1000V (Power Circuit), 600/690V (Signalling Circuit)
Environmental Attributes Mercury Free, PVC Free, Pollution Degree 3
Hold VA 2 to 18 VA
Switching Voltage 17 V (Signalling Circuit)
Inrush VA 280 to 350 VA
Overvoltage Category CAT III
Contactor Style IEC
Maximum Operating Temperature 140 Degrees F
Horsepower @ Three Phase - 240V AC 40 hp
Minimum Operating Temperature -40 Degrees F
Mechanical Operating Durability 8,000,000
Horsepower @ Three Phase - 480V AC 75 hp
Phase Three
Horsepower @ Three Phase - 208V AC 30 hp
Embedded Surge Suppressor Yes
Number of Normally Open Main Contacts 3
Resistance Properties Fire Resistant
Full Load Current - Inductive 115 A
Horsepower @ Three Phase - 600V AC 100 hp
Maximum Voltage Rating 1000V AC
Horsepower @ Single Phase - 240V AC 2 hp
Full Load Current - Resistive 200 A
Mounting Style DIN Rail, Plate
NEMA Enclosure Rating No Enclosure
Includes Auxiliary Contacts Yes
Electrical Operating Durability 800,000, 950,000
Frequency 50/60 Hz
Rated Operational Current 200 A (at Less than 140°F (60°C)) at Less than or Equal to 440 V AC AC-1 for power circuit; 115 A (at Less than 140°F (60°C)) at Less than or Equal to 440 V AC AC-3 for power circuit; 115 A (at Less than 140°F (60°C)) at Less than or Equal to 440 V AC AC-3e for power circuit
Mechanical Robustness Vibrations contactor open 2 Gn, 5 to 300 Hz); Vibrations contactor closed 4 Gn, 5 to 300 Hz); Shocks contactor closed 15 Gn for 11 ms); Shocks contactor open 6 Gn for 11 ms)
Operating Altitude 0 to 9842.52 ft (0 to 3000 m)
Maximum Operating Rate 2400 cyc/h 140°F (60°C)
Climatic Withstand IACS E10 exposure to damp heat; IEC 60947-1 Annex Q category D exposure to damp heat
Safety Reliability Level B10d = 684932 cycles contactor with nominal load EN/ISO 13849-1; B10d = 10000000 cycles contactor with mechanical load EN/ISO 13849-1
Compatibility Code LC1D
Contactor Application Resistive load; Motor control
Auxiliary Contacts Type Mechanically linked 1 NO + 1 NC IEC 60947-5-1; Mirror contact 1 NC IEC 60947-4-1
Pole Contact Composition 3 NO
Power Dissipation Per Pole 24 W AC-1; 7.9 W AC-3; 7.9 W AC-3e
Contact Compatibility M13
Conventional Free Air Thermal Current 200 A (at 140°F (60°C)) for power circuit
Inrush Power in VA 280 to 350 VA 60 Hz cos phi 0.8 (at 68°F (20°C)); 280 to 350 VA 50 Hz cos phi 0.8 (at 68°F (20°C))
Protective Cover With
Control Circuit Type AC 50/60 Hz
Rated Operational Voltage Power circuit Less than or Equal to 1000 V AC 25 to 400 Hz; Power circuit Less than or Equal to 300 V DC
Pollution Degree 3
Protective Treatment THIEC 60068-2-30
Fire Resistance 1562°F (850°C) IEC 60695-2-1
Utilisation Category AC-1; AC-4; AC-3; AC-3e
Control Circuit Voltage 120 V AC 50/60 Hz
Heat Dissipation 3 to 8 W at 50/60 Hz
Ambient Air Temperature For Operation -40 to 140°F (-40 to 60°C); 140 to 158°F (60 to 70°C) with derating

Description

The Square D LC1D115G7 is an IEC magnetic contactor from the TeSys series. This contactor uses a 120V AC coil and screw-clamp terminals to switch electrical loads, with a 115A three-phase rating and 100 hp at 575V. It includes one normally open and one normally closed auxiliary contact, and is certified to standards including UL 508, CSA C22.2 No 14, IEC 60947-4-1, and CCC.
