- Phase: 1
- Voltage: 120/240V
- Voltage Protection Rating: 600V (L-G, L-N, N-G), 900V (L-L)
- Chase Nipple Size: 1/2 in
- Max. Continuing Operating Voltage: 150/300V AC
- Enclosure NEMA Rating: NEMA 4X
Specifications
| Part Number | LBK10 |
| Brand | Supco |
| Mounting Style | Surface |
| Phase | 1 |
| Voltage | 120/240V |
| Number of Poles | 2 |
| Voltage Protection Rating | 600V (L-G, L-N, N-G), 900V (L-L) |
| Length | 4 in |
| Depth | 3 in |
| Width | 3 in |
| Chase Nipple Size | 1/2 in |
| Item | Surge Protection Device |
| Number of Wires | 2 Wires |
| Modes of Protection | L-G, L-L, L-N, N-G |
| Nominal Discharge Current | 10 kA |
| Short Circuit Current Rating | 10kA |
| Modular | No |
| Filtering | No |
| Max. Continuing Operating Voltage | 150/300V AC |
| Enclosure NEMA Rating | NEMA 4X |
| IP Rating | IP66 |
| Enclosure Material | Plastic |
| Wire Gauge | 18 AWG |
| Includes | LED Status Indicator |
| Standards | UL 1449 4th Edition, Type 2 |
| Modular / Nonmodular | Nonmodular |
| Noise Attenuation | 0dB |
| UL SPD Type | Type 2 |
| Min. Operating Temp. | -40 Degrees F |
| Color | Clear |
| Max. Operating Temp. | 158 Degrees F |
| System Connection | Parallel |
| Basic Material | Nonmetallic |
| Includes Surge Counter | No |
| Status Indicator | LED Light |
Description

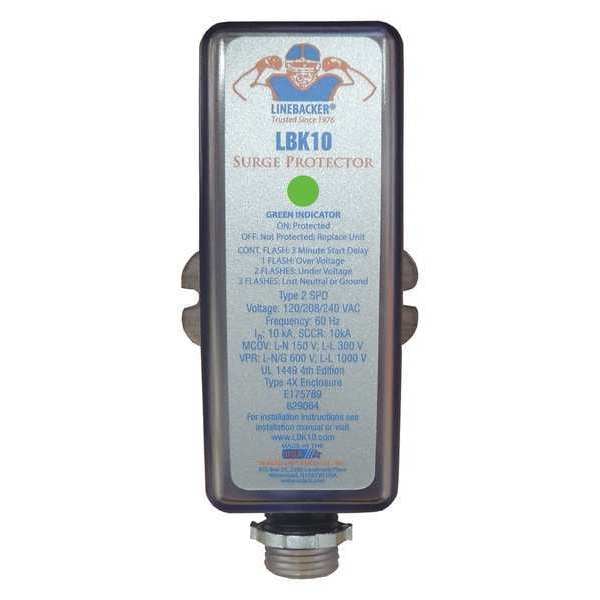

The Supco LBK10 is a Linebacker Surge Arrestor, a 1-phase, 2-pole, 2-wire surge protection device rated for 120/240V. It provides voltage protection with a 600V rating for L-G, L-N, and N-G paths and 900V for L-L, with a 10kA short circuit current rating and a maximum continuous operating voltage of 150/300V AC. The device is housed in a NEMA 4X and IP66-rated enclosure.
