- Input Voltage: 120V AC
- Minimum Control Temperature: 180 Degrees F
- Burner Circuit Voltage Type: Line Voltage, Low Voltage
- Differential Temperature: 15 Degrees F Fixed
- Maximum Control Temperature: 240 Degrees F
Specifications
| Part Number | L8148E1265 |
| Brand | Honeywell |
| Standards | LR95329-1, MBPR2, MP466, UL Listed |
| Includes | Heat-Conductive Compound, Molex Plug |
| Application | High Limit |
| Input Voltage | 120V AC |
| Product Type | Immersion Controller |
| Overall Depth | 3 1/8 in |
| Capillary Tube Length | 4 1/2 in |
| Overall Width | 4 3/8 in |
| Insulation Depth | 1 1/2 in, 3 in |
| Overall Height | 6 1/8 in |
| Item | Immersion Controller |
| Minimum Control Temperature | 180 Degrees F |
| Mounting Orientation | Vertical |
| Auto/Manual Switch Included | Yes |
| Burner Circuit Voltage Type | Line Voltage, Low Voltage |
| Locked Rotor Current @ 240V | 22.2 A |
| Reset Type | Automatic Reset |
| Full Load Current @ 120V AC | 7.4 A |
| Full Load Current @ 240V AC | 3.7 A |
| Differential Temperature | 15 Degrees F Fixed |
| Locked Rotor Current @ 120V | 44.4 A |
| Maximum Control Temperature | 240 Degrees F |
| Contact Form | SPST |
| Number of Switches | 6 |
Description

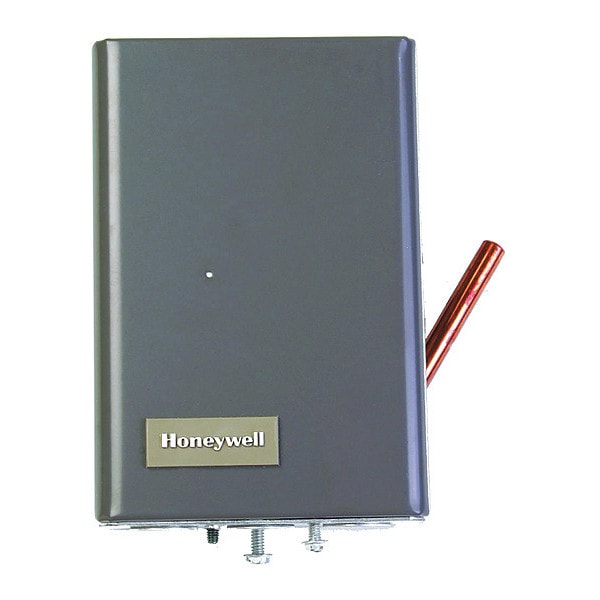

The Honeywell L8148E1265 is an immersion controller and relay. As a dual aquastat relay, it functions as a high-limit controller for a burner circuit, operating at 120V AC input voltage with both line and low voltage burner circuit options. It includes a heat-conductive compound and a Molex plug, and is UL Listed under standards LR95329-1, MBPR2, and MP466, with a minimum control temperature of 180 degrees Fahrenheit.
