- Voltage: 120V AC
- Hz: 60
- Housing Material: Steel
- Phase: 1
- Wheel Material: Polymeric
- Motor RPM: 890
Specifications
| Part Number | L500L |
| Brand | Soler & Palau |
| For Use With | General Ventilation Applications |
| Voltage | 120V AC |
| Housing Width | 21 1/4 in |
| Speed Control | 4C331 or 6E897 |
| Hz | 60 |
| Discharge Width | 18 1/2 in |
| Housing Length | 12 1/4 in |
| Inlet Width | 18 1/2 in |
| Discharge Height | 4 1/2 in |
| Housing Height | 11 3/4 in |
| Duct Dia. | 10 in |
| Inlet Height | 4 1/2 in |
| Overall Height | 11 3/4 in |
| Overall Width | 21 1/2 in |
| Duct Width | 18 1/2 in |
| Overall Depth | 12 1/4 in |
| Duct Height | 4 1/2 in |
| Profile Height Family | Low |
| Profile Width Family | Double-Wide |
| Item | In-Line Ceiling Exhaust Fan |
| CFM @ 0.500-In. SP | 447 |
| CFM @ 0.125-In. SP | 519 |
| Sones @ 0.125-In. SP @ 5 Ft. | 3.4 |
| CFM @ 1.000-In. SP | 232 |
| Motor Type | Permanent Split Capacitor |
| Watts | 232 W |
| CFM @ 0.250-In. SP | 496 |
| Sones @ 0.100-In. SP @ 5 Ft. | 2.4 |
| Housing Material | Steel |
| CFM @ 0.375-In. SP | 472 |
| Sones @ 0.000-In. SP @ 5 Ft. | 2.4 |
| Phase | 1 |
| Wheel Material | Polymeric |
| Sones @ 0.250-In. SP @ 5 Ft. | 3.7 |
| Motor RPM | 890 |
| Motor Enclosure | Open |
| Max. Inlet Temp. | 104 Degrees F |
| CFM @ 0.625-In. SP | 407 |
| CFM @ 0.000-In. SP | 546 |
| Motor Insulation | Class B |
| CFM @ 0.100-In. SP | 526 |
| CFM @ 0.750-In. SP | 364 |
| Includes | Automatic Backdraft Damper, Mounting Brackets |
| Standards | UL/cUL |
| Full Load Amps | 2.20 |
| Number of Speeds | Variable |
| Exhaust Airflow @ 0.250 in SP | 494 cfm, 496 cfm |
| Sensor Type | None |
| Full Load Current | 2.2 A |
| Exhaust Airflow @ 0.000 in SP | 546 cfm |
| Discharge Direction | Horizontal |
| Duct Shape | Rectangular |
| Noise Level @ 0.250 in SP @ 5 ft | 3.7 sones |
| Grille Material | Plastic |
| Maximum Airflow | 546 cfm |
| Noise Level @ 0.000 in SP @ 5 ft | 2.9 sones |
| Includes Grill | No |
| Vent Design | Ducted |
| Heater | Without Heater |
| Motor Speed | 890 RPM, 990 RPM |
| Exhaust Airflow @ 0.100 in SP | 526 cfm |
| Wattage | 232 W |
| Noise Level @ 0.125 in SP @ 5 ft | 3.4 sones |
| Roomside Installation | No |
| Mounting Orientation | Horizontal, Vertical |
| Maximum Noise Level | 3.4 sones |
| Frequency | 60 Hz |
| Lighted | Without Light |
| Noise Level @ 0.100 in SP @ 5 ft | 2 sones |
| Blower Wheel Material | Polymeric |
| Nameplate Voltage | 120V AC |
| Singlewide / Doublewide | Double-Wide |
| Motor Output Power | 232 W |
| Fan Wattage | 232 W |
Description

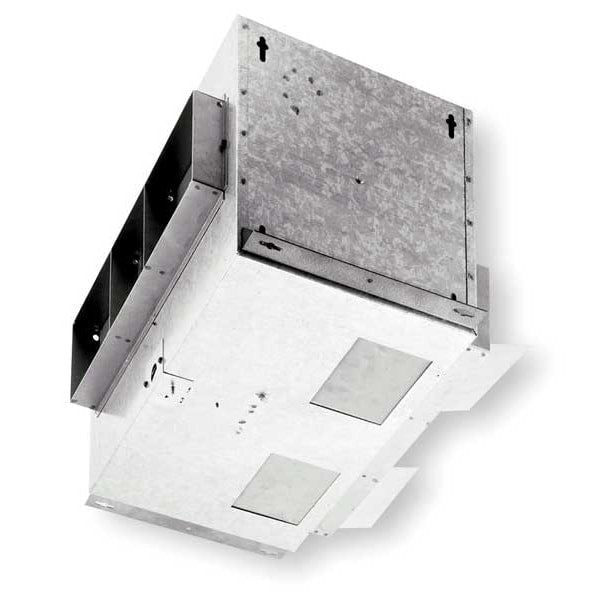

The Soler & Palau L500L is a 120V AC, 60 Hz, 1-phase in-line ceiling exhaust fan with a permanent split capacitor motor. This fan moves air through ductwork for general ventilation applications, using a steel housing and a polymeric wheel.
