- Temp. Range (F): Fan 50 to 200, Limit 100 to 250
- Contact Amp Rating @ 24V: Fan 2.0 Limit 2.0
- Inductive Amps @ 120V: 8 A
- Inductive Amps @ 240V: 4 A
- Temperature Differential: 25 Degrees F
- Input Voltage: 120V AC, 240V AC
Specifications
| Part Number | L4064B2236 |
| Brand | Honeywell |
| Temp. Range (F) | Fan 50 to 200, Limit 100 to 250 |
| Type | Adjustable Temp, Auto Reset |
| Switch Type | SPDT |
| Depth | 1 19/32 in |
| Width | 3 in |
| Height | 4 9/32 in |
| Element Insertion Length | 8 in |
| Overall Height | 4 1/4 in |
| Overall Width | 3 in |
| Insertion Length | 8 in |
| Overall Depth | 1 5/8 in |
| Item | Fan and Limit Control |
| Element Type | Helical Bi-Metal |
| Contact Amp Rating @ 24V | Fan 2.0 Limit 2.0 |
| Inductive Amps @ 120V | 8 A |
| Switch Action | Fan - Close on Rise, Limit - Open on Rise |
| Differential | Fan Adj. 22 Degrees F, Limit Fixed 25 Degrees F |
| Inductive Amps @ 240V | 4 A |
| Contact Rating (AC) | 24 A @ 240V, 4 A @ 240V, 42 A @ 240V, 7 A @ 240V, Fan (AFL) 14 A @ 120V, Fan (ALR) 84 A @ 120V, Limit (AFL) 8 A @ 120V, Limit (ALR) 48 A @ 120V |
| Temperature Differential | 25 Degrees F |
| Input Voltage | 120V AC, 240V AC |
| Differential Adjustability | Fixed |
| Maximum Operating Temperature | 190 Degrees F |
| Application | Fan and Limit Control |
| Element Material | Bi-Metal |
| Fan Minimum Control Temperature | 65 Degrees F |
| Limit Minimum Control Temperature | 100 Degrees F |
| Reset Type | Automatic Reset |
| Product Type | Fan and Limit Control |
| Standards | LR1622, MP466 |
| Fan Maximum Control Temperature | 215 Degrees F |
| Limit Maximum Control Temperature | 250 Degrees F |
| Minimum Operating Temperature | -40 Degrees F |
| Contact Form | SPDT |
| Mounting | Plenum Mount |
| Maximum Temperature Differential Setting | 25 Degrees F |
| Switch Opening Temperature | 50 Degrees F, 250 Degrees F |
| Switch Closing Temperature | 100 Degrees F, 200 Degrees F |
Description

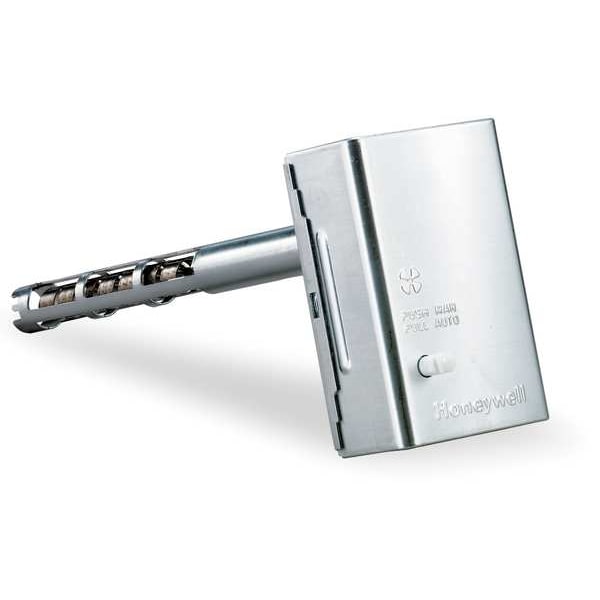

The Honeywell L4064B2236 is an adjustable-temperature, auto-reset fan and limit control with a helical bi-metal element. This type of switch regulates system operation by activating the fan and providing a high-limit safety shutoff based on sensed temperature. It features a SPDT switch with a fan temperature range of 50 to 200°F and a limit range of 100 to 250°F, rated at 2.0 amps for both fan and limit contacts at 24V, with inductive ratings of 8 amps at 120V and 4 amps at 240V.
