- Burner Circuit Voltage Type: Millivolt
- Maximum Control Temperature: 270 Degrees F
- Minimum Control Temperature: 130 Degrees F
Specifications
| Part Number | L4008E1156 |
| Brand | Resideo |
| Includes | 5 1/2 ft Capillary, Heat-Conductive Compound |
| Standards | LR95329-1, MBPR2, MP466, UL Listed |
| Application | High Limit |
| Product Type | High Limit Controller |
| Locked Rotor Current @ 120V | 48 A |
| Overall Depth | 2 1/8 in |
| Overall Height | 5 5/8 in |
| Capillary Tube Length | 66 in |
| Overall Width | 2 in |
| Item | High Limit Controller |
| Burner Circuit Voltage Type | Millivolt |
| Switch Action | Breaks |
| Maximum Control Temperature | 270 Degrees F |
| Number of Switches | 1 |
| Full Load Current @ 120V AC | 8 A |
| Auto/Manual Switch Included | Yes |
| Full Load Current @ 240V AC | 5.1 A |
| Sensor Location | Remote |
| Minimum Control Temperature | 130 Degrees F |
| Reset Type | Manual Reset |
| Locked Rotor Current @ 240V | 30.6 A |
| Contact Form | SPST |
| Mounting Orientation | Horizontal, Vertical |
Description

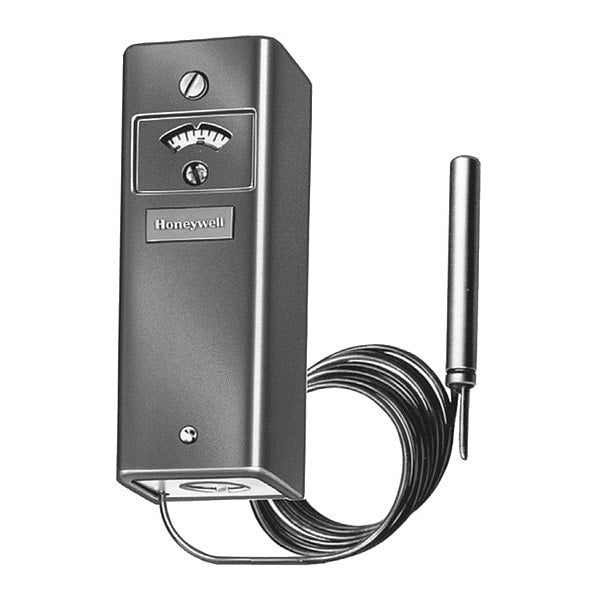

The Resideo L4008E1156 is a high limit controller, specifically a remote bulb high limit aquastat with manual reset and break-on-rise function. This type of part monitors temperature and opens the burner circuit on a temperature rise to prevent overheating, operating on millivolt voltage. It is a UL Listed high limit controller with a maximum control temperature of 270 degrees Fahrenheit, and includes a 5 1/2 ft capillary and heat-conductive compound.
