- Temp. Range: 100 Degrees to 240 Degrees F
- Bulb Size: 3/8 X 2 7/8
- Spud Size: 3/4 a 14 in NPT
- Probe Diameter: 3/8 in
- Locked Rotor Amps @ 240V: 30.6 A
- Locked Rotor Amps @ 120V: 48 A
Specifications
| Part Number | L4006E1117 |
| Brand | Honeywell |
| Temp. Range | 100 Degrees to 240 Degrees F |
| Differential | Manual Reset |
| Application | High Limit |
| Mounting | Horizontal or Vertical |
| Bulb Size | 3/8 X 2 7/8 |
| Insulation Depth | 15 in |
| Width | 2 in |
| Height | 8 5/8 in |
| Spud Size | 3/4 a 14 in NPT |
| Depth | 2 1/8 in |
| Overall Width | 2 in |
| Capillary Tube Length | 1 1/2 in |
| Overall Depth | 2 1/8 in |
| Probe Length | 2 7/8 in |
| Overall Height | 5 5/8 in |
| Probe Diameter | 3/8 in |
| Item | Immersion Controller |
| System Switching | SPST |
| Agency Compliance | UL & CSA |
| Locked Rotor Amps @ 240V | 30.6 A |
| Requires | 1 1/2 in Insulation |
| Includes | 3/4 in Insertion Well |
| Locked Rotor Amps @ 120V | 48 A |
| Full Load Amps @ 120VAC | 8 A |
| Type | Boiler-Mounted, High Limit, Manual Reset |
| Full Load Amps @ 240VAC | 13 A |
| Product Type | Immersion Controller |
| Number of Switches | 1 |
| Locked Rotor Current @ 120V | 48 A |
| Standards | LR95329-1, MBPR2, MP466, UL Listed |
| Locked Rotor Current @ 240V | 30.6 A |
| Sensor Location | Remote |
| Auto/Manual Switch Included | Yes |
| Full Load Current @ 120V AC | 8 A |
| Maximum Control Temperature | 240 Degrees F |
| Switch Action | Breaks |
| Mounting Orientation | Horizontal, Vertical |
| Minimum Control Temperature | 100 Degrees F |
| Full Load Current @ 240V AC | 5.1 A |
| Reset Type | Manual Reset |
| Contact Form | SPST |
Description

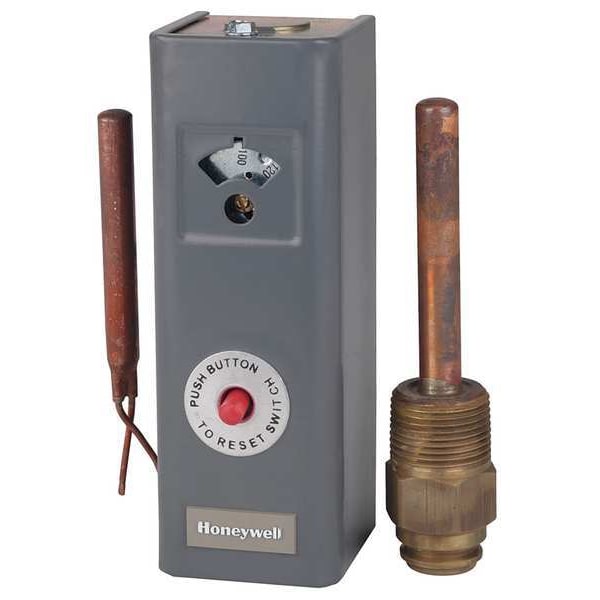

The Honeywell L4006E1117 is a boiler-mounted, manual reset high-limit immersion controller. This aquastat controller monitors water temperature and shuts down the boiler if the temperature exceeds the set point, with a range of 100°F to 240°F. It includes a 3/4-inch insertion well and is rated for 8 full-load amps at 120 VAC, with locked-rotor amps of 48 A at 120V and 30.6 A at 240V.
