- Nominal Pipe Size: 1 in
- Center Line Pipe Center Size: 5-1/8 in
- Orifice Diameter: 1 3/8 in
- Voltage: 120/60V AC
- Seal Material: NBR
- Operating Pressure Differential - Maximum: 1.5 psi Air/Inert Gas
Specifications
| Part Number | K3A562V |
| Brand | Asco |
| For Media | Fuel Oil, Gas |
| Valve Ways | 2-Way |
| Valve Starting Configuration | Normally Closed |
| Nominal Pipe Size | 1 in |
| Inlet Connection Type | NPTF |
| Overall Height | 6-3/32 in |
| Center Line Pipe Center Size | 5-1/8 in |
| Overall Width | 3-11/16 in |
| Overall Length | 4 in |
| Orifice Diameter | 1 3/8 in |
| Outlet Connection Type | NPTF |
| Voltage | 120/60V AC |
| Valve Type | High Pressure |
| Seal Material | NBR |
| Operating Pressure Differential - Maximum | 1.5 psi Air/Inert Gas |
| Operating Pressure Differential - Minimum | 0 psi |
| Item | Solenoid Valve |
| Standards | CSA, FM, UL Listed |
| Ambient Temp. Range | -40 Degrees to 160 Degrees F |
| Electrical Connections | 7/8 in Knockouts |
| BtuH | 787,200 BtuH |
| Body Material | Aluminum |
| Coil Insulation Class | H |
| Application | For Control of Commercial and Industrial Gas Burners |
| Coil Enclosure | With Junction Box |
| Operating Pressure Differential Hot Water - Maximum | Not Rated |
| Includes Seal | Yes |
| Includes Coil | Yes |
| Operating Pressure Differential Water - Maximum | Not Rated |
| Gas Capacity | 787,200 BtuH |
| Ambient Temperature - Maximum | 160 Degrees F |
| Wattage | 20 W |
| Operating Pressure Differential Steam - Maximum | Not Rated |
| Operating Pressure Differential Light Oil - Maximum | Not Rated |
| NEMA Enclosure Rating | 1 |
| Valve Positions | 2-Position |
| Mounting Orientation | Horizontal |
| Response Time | 1 sec |
| Environmental Rating | Indoor, Outdoor |
| Ambient Temperature - Minimum | -40 Degrees F |
| Frequency | 60 Hz |
| Thread Type | NPT |
| Coefficient of Volume (Cv) | 14.6 |
| Fluid Temperature - Maximum | 140 Degrees F |
Description

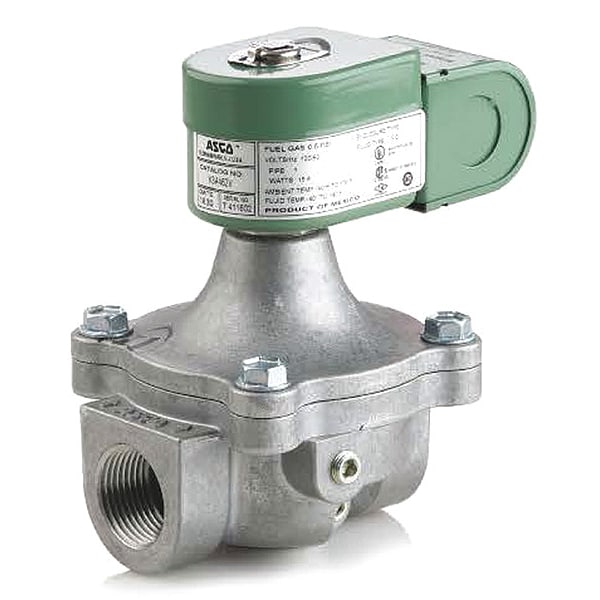

The Asco K3A562V is a 2-way, 2-position, normally closed solenoid valve with 1-inch NPTF connections. It operates on 120/60V AC and is a high-pressure valve with NBR seal material, designed for a maximum operating pressure differential of 1.5 psi on air or inert gas and a minimum of 0 psi. This valve functions as a safety shutoff for gas applications.
