- AC Voltage Rating: 600V AC
- DC Voltage Rating: Not Rated
- Diameter: 4-5/8 in
- Size: Knife-Blade
- Overall Diameter: 1 1/8 in
- Amps: 90A
Specifications
| Part Number | JLS090 |
| Brand | Littelfuse |
| Class | J |
| Series | JLS |
| Speed | Fast-Acting |
| AC Voltage Rating | 600V AC |
| DC Voltage Rating | Not Rated |
| Length | 2-5/8 in |
| Diameter | 4-5/8 in |
| Length (Straight Wireway) | 4 5/8 in |
| Size | Knife-Blade |
| Overall Diameter | 1 1/8 in |
| Overall Length | 4 5/8 in |
| Overall Depth | 1 in |
| Overall Width | 1 in |
| Amps | 90A |
| Visual Indication | Non-Indicating |
| Interrupt Rating | 200kA at 600V AC |
| Body Style | Blade |
| Body Material | Melamine |
| Equivalent Brand and Series | Bussmann JKS, Littelfuse JLS, Mersen A4J |
| Equivalent Series | A4J, JKS, JLS |
| Fits Fuse Block Style | Non-Rejection |
| Compatible Fuse Block Series | LFJ |
| Item | UL Class Fuse |
| Fuse Speed | Fast Acting |
| Standards | CE, CSA Certified, QPL-W-F-1814, UL 248-8 Class J, UL Listed |
| Element | Single |
| Rejection / Nonrejection | Nonrejection |
| Current | 90 A |
| Interrupt Rating - AC | 200 kA |
Description

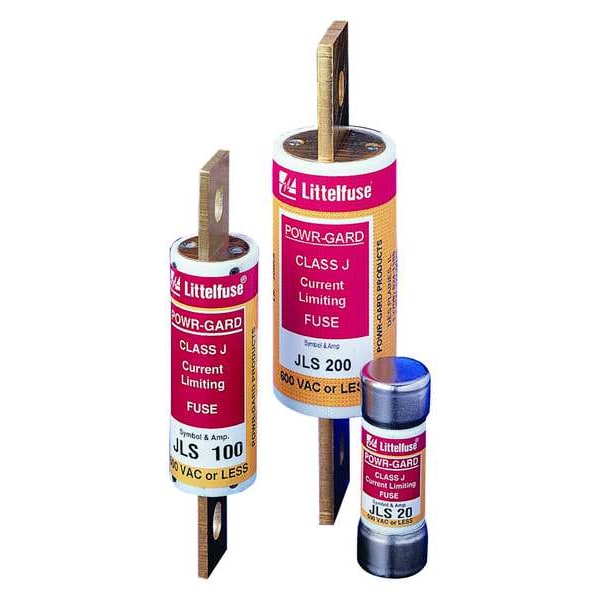

The Littelfuse JLS090 is a 90A, 600V AC, fast-acting, non-indicating UL Class J fuse. As a current-limiting fuse, it provides overcurrent protection with a 200kA interrupting rating at 600V AC. It is a direct replacement for equivalent series including Bussmann JKS, Littelfuse JLS, and Mersen A4J fuses.
