- Voltage: 80 to 300
- Phase: Single
- Frequency: 50/60 Hz
- Contact Rating (Amps): 10 A
- NC Output (Amps): 10 A
- Hz: 50/60
Specifications
| Part Number | ICM492D |
| Brand | Icm |
| Application | HVACR |
| Voltage | 80 to 300 |
| Phase | Single |
| Frequency | 50/60 Hz |
| Contact Rating (Amps) | 10 A |
| Width | 3 1/4 in |
| Depth | 3 in |
| Height | 1 3/8 in |
| Overall Height | 1 3/8 in |
| Overall Length | 3 in |
| Overall Width | 3 3/16 in |
| Item | Line Voltage Monitor |
| Agency Compliance | cUL, UL |
| Control Volts | 24-240 |
| NC Output (Amps) | 10 A |
| % Volts Unbalance | 5 to 25, Adj. |
| Memory Storage | 5-Fault |
| Type | Manual or Automatic Reset |
| Includes | LCD Display |
| Time Delay | 0 to 12 min |
| Response Time (ms) | 0.1-10 sec |
| For Use With | 1 Phase Equipment |
| Hz | 50/60 |
| Monitors | High/Low Voltage, Voltage Unbalance |
| N.O. Output (Amps) | 10 A |
| Temp. Rating (F) | -40 to 167 |
| Standards | cUL |
| Display Type | LCD |
| Normally Closed Output Current | 10 A |
| Operating Temperature - Maximum | 158 Degrees F |
| Minimum Voltage Measurement | 80V AC |
| True RMS | True-RMS Measuring |
| Reset Type | Automatic Reset |
| Maximum Control Voltage | 240V AC |
| Minimum Contol Voltage | 18V AC |
| Operating Temperature - Minimum | -40 Degrees F |
| Monitored Measurements | Line Voltage |
| Contact Form | SPDT |
| Normally Open Output Current | 10 A |
| Percentage Volts Unbalance | 5 to 25%, Adj. |
| Delay Type | Adjustable Anti-Short Cycle |
| Maximum Voltage Measurement | 300V AC |
Description

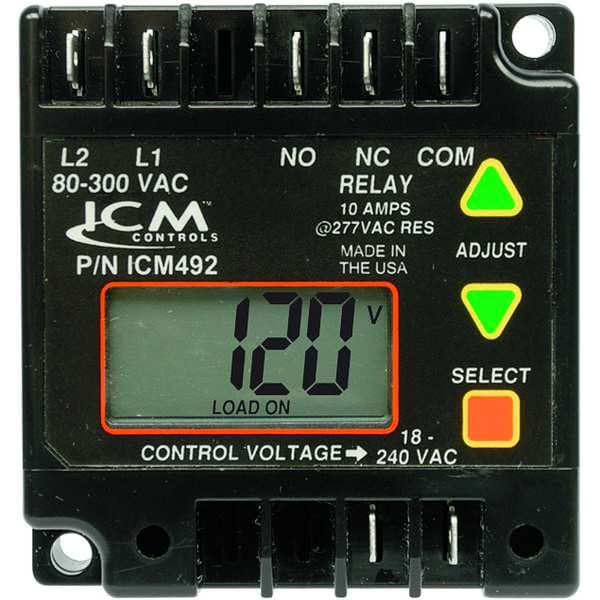

The ICM ICM492D is a line voltage monitor for HVACR applications. This device monitors single-phase power, with an operating voltage range of 80 to 300 V and a contact rating of 10 A at 50/60 Hz. It features a manual or automatic reset function.
