- Voltage: 24V AC
- Bypass Opening Diameter: 6 in
- Drain Hose Diameter: 1/2 in
- Max. Square Foot Capacity: 2,500
- Amps AC: 0.57 A
- Outdoor Temperature Sensor: Outdoor Temperature Sensor Included
Specifications
| Part Number | HE250A1005 |
| Brand | Honeywell |
| Voltage | 24V AC |
| Drain Type | Gravity Drain |
| Color | Gray |
| Depth | 10 1/8 in |
| Height | 17 1/2 in |
| Width | 15 in |
| Overall Width | 15 in |
| Overall Height | 17 1/8 in |
| For Plenum Opening Width | 9 3/4 in |
| Bypass Opening Diameter | 6 in |
| Drain Hose Diameter | 1/2 in |
| Overall Depth | 10 1/8 in |
| Drain Hose Length | 10 ft |
| For Plenum Opening Height | 12 5/8 in |
| Manufacturer Warranty Length | 5 yr |
| Item | Duct Mount Humidifier |
| Max. Square Foot Capacity | 2,500 |
| Includes | Automatic Damper, Humidifier Fan, Humidipro Digital Humidity Control, Maintenance LED, Service LED, Status LED, Water Supply Line |
| Wick Treated With | AgION Antimicrobial Agent |
| Warranty | 5 yr |
| Replacement Filter | HC26A1008 |
| Plenum Opening Required | 12 5/8 in H x 9 3/4 in W |
| Amps AC | 0.57 A |
| Number of Speeds | 1 |
| Type | Drain Bypass |
| Standards | cUL, ISO 9001, UL |
| Coverage Area | 2,500 sq ft |
| Outdoor Temperature Sensor | Outdoor Temperature Sensor Included |
| Operating Temperature Range | 90 Degrees F |
| Housing Color | Gray |
| Control Type | On/Off Switch |
| Terminal Designations | C, Gf, Gt or W, HUM, Power In, Power Out, R, Sensor |
| Includes Mounting Hardware | Mounting Hardware Included |
| Humidistat Control Modes | Automatic/Manual |
| Water Supply | Water Line |
| Includes Saddle Valve | Saddle Valve Included |
| Window Frost Protection | Window Frost Protection Included |
| Humidifier Type | Bypass |
| Daily Humidification Output | 17 gal |
| Pad/Wick Change Reminder | Yes |
| Humidity Settings | 60 % |
| Operating Humidity Range | 95 % |
| Humidification Method | Evaporation |
| Drain Hose Material | Plastic |
| Amperage | 0.75 A |
| Includes Solenoid Valve | Solenoid Valve Included |
| Corrosion Resistant | Not Corrosion-Resistant |
| Control Range | 20 % |
| Control Method | Handheld Remote |
| Operating Humidity - Minimum | 0 % |
| Operating Temperature - Minimum | 34 Degrees F |
| Filter Change Reminder | Change Pad/Wick |
Description

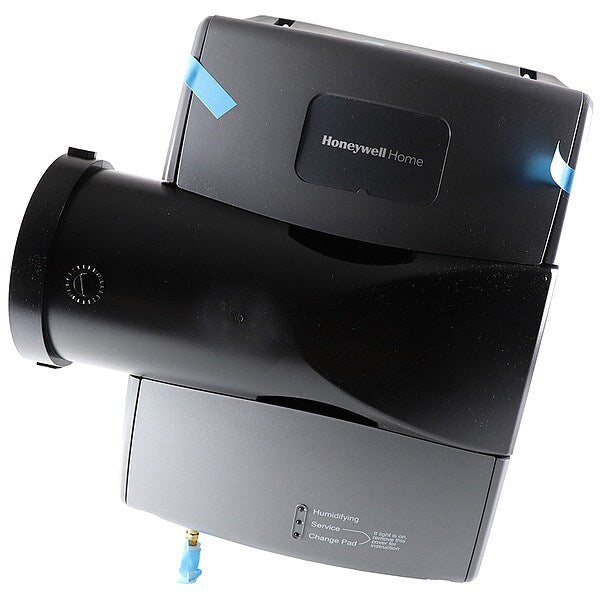

The Honeywell HE250A1005 is a duct-mount, drain bypass furnace humidifier. It operates on 24V AC and 0.57 A, using a gravity drain to manage water, and covers a maximum of 2,500 square feet. This unit includes an automatic damper, humidifier fan, Humidipro digital humidity control, and service, status, and maintenance LEDs, along with a water supply line, and meets cUL and UL standards with ISO 9001 certification.
