- HP: 25
- Nameplate RPM: 1,775
- Voltage: 200V, 208V, 230V, 400V, 460V
- Full Load Amps: 58.0/29.2 A
- RPM Range: 1,701-1,800
- Phase: Three
Specifications
| Part Number | HD25P2E |
| Brand | U.S. Motors |
| HP | 25 |
| Nameplate RPM | 1,775 |
| Voltage | 200V, 208V, 230V, 400V, 460V |
| Motor Mounting Type | Rigid Base |
| Full Load Amps | 58.0/29.2 A |
| Length Less Shaft | 22 7/8 in |
| Overall Length | 27 1/2 in |
| Shaft Dia. | 1 7/8 in |
| Shaft Length | 4 5/8 in |
| Item | Motor |
| Frame | 284T |
| Motor Bearings | 6210-2Z-J/C3,6310-2Z-J/C3 |
| Motor Service Factor | 1.15 |
| Motor Design | Three-Phase |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| RPM Range | 1,701-1,800 |
| Phase | Three |
| No. of Speeds | 1 |
| Motor Application | General Purpose |
| Motor Shaft Rotation | CW/CCW |
| Hz | 60/50 Hz |
| Ins. Class | F |
| Max. Ambient Temp. | 40 Degrees C |
| Motor Frame Material | Cast Iron |
| Motor Mounting Position | Horizontal |
| Motor Shaft Design | Keyed |
| Nominal Efficiency | 93.6 % |
| Standards | CSA Certified, ENERGY cURus |
| CC Number | CC030A |
| NEMA Design | B |
| Inverter Rated | Yes |
| Motor Thermal Protection | None |
| Full Load Amps @ 50Hz | 58.0/29.2 A |
| Usable @ 208V | Yes |
| Weight | 361 lb |
| Usable @ 200V | Yes |
| Voltage @ 50Hz | 200V, 208V, 230V, 400V, 460V |
| Duty Cycle | Continuous |
| HP @ 50Hz | 25 hp |
| Bearing Protection | Double Shields |
| RPM @ 50Hz | 1,775/1,475 |
| Service Factor @ 50Hz | 1.15 |
| Inverter Rating | 20:1, 4:1 |
Description

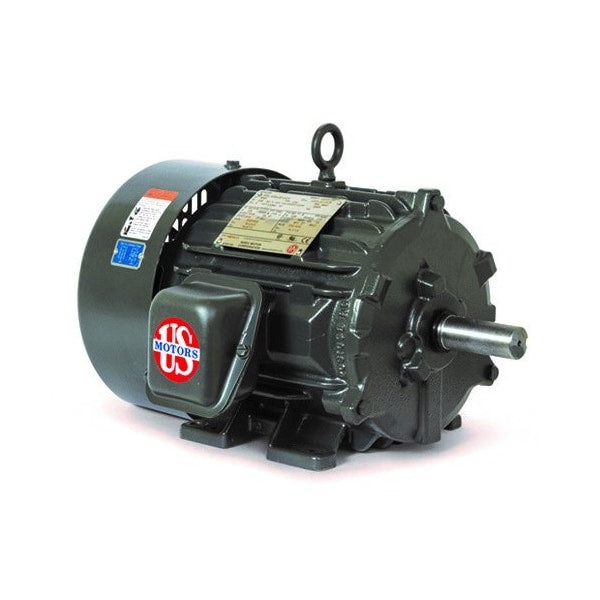

The U.S. Motors HD25P2E is a 25 HP three-phase motor with a 284T frame and a Totally Enclosed Fan Cooled (TEFC) enclosure. This motor converts electrical energy into mechanical power to drive equipment, operating at 1,775 RPM and available in voltages including 200V, 208V, 230V, 400V, and 460V with full load amps of 58.0/29.2 A. It features a rigid base mounting.
