- Connection Orientation: Straight
- Current Rating: 30 A
- Flange Type: Non-Flanged
- Housing Color: Gray
- Housing Material: Valox
- Mount Type: Flush
Specifications
| Part Number | HBL2730SW |
| Brand | Hubbell Wiring Device-Kellems |
| Item | Watertight Locking Receptacle |
| Connection Orientation | Straight |
| Current Rating | 30 A |
| Flange Type | Non-Flanged |
| Housing Color | Gray |
| Housing Material | Valox |
| Mount Type | Flush |
| NEMA Enclosure Rating | 12, 4, 4X |
| NEMA Receptacle Configuration | L16-30R |
| Number of Gangs | 1 |
| Number of Poles | 3 |
| Number of Wires | 4 |
| Phase | Three |
| Polarized | Yes |
| Shrouded | Yes |
| Voltage Rating | 480V AC |
| Wire Connection Type Screw | Terminals |
| Wiring Style | Standard |
| AFCI | No |
| Contact Material | Brass |
| Cover Type Locking | Flip-Up Cover |
| UPC | 783585231907 |
Description

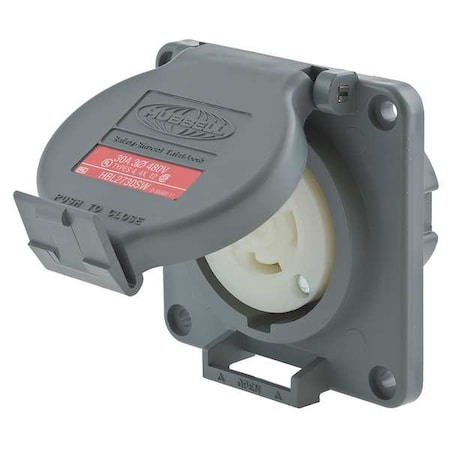

The Hubbell Wiring Device-Kellems HBL2730SW is a watertight locking receptacle with a NEMA L16-30R configuration. It is rated for 30 A and 480V AC on a three-phase, 3-pole, 4-wire system. The receptacle features a gray Valox housing, brass contacts, a flip-up cover, and a flush mount design for NEMA 12, 4, and 4X enclosures.
Confirm the part number against your existing unit or equipment before ordering to ensure correct fit.
