- HP: 1/3, 3/4
- RPM Range: 1,701-1,800
- Nameplate RPM: 1,725/1,140
- Voltage: 200-230V AC
- Voltage Compatibility: 115/208-230V AC, 200-230V AC, 208-220/440V AC, 208-230/277V AC, 208-230/440V AC, 208-230/460V AC, 208-230V AC, 208-240V AC
- Phase: Three
Specifications
| Part Number | H657V1 |
| Brand | Century |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Open Dripproof |
| HP | 1/3, 3/4 |
| No. of Speeds | 2 |
| RPM Range | 1,701-1,800 |
| Shaft Dia. | 5/8 in |
| Length Less Shaft | 8 3/4 in |
| Resilient Ring Dia. | 2 1/2 in |
| Body Dia. | 6 1/2 in |
| Shaft Length | 1 15/16 in |
| Overall Length | 10 11/16 in |
| Item | Belt Drive Motor |
| Nameplate RPM | 1,725/1,140 |
| Voltage | 200-230V AC |
| Frame | 56 |
| Motor Mounting Type | Cradle Base |
| Motor Thermal Protection | None |
| Motor Service Factor | 1.25 |
| Voltage Compatibility | 115/208-230V AC, 200-230V AC, 208-220/440V AC, 208-230/277V AC, 208-230/440V AC, 208-230/460V AC, 208-230V AC, 208-240V AC |
| Phase | Three |
| Motor Application | HVAC/R |
| Motor Sub Application | Belt Drive Fan/Blower |
| Ins. Class | B |
| Max. Ambient Temp. | 104 Degrees F |
| Mounting Stud Pattern | 4 1/8 in x 4 1/8 in |
| Standards | CSA, UL Recognized |
| Hz | 60 Hz |
| Frame Material | Steel |
| Motor Frame Material | Steel |
| Motor Mounting Position | All Angle |
| Footnotes | 26 |
| Motor Shaft Rotation | CW/CCW |
| Motor Bearings | Ball |
| Full Load Amps | 2.5-2.6/1.5-1.6 A |
| Duty | Continuous |
| Ring to Ring Center | 8 1/4 in |
| Nominal Efficiency | 73 % |
| Motor Shaft Design | Keyed |
| Usable @ 200V | Yes |
| Extended Thru-Bolts | Yes |
| Weight | 24 lb |
| Usable @ 208V | Yes |
| Duty Cycle | Continuous |
| Application | Fans, Blowers |
Description

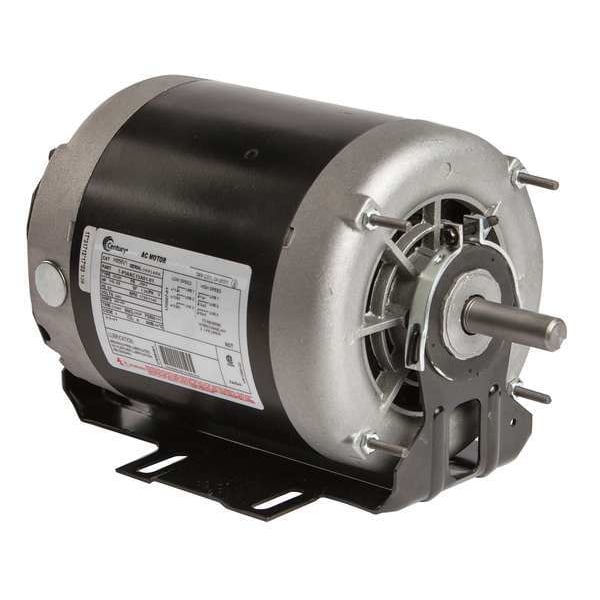

The Century H657V1 is a 3-phase belt drive motor with an open dripproof enclosure. It operates at 200-230V AC and provides dual horsepower ratings of 1/3 and 3/4 HP with nameplate speeds of 1,725 and 1,140 RPM. This motor features a cradle base mounting type.
