- Coil Voltage: 230V AC
- Contact Material: Silver Alloy
- Input Voltage: 200 to 230V AC
- Maximum Operating Temperature: 122 Degrees F
- Minimum Operating Temperature: 14 Degrees F
- Frequency: 50/60 Hz
Specifications
| Part Number | H3YN-2-AC200-230 |
| Brand | Omron |
| Delay Function | Flicker Off Start, Flicker On Start, Interval, On Delay |
| Number of Delay Functions | 4 |
| Minimum Time Setting | 0.1 sec |
| Maximum Time Setting | 10 min |
| Base Shape | Square |
| Overall Height - Relay | 2.48 in |
| Flat Pin Width | 0.498 in |
| Body Height | 0.04 in |
| Overall Depth | 2.48 in |
| Body Depth | 2.07 in |
| Body Width | 0.85 in |
| Item | Multifunction Time Delay Relay |
| Number of Pins | 8 |
| Coil Voltage | 230V AC |
| Current Rating | 5 A |
| Contact Form | DPDT |
| Contact Rating (AC) | 5 A @ 250V |
| Number of Functions | 3 |
| Contact Material | Silver Alloy |
| Electrical Connection | Socket |
| Socket Code | A |
| Status Indicator | None |
| Socket | 4KN18 |
| Input Voltage | 200 to 230V AC |
| Adjustment Method | Analog Dial, Dip Switch |
| Standards | CCC, CE Certified, CSA Certified, EN 61812-1, IEC 60664-1, LR, UL Listed, UR |
| Sealing | Enclosed |
| IP Rating | IP40 |
| Maximum Operating Temperature | 122 Degrees F |
| Electrical Operating Durability | 500,000 |
| Mounting Style | Plug-In |
| Minimum Operating Temperature | 14 Degrees F |
| Reset Method | Forced Reset |
| Operating Time Accuracy | +/-1% FS max |
| Relay Operation | Solid State |
| Compatible with Manufacturer Model Number | PY08, PYF08A, PYF08A-E, PYF08F |
| Weight | 1.76 oz |
| Frequency | 50/60 Hz |
| Power Consumption | 1.8 W, 2.2 VA |
| Mechanical Operating Durability | 10,000,000 |
| Compatible Manufacturer Part Number | PY08, PYF08A, PYF08A-E, PYF08F |
| Compatible Manufacturer Model Number | PY08, PYF08A, PYF08A-E, PYF08F |
| Compatible with Mfr. Model No. | PY08, PYF08A, PYF08A-E, PYF08F |
| Compatible Mfr. Model Number | PY08, PYF08A, PYF08A-E, PYF08F |
Description

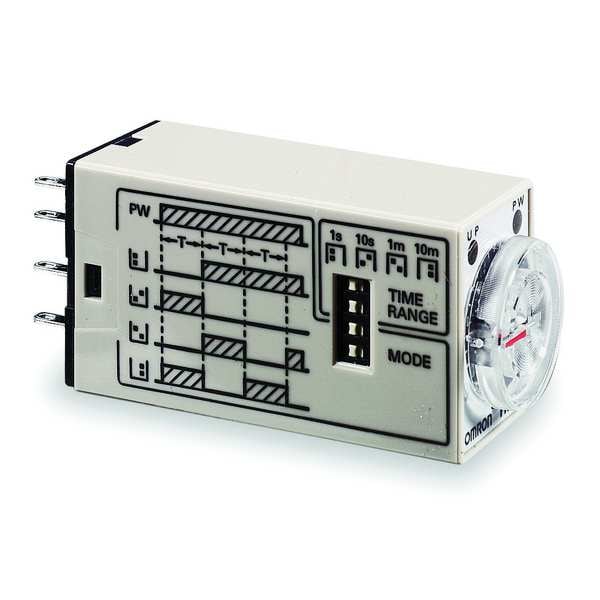

The Omron H3YN-2-AC200-230 is a multifunction time delay relay with a square 8-pin DPDT configuration. It operates on a 200 to 230V AC coil voltage and is rated for 5 A at 250V AC, with silver alloy contacts. This relay supports selectable timing functions including On Delay, Interval, Flicker Off Start, and Flicker On Start, and is certified to CCC, CE, CSA, EN 61812-1, IEC 60664-1, LR, UL, and UR standards.
