- HP: 3/4
- RPM Range: 1,701-1,800
- Nameplate RPM: 1,725
- Bolt Circle Diameter: 5 7/8 in
- Body Diameter: 6 1/2 in
- Voltage: 208 to 240/460V AC
Specifications
| Part Number | H1042L |
| Brand | Century |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Open Drip Proof |
| HP | 3/4 |
| RPM Range | 1,701-1,800 |
| Nameplate RPM | 1,725 |
| Bolt Circle Dia. | 5 7/8 in |
| Shaft Dia. | 5/8 in |
| Shaft Length | 1 1/4 in |
| Height | 6 7/16 in |
| Length Less Shaft | 8 in |
| Overall Length | 9 1/4 in |
| Body Dia. | 6.5 in |
| Bolt Circle Diameter | 5 7/8 in |
| Body Diameter | 6 1/2 in |
| Item | Circulating Pump Motor |
| Frame | 56CZ |
| Voltage | 208 to 240/460V AC |
| Phase | Three |
| Motor Mounting Type | Face |
| Ins. Class | B |
| Hz | 60 |
| Motor Thermal Protection | None |
| Voltage Compatibility | 200-230/440V AC, 200-230/460V AC, 208-230/460V AC, 460V AC |
| Full Load Amps | 2.7-2.8/1.4 |
| Replacement For | Mfr. No. H1042 |
| Motor Shaft Rotation | CW/CCW |
| Max. Ambient Temp. | 50 Degrees C |
| Standards | CSA, UL Listed |
| Motor Service Factor | 1.5 |
| Motor Sub Application | Water Circulator |
| Frame Material | Rolled steel |
| Motor Frame Material | Steel |
| Motor Application | Pump |
| Motor Bearings | Ball |
| Usable @ 200V | No |
| Finish | Red |
| Weight | 21 lb |
| Motor Shaft Design | Keyed |
| Motor Mounting Position | All Angle |
| Usable @ 208V | Yes |
| Duty Cycle | Continuous |
| No. of Speeds | 1 |
| Nameplate Voltage | 208-230/460V AC |
| Frequency | 60 Hz |
| Horsepower | 3/4 hp |
| Maximum Ambient Temperature | 122 Degrees F |
| Compatible with Pump Type | In-Line Circulating Pumps |
| Number of Speeds | 1 |
| Maximum RPM | 1,725 RPM |
| Full Load Current | 2.7 A |
| Revolutions Per Minute - Maximum | 1,725 RPM |
| Thermal Protection | No Thermal Protection |
| Motor Frame Designation | 56CZ |
| Electrical Connection Type | Plug-In |
| Compatible with Brand | Century |
| Ambient Temperature - Maximum | 122 Degrees F |
Description

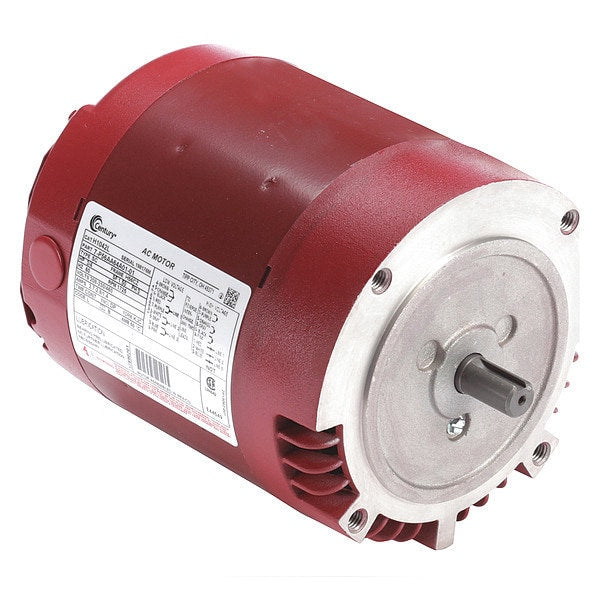

The Century H1042L is a 3/4 HP circulating pump motor with an open drip proof enclosure. This water circulator motor operates at 1,725 RPM and is available in 208 to 240/460V AC three-phase configurations with a face mounting type.
