- HP: 1
- RPM Range: 1,701-1,800
- Nameplate RPM: 1,725
- Voltage: 200-230/460V AC
- Voltage Compatibility: 200-230/440V AC, 200-230/460V AC, 200-230V AC, 200V AC
- Phase: Three
Specifications
| Part Number | H1031L |
| Brand | Century |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Air-Over |
| HP | 1 |
| No. of Speeds | 1 |
| RPM Range | 1,701-1,800 |
| Shaft Dia. | 5/8 in |
| Length Less Shaft | 9 1/2 in |
| Shaft Length | 1 15/16 in |
| Resilient Ring Dia. | 2 1/2 in |
| Body Dia. | 6 1/2 in |
| Overall Length | 11 7/16 in |
| Item | Belt Drive Motor |
| Nameplate RPM | 1,725 |
| Voltage | 200-230/460V AC |
| Frame | 56 |
| Motor Mounting Type | Cradle Base |
| Motor Thermal Protection | None |
| Motor Service Factor | 1.15 |
| Voltage Compatibility | 200-230/440V AC, 200-230/460V AC, 200-230V AC, 200V AC |
| Phase | Three |
| Motor Application | HVAC/R |
| Motor Sub Application | Belt Drive Fan/Blower |
| Nominal Efficiency | 82 % |
| Frame Material | Steel |
| Motor Mounting Position | All Angle |
| Standards | CSA, UL Recognized |
| Duty | Continuous |
| Mounting Stud Pattern | 4 1/8 in x 4 1/8 in |
| Ring to Ring Center | 9 in |
| Ins. Class | B |
| Motor Bearings | Ball |
| Motor Shaft Rotation | CW/CCW |
| Max. Ambient Temp. | 104 Degrees F |
| Motor Frame Material | Steel |
| Full Load Amps | 3.3-3.4/1.7 A |
| Footnotes | 26 |
| Hz | 60 Hz |
| Extended Thru-Bolts | Yes |
| Usable @ 208V | Yes |
| Usable @ 200V | Yes |
| Duty Cycle | Continuous |
| Weight | 30 lb |
| NEMA Design | M |
| Application | Industrial |
Description

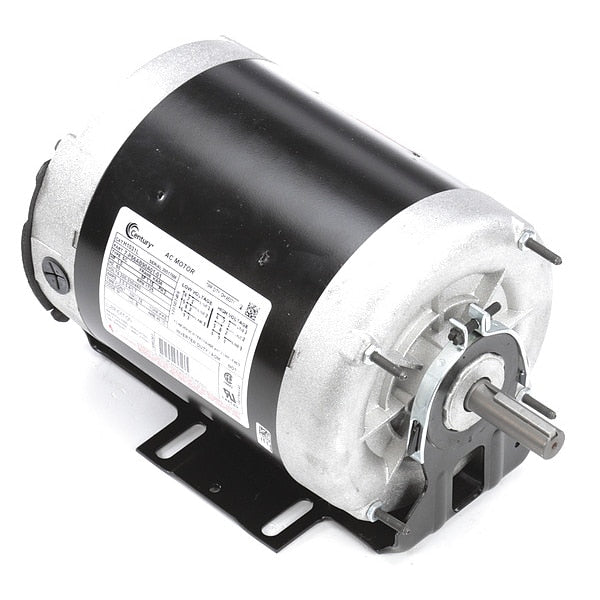

The Century H1031L is a 1 HP, 3-phase belt drive motor with a 56 frame and a totally enclosed air-over enclosure. This motor type provides mechanical power to drive a belt system, operating at a nameplate RPM of 1,725 within the 1,701-1,800 RPM range. It is compatible with 200-230/460V AC, 200-230/440V AC, 200-230V AC, and 200V AC power supplies and features a cradle base mounting.
