- Phase: 3
- HP @ 1 Phase - 230V: 5 hp
- HP @ 3 Phase - 575V: 30 hp
- Phase Loss Sensitivity: Yes
- HP @ 3 Phase - 460-575V: 30
- [Uimp] Rated Impulse Withstand Voltage: 6 kV IEC 60947-2
Specifications
| Part Number | GV3P40 |
| Brand | Square D |
| Number of Poles | 3 |
| Operator | Rotary Knob |
| Phase | 3 |
| Current AC | 40 A |
| Series | TeSys Deca |
| Overall Height | 5.2 in |
| Overall Width | 2.17 in |
| Overall Depth | 5.35 in |
| Item | Manual Motor Starter |
| Standards | ATEX Compliant, BV, CCC, CSA, DNV-GL, EAC, EN/IEC 60947-2, EN/IEC 60947-4, LROS, RINA, UKCA, UL Listed |
| Description/Special Features | Class 10 Ambient-Compensated Thermal Overload Relay |
| HP @ 1 Phase - 230V | 5 hp |
| HP @ 3 Phase - 575V | 30 hp |
| Phase Loss Sensitivity | Yes |
| HP @ 3 Phase - 460-575V | 30 |
| Pilot Light | No |
| Trip Unit Technology | thermal-magnetic |
| Fire Resistance | 960°C IEC 60695-2-11 |
| [Uimp] Rated Impulse Withstand Voltage | 6 kV IEC 60947-2 |
| Ik Degree Of Protection | IK09 enclosure |
| Product Name | TeSys GV3 || TeSys Deca |
| Color | dark grey |
| Device Application | motor protection |
| Range | TeSys Deca |
| Power Dissipation Per Pole | 8 W |
| Tightening Torque | 5 N.m screw clamp terminal |
| Motor Power Kw | 18.5-18.5 kW 400/415 V AC 50/60 Hz || 22-22 kW 500 V AC 50/60 Hz || 37-37 kW 690 V AC 50/60 Hz |
| Magnetic Tripping Current | 560-560 A |
| Operating Altitude | 9842.52 ft (3000 m) |
| Mechanical Robustness | shocks 15 Gn for 11 ms contactor open || shocks 30 Gn for 11 ms contactor closed || vibrations 4 Gn, 5...300 Hz |
| Thermal Protection Adjustment Range | 30-40 A IEC 60947-4-1 |
| Phase Failure Sensitivity | yes IEC 60947-4-1 |
| Device Short Name | GV3P |
| Suitability For Isolation | yes IEC 60947-1 |
| Utilisation Category | AC-3 IEC 60947-4-1 |
| Network Type | AC |
| Rated Duty | continuous IEC 60947-4-1 |
| Ambient Air Temperature For Storage | -40-80°C |
| Climatic Withstand | IACS E10 |
| Fixing Mode | 35 mm symmetrical DIN rail clipped || panel screwed with 3 x M4 screws) |
| Mechanical Operating Durability | 50,000 |
| Terminal Connection Type | Screw Clamp Terminals |
| Horsepower @ Single Phase - 120V AC | 3 hp |
| IP Rating | IP20 |
| Frequency | 50/60 Hz |
| Electrical Operating Durability | 50,000 |
| Mounting Style | DIN Rail |
| Overload Protection Type | Thermal |
| Maximum Operating Temperature | 140 Degrees F |
| Horsepower @ Three Phase - 480V AC | 25 hp |
| Starter Style | IEC |
| Resistance Properties | Fire Resistant |
| Horsepower @ Three Phase - 208V AC | 10 hp |
| Horsepower @ Three Phase - 240V AC | 10 hp |
| Horsepower @ Single Phase - 240V AC | 5 hp |
| Maximum Voltage Rating | 600V AC |
| Minimum Operating Temperature | -4 Degrees F |
| Includes Pilot Light | No |
| Minimum Overload Relay Current Setting | 30 A |
| Horsepower @ Three Phase - 600V AC | 30 hp |
| NEMA Enclosure Rating | No Enclosure |
| Rated Service Short-Circuit Breaking Capacity | 100% 230/240 V AC 50/60 Hz IEC 60947-2; 100% 400/415 V AC 50/60 Hz IEC 60947-2; 100% 440 V AC 50/60 Hz IEC 60947-2; 50% 500 V AC 50/60 Hz IEC 60947-2; 50% 690 V AC 50/60 Hz IEC 60947-2 |
Description

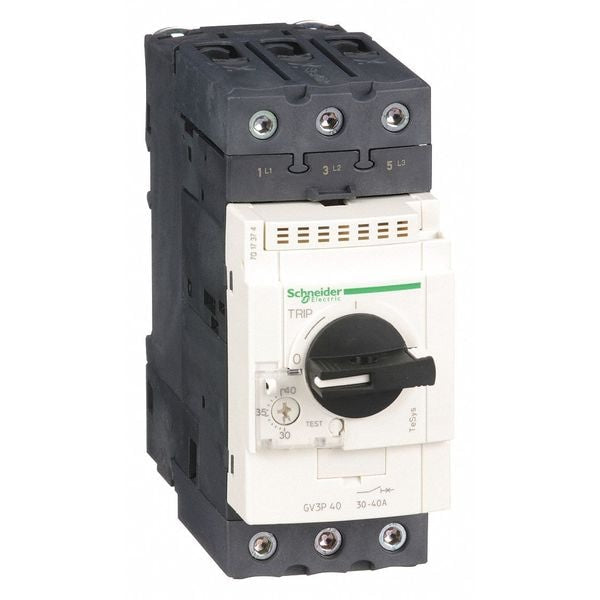

The Square D GV3P40 is a TeSys Deca manual motor starter rated for 40 A and 3-phase operation. It functions as a motor starter with a Class 10 ambient-compensated thermal overload relay and phase loss sensitivity. This unit is UL Listed, CSA certified, and compliant with EN/IEC 60947-2 and EN/IEC 60947-4, as well as ATEX, BV, CCC, DNV-GL, EAC, LROS, RINA, and UKCA standards.
