- [Uimp] Rated Impulse Withstand Voltage: 6 kV IEC 60947-2
- Phase Failure Sensitivity: yes IEC 60947-4-1
- Ambient Air Temperature For Storage: -40-80°C
- Rated Service Short-Circuit Breaking Capacity: 100% 230/240 V AC 50/60 Hz IEC 60947-2; 100% 400/415 V AC 50/60 Hz IEC 60947-2; 100% 440 V AC 50/60 Hz IEC 60947-2; 50% 500 V AC 50/60 Hz IEC 60947-2; 50% 690 V AC 50/60 Hz IEC 60947-2
- Maximum Voltage Rating: 690V AC
- Minimum Operating Temperature: -4 Degrees F
Specifications
| Part Number | GV3P25 |
| Brand | Schneider Electric |
| Number of Poles | 3 |
| Operator | Rotary Knob |
| Current AC | 25 A |
| Series | TeSys Deca |
| Standards | EN/IEC 60947-2 || EN/IEC 60947-4-1 || UL 60947-4-1 || CSA C22.2 No 60947-4-1 |
| Overall Depth | 136 mm |
| Overall Width | 55 mm |
| Overall Height | 132 mm |
| Item | Manual Motor Starter |
| Power Dissipation Per Pole | 8 W |
| Motor Power Kw | 11-11 kW 400/415 V AC 50/60 Hz || 15-15 kW 500 V AC 50/60 Hz || 18.5-18.5 kW 690 V AC 50/60 Hz |
| Fire Resistance | 960°C IEC 60695-2-11 |
| Mechanical Robustness | shocks 15 Gn for 11 ms contactor open || shocks 30 Gn for 11 ms contactor closed || vibrations 4 Gn, 5 to 300 Hz |
| Suitability For Isolation | yes IEC 60947-1 |
| Device Short Name | GV3P |
| Ik Degree Of Protection | IK09 enclosure |
| Utilisation Category | AC-3 IEC 60947-4-1 |
| [Uimp] Rated Impulse Withstand Voltage | 6 kV IEC 60947-2 |
| Range | TeSys Deca |
| Phase Failure Sensitivity | yes IEC 60947-4-1 |
| Ambient Air Temperature For Storage | -40-80°C |
| Climatic Withstand | IACS E10 |
| Network Type | AC |
| Rated Duty | continuous IEC 60947-4-1 |
| Product Name | TeSys GV3 || TeSys Deca |
| Color | dark grey |
| Trip Unit Technology | thermal-magnetic |
| Device Application | motor protection |
| Operating Altitude | 9842.52 ft (3000 m) |
| Magnetic Tripping Current | 350-350 A |
| Thermal Protection Adjustment Range | 17-25 A IEC 60947-4-1 |
| Tightening Torque | 5 N.m screw clamp terminal |
| Fixing Mode | 35 mm symmetrical DIN rail clipped || panel screwed with 3 x M4 screws) |
| Rated Service Short-Circuit Breaking Capacity | 100% 230/240 V AC 50/60 Hz IEC 60947-2; 100% 400/415 V AC 50/60 Hz IEC 60947-2; 100% 440 V AC 50/60 Hz IEC 60947-2; 50% 500 V AC 50/60 Hz IEC 60947-2; 50% 690 V AC 50/60 Hz IEC 60947-2 |
| Electrical Operating Durability | 50,000 |
| IP Rating | IP20 |
| Maximum Voltage Rating | 690V AC |
| Minimum Operating Temperature | -4 Degrees F |
| Mechanical Operating Durability | 50,002 |
| Maximum Operating Temperature | 140 Degrees F |
Description

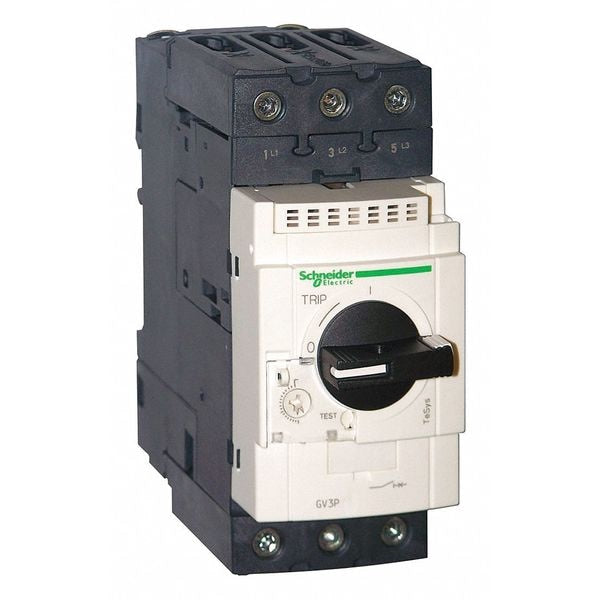

The Schneider Electric GV3P25 is a TeSys Deca manual motor starter rated for 25 A. It provides motor protection by manually switching and safeguarding against overloads and short circuits, with phase failure sensitivity per IEC 60947-4-1. This 3-pole device operates on AC networks up to 690 VAC at 50/60 Hz and meets EN/IEC 60947-2, EN/IEC 60947-4-1, UL 60947-4-1, and CSA C22.2 No 60947-4-1 standards.
