- Phase: 3
- HP @ 3 Phase - 460-575V: 10
- Phase Loss Sensitivity: Yes
- HP @ 1 Phase - 230V: 3 hp
- HP @ 3 Phase - 575V: 10 hp
- Phase Failure Sensitivity: yes IEC 60947-4-1
Specifications

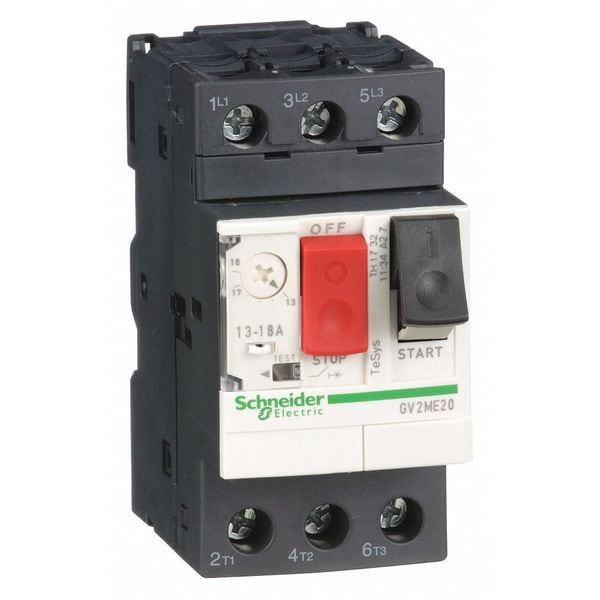

| Part Number | GV2ME20 |
| Brand | Schneider Electric |
| Number of Poles | 3 |
| Operator | Push Button |
| Phase | 3 |
| Current AC | 18 A |
| Series | TeSys Deca |
| Overall Height | 3.5 in |
| Overall Width | 1.77 in |
| Overall Depth | 3.09 in |
| Item | Manual Motor Starter |
| Standards | ATEX Compliant, BV, CCC, CSA, DNV-GL, EAC, EN/IEC 60947-2, EN/IEC 60947-4, LROS, RINA, UKCA, UL Listed |
| Pilot Light | No |
| HP @ 3 Phase - 460-575V | 10 |
| Description/Special Features | Melting Alloy Thermal Overload, Single Unit |
| Phase Loss Sensitivity | Yes |
| HP @ 1 Phase - 230V | 3 hp |
| HP @ 3 Phase - 575V | 10 hp |
| Thermal Protection Adjustment Range | 13-18 A IEC 60947-4-1 |
| Motor Power Kw | 7.5-7.5 kW 400/415 V AC 50/60 Hz || 9-9 kW 500 V AC 50/60 Hz || 15-15 kW 690 V AC 50/60 Hz |
| Trip Unit Technology | thermal-magnetic |
| Power Dissipation Per Pole | 2.5 W |
| Phase Failure Sensitivity | yes IEC 60947-4-1 |
| [Uimp] Rated Impulse Withstand Voltage | 6 kV IEC 60947-2 |
| Mechanical Robustness | shocks 30 Gn for 11 ms || vibrations 5 Gn, 5...150 Hz |
| Device Short Name | GV2ME |
| Fixing Mode | 35 mm symmetrical DIN rail clipped || panel screwed with adaptor plate) |
| Tightening Torque | 1.7 N.m screw clamp terminal |
| Ik Degree Of Protection | IK04 |
| Rated Duty | continuous IEC 60947-4-1 |
| Ambient Air Temperature For Storage | -40-80°C |
| Device Application | motor protection |
| Network Type | AC |
| Utilisation Category | category A IEC 60947-2 || AC-3 IEC 60947-4-1 |
| Climatic Withstand | IACS E10 |
| Operating Altitude | 6561.68 ft (2000 m) |
| Range | TeSys Deca |
| Suitability For Isolation | yes IEC 60947-1§ 7-1-6 |
| Magnetic Tripping Current | 223-223 A |
| Fire Resistance | 960°C IEC 60695-2-11 |
| Color | dark grey |
| Product Name | TeSys GV2 || TeSys Deca |
| Minimum Overload Relay Current Setting | 13 A |
| Resistance Properties | Fire Resistant |
| Frequency | 50/60 Hz |
| Maximum Voltage Rating | 690V AC |
| Minimum Operating Temperature | -4 Degrees F |
| Horsepower @ Single Phase - 120V AC | 1 hp |
| IP Rating | IP20 |
| Starter Style | IEC |
| Horsepower @ Three Phase - 208V AC | 5 hp |
| Horsepower @ Single Phase - 240V AC | 3 hp |
| Mechanical Operating Durability | 100,000 |
| Horsepower @ Three Phase - 240V AC | 3 hp |
| Electrical Operating Durability | 100,000 |
| Horsepower @ Three Phase - 480V AC | 10 hp |
| Horsepower @ Three Phase - 600V AC | 10 hp |
| Overload Protection Type | Thermal |
| Includes Pilot Light | No |
| NEMA Enclosure Rating | No Enclosure |
| Maximum Operating Temperature | 140 Degrees F |
| Terminal Connection Type | Screw Clamp Terminals |
| Rated Service Short-Circuit Breaking Capacity | 100% 230/240 V AC 50/60 Hz IEC 60947-2; 50% 400/415 V AC 50/60 Hz IEC 60947-2; 50% 440 V AC 50/60 Hz IEC 60947-2; 75% 500 V AC 50/60 Hz IEC 60947-2; 75% 690 V AC 50/60 Hz IEC 60947-2 |
Description
The Schneider Electric GV2ME20 is a TeSys Deca manual motor starter. This type of device provides motor protection against overload and phase loss using a melting alloy thermal overload mechanism. It is a 3-phase, 18 A unit rated for 10 HP at 460-575V three-phase and 3 HP at 230V single-phase, and it complies with standards including ATEX, UL, CSA, and EN/IEC 60947.
