- Voltage: 690 V
- Fuse Size: J
- Network Frequency: 50/60 Hz
- Ambient Air Temperature For Storage: -40-80°C
- Ambient Air Temperature For Operation: -20-70°C
Specifications
| Part Number | GS1DU3 |
| Brand | Schneider Electric |
| Protection Method | Fusible |
| Contact Form | 3P |
| Current Rating | 30 A |
| For Fuse Class | Class J |
| Voltage | 690 V |
| Depth | 99 mm |
| Height | 116 mm |
| Width | 105 mm |
| Fuse Size | J |
| Item | Disconnect Switch |
| Handle Type | External Frontal |
| Standards | CSA C22.2 No 5 || UL 489 |
| Mounting Support | plate || rail |
| Rated Operational Power In W | 15 kW 400 V || 18.5 kW 500 V || 25 kW 690 V |
| Product Certifications | LOVAG || LROS (Lloyds register of shipping) || ASEFA |
| Protected Poles Description | 3t |
| Network Frequency | 50/60 Hz |
| Tightening Torque | power circuit 3-3 N.m |
| Device Application | protection |
| Network Type | AC || DC |
| Design | compact |
| Ambient Air Temperature For Storage | -40-80°C |
| Electrical Durability | 6000 cycles |
| Mechanical Durability | 10000 cycles |
| Ambient Air Temperature For Operation | -20-70°C |
| Ip Degree Of Protection | IP20 IEC 60529 with terminal cover) |
| Product Or Component Type | switch-disconnector-fuse |
| Fire Resistance | 960°C body IEC 60695-2-1 |
| Poles Description | 3P |
| Short-Circuit Withstand | 5.5 kA |
| Product Name | TeSys GS |
| Range | TeSys |
| Type Of Operating Handle | external frontal |
| Device Short Name | GS1D |
| Connections - Terminals | power circuit lugs-ring terminals 2-6 mm² |
| Contacts Type And Composition | 3 NO |
Description

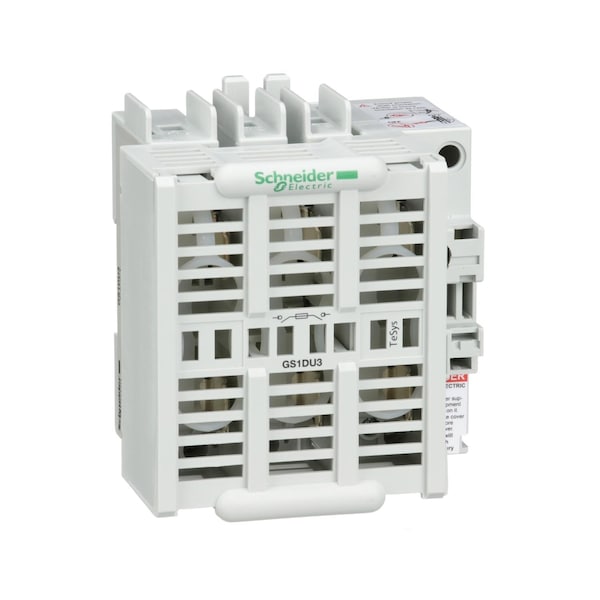

The Schneider Electric GS1DU3 is a 30 A, 690 V disconnect switch. This fusible, three-pole switch provides protection by isolating electrical circuits. It features an external frontal handle and is certified to CSA C22.2 No 5 and UL 489 standards.
