- Voltage: 120 to 277V AC
- Amps: 40 A
- Wire Size Max: #8 AWG
- Contact HP @ 240V: 2 hp
- Operating Temp.: -40 to 131
- Contact HP @ 120V: 1 hp
Specifications
| Part Number | GM40AV |
| Brand | Intermatic |
| Voltage | 120 to 277V AC |
| Operation Mode | 25 hour |
| Amps | 40 A |
| Enclosure Type | Plastic |
| Indoor/Outdoor Usage | Indoor/Outdoor |
| Height | 8 13/16 in |
| Depth | 2 7/8 in |
| Width | 6 5/8 in |
| Product Height | 8 7/8 in; 22.56 mm |
| Product Depth | 3 in; 7.62 mm |
| Product Width | 6 39/64 in; 16.79 mm |
| Wire Size Max | #8 AWG |
| Overall Depth | 3 in |
| Overall Width | 6 5/8 in |
| Overall Height | 8 7/8 in |
| Item | Electromechanical Timer |
| Min. Time Setting | 15 min |
| Max. Time Setting | 23-3/4 hr |
| Contact Form | DPDT |
| Max. On/Off Cycles | 48 |
| Mount | Surface |
| Nominal Max. Time Setting | 24 hr |
| Finish | Gray |
| Time Setting Range | 15 min. to 23-3/4 hr. |
| Number of Poles | 2 |
| Number of Trippers Included | 96 |
| Contact HP @ 240V | 2 hp |
| Standards | cRUus, cULus, RoHs |
| Day Skipper | No |
| Type | 24-Hour, Multioperation |
| Operating Temp. | -40 to 131 |
| Contact HP @ 120V | 1 hp |
| NEMA Rating | 3R |
| Product Type | Timer |
| Applications | Refrigeration Merchandiser; Air Movement & Ventilation; Aeration; Septic Treatment; Generator Exercising |
| Motor Load Ratings NC Ranges | 1 HP, 12 FLA, 30 LRA @ 120 VAC; 2 HP, 10 FLA, 30 LRA @ 240 VAC |
| Resistive Load Ratings NC Ranges | 30 A, 120-277 VAC |
| Has Override Switch CVL | Yes |
| Electrical Life | 50, 000 operations at full load |
| Motor Load Ratings NO Ranges | 1 HP, 16 FLA, 90 LRA @120 VAC; 2 HP, 12 FLA, 52 LRA @ 208-277 VAC |
| Operating Temperature Min | -40°C |
| Tungsten NC Load Ratings | 2 A, 120 VAC |
| Has Captive Trippers CVL | Yes |
| Tungsten NO Load Ratings | 15 A, 120 VAC |
| Solutions | Refrigeration; Ventilation; Water Treatment; Generator Exercising |
| Has Realtime Clock Face CVL | Yes |
| Resistive NO Load Ratings | 40 A, 120-277 VAC |
| Resistive NC Load Ratings | 30 A, 120 VAC, 60 Hz; 30 A, 208 VAC, 60 Hz; 30 A, 240 VAC, 60 Hz; 30 A, 277 VAC, 60Hz |
| Pilot Duty Load Ratings NO Ranges | 300 VA, 120-240 VAC |
| Magnetic Ballast Load Ratings NO Ranges | 30 A, 120 VAC; 20 A, 277 VAC |
| Motor NC Load Ratings | 1 HP, 12 FLA, 30 LRA @120 VAC; 2 HP, 10 FLA, 30 LRA @240 VAC |
| Motor NO Load Ratings | 1 HP, 16 FLA, 90 LRA @ 120 VAC; 2 HP, 12 FLA, 52 LRA @ 208-277 VAC |
| Switch Type | DPDT |
| Operating Temperature Max | 131°C |
| Input Voltage Ranges | Auto Voltage 120-277 VAC, 60 Hz |
| Minimum On Off Time | 15 min |
| Packaging Applications | Lighting Control; Access Control; Commercial Refrigeration; General Electrical Circuits; Pumps; Motors; Fan Control |
| Voltage Selection Type | Auto Voltage |
| Mechanism Type | Electromechanical |
| Resistive Load Ratings NO Ranges | 40 A, 120-277 VAC |
| Pilot Duty Load Ratings Ranges | 300 VA, 120-240 VAC |
| Maximum On Off Operations | 48 |
| Market | Commercial; Industrial |
| Operating Humidity | 0-95% RH, Non-condensing |
| UL Cerfication File Number | #E10694 |
| Magnetic Ballast Load Ratings NC Ranges | 10 A, 277 VAC |
| Wiring Option | Screw box lug |
| UL Certification | cULus |
| Pilot Duty NO Load Ratings | 300 VA, 120 VAC; 300 VA, 208 VAC; 300 VA, 240 VAC |
| Input Voltage Range(s) | Auto Voltage 120-277 VAC, 60 Hz |
| Magnetic Ballast (NC) Range(s) | 10 A, 277 VAC |
| Tungsten (NC) Load Ratings | 2 A, 120 VAC |
| Pilot Duty (NO) | 300 VA, 120 VAC, 300 VA, 208 VAC, 300 VA, 240 VAC |
| Operating Temperature Max (°F) | 131 |
| Minimum ON/OFF Times | 15 min |
| Resistive (NC) Range(s) | 30 A, 120-277 VAC |
| Pilot Duty (NO) Range(s) | 300 VA, 120-240 VAC |
| Has Real-time Clock Face | Yes |
| Maximum ON/OFF Operations | 48 |
| Operating Temperature Min (°F) | -40 |
| Features | Power LED Indicator, Status LED Indicator |
| Has Override Switch | Yes |
| Has Captive Trippers | Yes |
| Tungsten (NO) Load Ratings | 15 A, 120 VAC |
| Resistive (NO) Range(s) | 40 A, 120-277 VAC |
| Magnetic Ballast (NO) Range(s) | 30 A, 120 VAC; 20 A, 277 VAC |
| Operating Temperature Min (°F) | -40 |
| Operating Temperature Max (°F) | 131 |
| Horsepower @ 240V - Maximum | 2 hp |
| Number of Trippers - Maximum | 96 |
| Horsepower @ 120V - Maximum | 1 hp |
| Operating Temperature - Minimum | -40 Degrees F |
| NEMA Enclosure Rating | 3R |
| Application | Machinery, HVAC |
| Operating Temperature - Maximum | 131 Degrees F |
| Body Material | Plastic |
| Compatible Lighting | LED |
| Current Rating - Maximum | 40 A |
| Mounting Style | Surface |
| On/Off Cycles - Maximum | 48 |
| AC Voltage Rating | 120-277V AC |
| Body Color | Grey |
| Series | GM40AV |
| Time Setting - Maximum | 24 hr |
| Time Setting - Minimum | 15 min |
| Time Minimum Setting | 16 min |
| Time Maximum Setting | 25 hr. |
Description

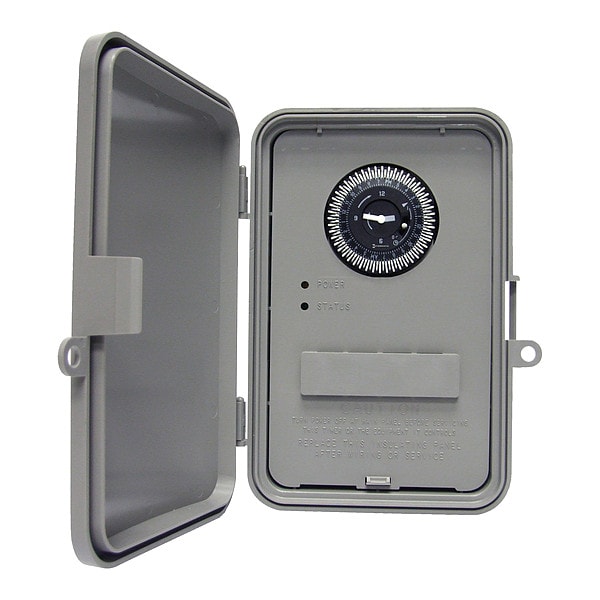

The Intermatic GM40AV is a 24-hour multioperation electromechanical timer with a plastic enclosure. This type of timer controls electrical loads by opening and closing contacts according to a programmed schedule. It is rated for 40 amps at 120 to 277V AC, with a 2 hp contact rating at 240V, and meets cRUus, cULus, and RoHS standards.
