- Phase: Single
- HP: 60 HP @ 600V
- Voltage: 240 V
- Housing Material: Steel
- Material of Construction: Steel
- Amps AC: 60 A
Specifications
| Part Number | GF222NRA |
| Brand | Siemens |
| Protection Method | Fusible |
| Contact Form | DPST |
| Current Rating | 60 A |
| Phase | Single |
| For Fuse Class | Class H, Class R, Class T |
| Height | 10 3/4 in |
| Depth | 3 1/4 in |
| Width | 6 in |
| Item | Safety Switch |
| Environment | Indoor/Outdoor |
| Enclosure Type | NEMA 3R |
| HP | 60 HP @ 600V |
| Voltage | 240 V |
| Housing Material | Steel |
| Standards | UL 98 |
| Number of Poles | 2 |
| Number of Wires | 3 |
| Material of Construction | Steel |
| Amps AC | 60 A |
| Duty | Standard |
| NEMA Enclosure Type | 3R |
| For Use With | Class H, R, T Fuse |
| Metallic / Non-Metallic | Metallic |
| IP Rating | Not Rated |
| Horsepower @ 240V AC | 15 hp |
| NEMA Enclosure Rating | 3R |
| Mounting Style | Surface Mount |
| Horsepower @ 600V AC | 60 hp |
Description

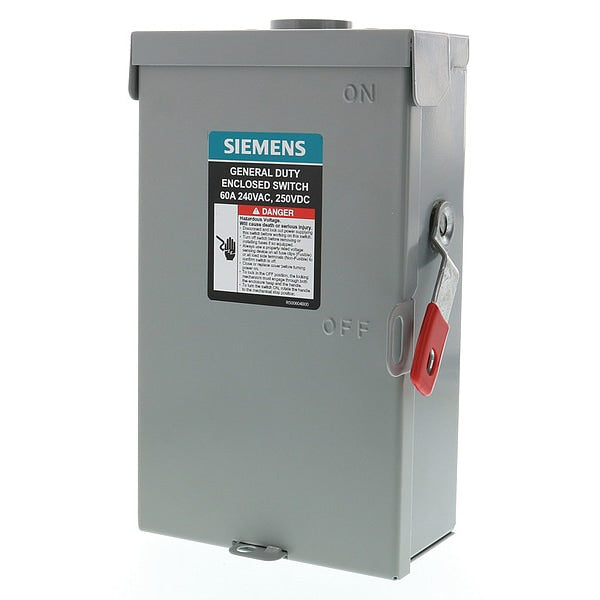

The Siemens GF222NRA is a 60 A, 240 V, single-phase, general-duty safety switch with a NEMA 3R steel enclosure. As a fusible safety switch, it provides a means to manually disconnect power and protect downstream equipment from overcurrent. This switch is rated for 60 HP at 600 V and complies with UL 98 standards.
