- Voltage: 120V AC
- Phase: 1
- Duct Diameter: 6 in
- Amps: 1.0
- Housing Material: Steel
- Hz: 60 Hz
Specifications
| Part Number | FV-40VQ4 |
| Brand | Panasonic |
| Voltage | 120V AC |
| Mounting Location | Ceiling |
| CFM @ 0.100-In. SP | 380 cfm |
| Phase | 1 |
| Watts | 111.5 W |
| Duct Dia. | 6 in |
| Housing Length | 14 51/64 in |
| Housing Height | 14 51/64 in |
| Height | 9-9/32" |
| Housing Width | 9 27/32 in |
| Grille Width | 17 1/2 in |
| Width | 12-9/32" |
| Grille Length | 17 1/2 in |
| For Cut-Out Width | 14 3/4 in |
| Overall Width | 14 3/4 in |
| Duct Diameter | 6 in |
| Profile Width Family | Single-Wide |
| Overall Depth | 14 3/4 in |
| Overall Height | 9 1/4 in |
| For Cut-Out Length | 14 3/4 in |
| Profile Height Family | Medium |
| Amps | 1.0 |
| Housing Material | Steel |
| Number of Speeds | 1 |
| Sones @ 0.100-In. SP @ 5 Ft. | 3.0 |
| Lighted | Without Light |
| Heater | Without Heater |
| Motion Sensing | No |
| Green Certification or Other Recognition | ENERGY STAR |
| Humidity Sensing | No |
| Hz | 60 Hz |
| Standards | ASHRAE 62.2, California Title 24, ENERGY STAR, LEED, UL Listed, Washington VIAQ |
| Night-Light | No |
| Item | Bathroom Fan |
| Construction Material | Metal |
| Nominal RPM | 774 RPM |
| Grille Material | Polypropylene |
| Discharge | Horizontal |
| Motor Enclosure | Totally Enclosed |
| Motor Type | Condenser Motor |
| Wattage | 111 W |
| Exhaust Airflow @ 0.250 in SP | 356 cfm |
| Sensor Type | None |
| Mounting Orientation | Horizontal |
| Noise Level @ 0.250 in SP @ 5 ft | 3 sones |
| Housing Finish | Painted Enamel |
| Maximum Noise Level | 3 sones |
| Includes Light Bulbs | No |
| Blower Wheel Curve | Forward |
| Nameplate Voltage | 120V AC |
| Discharge Direction | Horizontal |
| Exhaust Airflow @ 0.100 in SP | 380 cfm |
| Includes Grill | Yes |
| Motor Speed | 793 RPM, 874 RPM |
| Vent Design | Ducted |
| Noise Level @ 0.100 in SP @ 5 ft | 3 sones |
| Frequency | 60 Hz |
| Duct Shape | Round |
| Full Load Current | 0.99 A |
Description

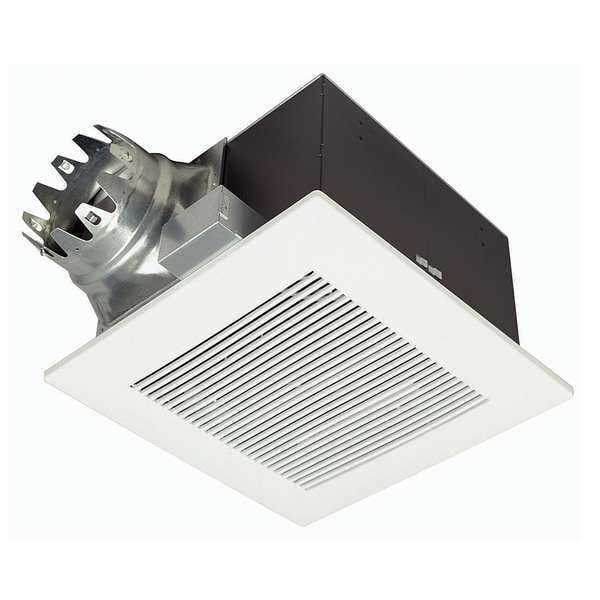

The Panasonic FV-40VQ4 is a ceiling bathroom fan designed to ventilate indoor spaces. It operates on 120V AC at 1.0 amp and 60 Hz, moving 380 cfm of air. This fan meets ASHRAE 62.2, California Title 24, ENERGY STAR, LEED, UL Listed, and Washington VIAQ standards.
