- Voltage: 120V AC
- Phase: 1
- Duct Diameter: 4 in
- Amps: 0.04/0.06/0.11
- Housing Material: Zinc; Aluminum; Magnesium
- Nominal RPM: 730/811/958 RPM
Specifications
| Part Number | FV-0511VKL3 |
| Brand | Panasonic |
| Voltage | 120V AC |
| CFM @ 0.100-In. SP | 50/80/110 cfm |
| Includes | Motion Sensor Cap |
| Phase | 1 |
| Watts | 3.2/5.3/10.5 W |
| Duct Dia. | 4 in or 6 in |
| Housing Height | 7 3/8 in |
| Grille Width | 13 in |
| Grille Length | 13 in |
| Housing Length | 10 1/4 in |
| Housing Width | 10 1/4 in |
| Profile Height Family | Medium |
| Overall Width | 10 1/4 in |
| Profile Width Family | Single-Wide |
| Overall Depth | 10 1/4 in |
| For Cut-Out Width | 10 1/2 in |
| For Cut-Out Length | 10 1/2 in |
| Duct Diameter | 4 in |
| Overall Height | 7 3/8 in |
| Amps | 0.04/0.06/0.11 |
| Housing Material | Zinc; Aluminum; Magnesium |
| Number of Speeds | 3 |
| Sones @ 0.100-In. SP @ 5 Ft. | 0.3/0.3/0.4 |
| Lighted | With Light |
| Heater | Without Heater |
| Motion Sensing | No |
| Profile | Medium |
| Nominal RPM | 730/811/958 RPM |
| Discharge | Vertical |
| Item | Bathroom Fan |
| Grille Material | Polypropylene |
| Green Certification or Other Recognition | ENERGY STAR(R) Certified |
| Humidity Sensing | No |
| Standards | ASHRAE 62.2, CA T-24, CALGreen, LEED, UL Listed |
| Night-Light | Yes |
| Requires | Ductwork |
| Hz | 60 Hz |
| Motor Type | DC Motor |
| Primary Light Wattage | 10 W |
| Blower Wheel Curve | Forward |
| Light Color Temperature | Warm White |
| Full Load Current | 0.04 A, 0.06 A, 0.11 A |
| Duct Shape | Round |
| Number of Primary Lights | 1 |
| Night Light Technology | LED |
| Exhaust Airflow @ 0.100 in SP | 50 cfm, 80 cfm, 110 cfm |
| Includes Grill | Yes |
| Maximum Noise Level | 0.9 sones |
| Noise Level @ 0.100 in SP @ 5 ft | 0.4 sones |
| Exhaust Airflow @ 0.250 in SP | 50 cfm, 80 cfm, 110 cfm |
| Frequency | 60 Hz |
| Motor Speed | 730 RPM, 811 RPM, 958 RPM, 1,066 RPM, 1,127 RPM, 1,203 RPM, 1,281 RPM, 1,341 RPM, 1,375 RPM |
| Noise Level @ 0.250 in SP @ 5 ft | 0.9 sones |
| Mounting Orientation | Horizontal |
| Maximum Ambient Operating Temperature | 104 Degrees F |
| Vent Design | Ducted |
| Night Light Wattage | 0.2 W |
| Discharge Direction | Vertical |
| Includes Light Bulbs | Yes |
| Primary Lighting Technology | LED |
| Sensor Type | Occupancy |
| Nameplate Voltage | 120V AC |
Description

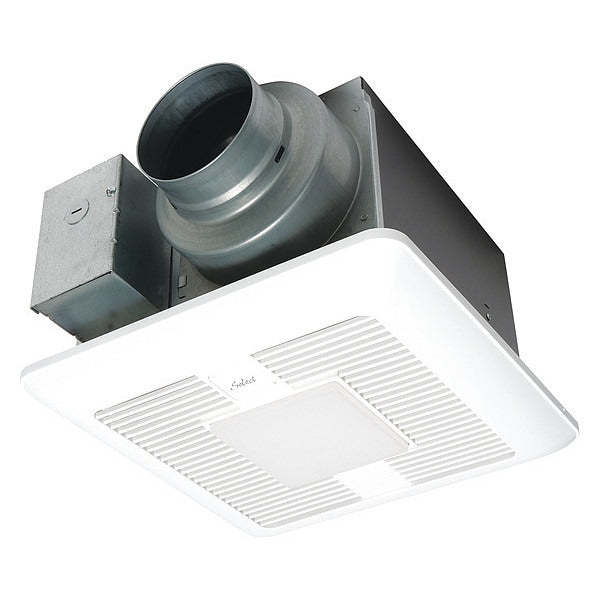

The Panasonic FV-0511VKL3 is a bathroom fan with a motion sensor cap. This fan provides 50, 80, or 110 CFM of airflow at 730, 811, or 958 RPM, respectively, and operates on 120V AC, 1-phase power at 0.04/0.06/0.11 amps. It features a housing constructed from zinc, aluminum, and magnesium, and a polypropylene grille.
