- Voltage: 120V
- Phase: 1
- Duct Diameter: 4 in
- Amps: 0.28
- Housing Material: Steel
- Nominal RPM: 833 RPM, 890 RPM, 999 RPM
Specifications
| Part Number | FV-0511VFL1 |
| Brand | Panasonic |
| Voltage | 120V |
| CFM @ 0.100-In. SP | 110 cfm, 50 cfm, 80 cfm |
| Includes | Plastic Alignment Guides Retaining Clip |
| Phase | 1 |
| Watts | 11.0 W, 4.2 W, 6.6 W |
| Duct Dia. | 4 in |
| Grille Width | 13 in |
| Housing Length | 10 1/4 in |
| Grille Length | 13 in |
| Housing Width | 10 1/4 in |
| Housing Height | 5 3/5 in |
| Duct Diameter | 4 in |
| Overall Width | 10 1/4 in |
| For Cut-Out Width | 10 1/4 in |
| Overall Height | 5 1/2 in |
| Overall Depth | 10 1/4 in |
| Profile Height Family | Low |
| For Cut-Out Length | 10 1/4 in |
| Amps | 0.28 |
| Housing Material | Steel |
| Number of Speeds | 3 |
| Sones @ 0.100-In. SP @ 5 Ft. | 0.3, 1.0, Less Than 0.3 |
| Lighted | With Light |
| Profile | Low |
| Standards | ASHRAE 62.2 ENERGY STAR Certified IAP and California Title 24 ISO 9001 Certified LEED UL Listed |
| Discharge | Vertical |
| Nominal RPM | 833 RPM, 890 RPM, 999 RPM |
| Grille Material | Polypropylene |
| Hz | 60 Hz |
| Motor Enclosure | Totally Enclosed |
| Green Certification or Other Recognition | ENERGY STAR(R) Certified and HVI(R) Certified |
| Motor Type | Electronically Commutated |
| Green Environmental Attribute | Product Contributes To Reducing Energy Consumption |
| Requires | Ductwork |
| Item | Remodeling Fan w/LED, Pick-A-Flow CFM |
| Night-Light | Yes |
| Maximum Noise Level | 1.4 sones |
| Mounting Orientation | Vertical |
| Primary Lighting Technology | LED |
| Exhaust Airflow @ 0.250 in SP | 51 cfm, 80 cfm, 82 cfm, 89 cfm, 110 cfm |
| Number of Primary Lights | 1 |
| Nameplate Voltage | 120V AC |
| Night Light Technology | LED |
| Sensor Type | None |
| Frequency | 60 Hz |
| Vent Design | Ducted |
| Primary Light Wattage | 10 W |
| Wattage | 11 W |
| Exhaust Airflow @ 0.100 in SP | 50 cfm, 80 cfm, 110 cfm |
| Noise Level @ 0.100 in SP @ 5 ft | 1 sones |
| Light Color Temperature | Warm White |
| Motor Speed | 833 RPM |
| Noise Level @ 0.250 in SP @ 5 ft | 1.4 sones |
| Full Load Current | 0.08 A, 0.09 A, 0.12 A, 0.13 A, 0.14 A, 0.16 A, 0.17 A, 0.18 A, 0.21 A, 0.22 A, 0.24 A, 0.25 A, 0.27 A, 0.28 A |
| Duct Shape | Round |
| Includes Light Bulbs | Yes |
| Night Light Wattage | 0.2 W |
| Discharge Direction | Vertical |
| Includes Grill | Yes |
Description

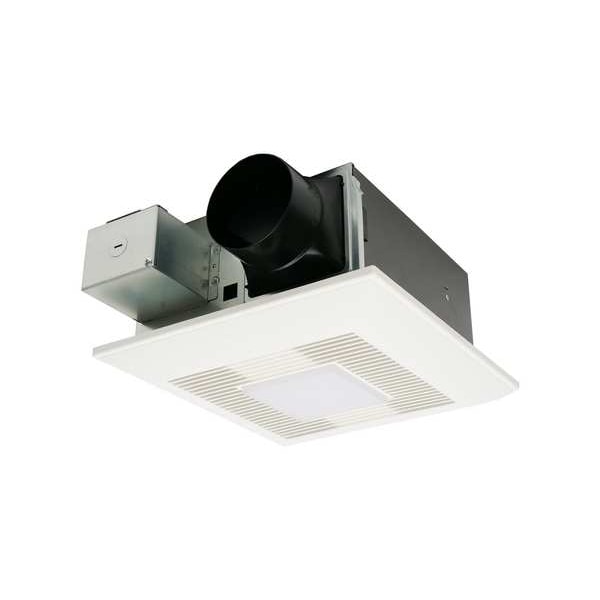

The Panasonic FV-0511VFL1 is a remodeling fan with an integrated LED light and Pick-A-Flow CFM technology. This type of unit exhausts air from a room, with selectable airflow ratings of 50, 80, or 110 cfm, and operates on 120V, 1-phase, drawing 0.28 amps. It is constructed with a steel housing and a polypropylene grille, and includes plastic alignment guides and a retaining clip. The fan meets ASHRAE 62.2, ENERGY STAR, California Title 24, ISO 9001, LEED, and UL standards.
