- Voltage: 120V AC
- Phase: 1
- Duct Diameter: 4 in
- Amps: 0.09/0.2
- Housing Material: Steel
- Nominal RPM: 708/902 RPM
Specifications
| Part Number | FV-0510VS1 |
| Brand | Panasonic |
| Voltage | 120V AC |
| Mounting Location | Ceiling or Wall |
| CFM @ 0.100-In. SP | 50/100 cfm |
| Includes | Hanger Bars, Mounting Brackets |
| Phase | 1 |
| Duct Dia. | 4 in |
| Housing Length | 10 1/4 in |
| Housing Width | 10 1/4 in |
| Grille Width | 13 in |
| Width | 10-1/4" |
| Housing Height | 3 23/64 in |
| Height | 3-23/64" |
| Grille Length | 13 in |
| For Cut-Out Length | 10 1/2 in |
| Profile Width Family | Single-Wide |
| Duct Diameter | 4 in |
| Profile Height Family | Low |
| Overall Width | 10 1/4 in |
| Overall Depth | 10 1/4 in |
| For Cut-Out Width | 10 1/2 in |
| Overall Height | 3 3/8 in |
| Watts | 4.4/11.1 W |
| Amps | 0.09/0.2 |
| Housing Material | Steel |
| Number of Speeds | 3 |
| Sones @ 0.100-In. SP @ 5 Ft. | Less than 0.3/0.9 |
| Lighted | Without Light |
| Heater | Without Heater |
| Motion Sensing | No |
| Profile | Low |
| Nominal RPM | 708/902 RPM |
| Standards | cUL Listed, ENERGY STAR, HVI Certified, UL Listed |
| Construction Material | Metal |
| Green Certification or Other Recognition | ENERGY STAR |
| Item | Bathroom Fan |
| Night-Light | No |
| Hz | 60 Hz |
| Humidity Sensing | No |
| Requires | Ductwork |
| Discharge | Horizontal/Vertical |
| Grille Material | Polypropylene |
| Green Environmental Attribute | Product Contributes To Reducing Energy Consumption |
| Motor Enclosure | Totally Enclosed |
| Motor Type | DC Motor |
| Vent Design | Ducted |
| Includes Grill | Yes |
| Discharge Direction | Horizontal and Vertical |
| Includes Light Bulbs | No |
| Nameplate Voltage | 120V AC |
| Noise Level @ 0.250 in SP @ 5 ft | 1.3 sones |
| Duct Shape | Oval |
| Exhaust Airflow @ 0.250 in SP | 53 cfm, 81 cfm, 100 cfm |
| Motor Speed | 708 RPM, 797 RPM, 902 RPM, 1,025 RPM, 1,070 RPM, 1,121 RPM, 1,230 RPM, 1,270 RPM, 1,300 RPM |
| Frequency | 60 Hz |
| Noise Level @ 0.100 in SP @ 5 ft | 0.9 sones |
| Sensor Type | None |
| Full Load Current | 0.09 A, 0.13 A, 0.2 A |
| Exhaust Airflow @ 0.100 in SP | 50 cfm, 100 cfm |
| Maximum Noise Level | 1.3 sones |
Description

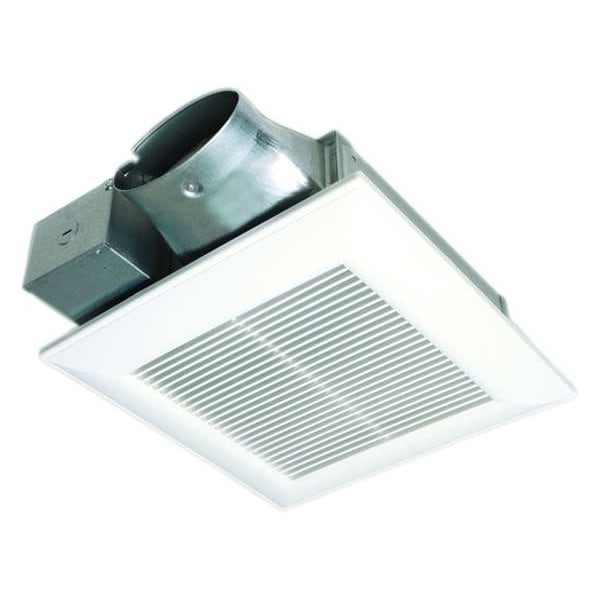

The Panasonic FV-0510VS1 is a ceiling or wall bathroom fan. This type of fan exhausts air from a room, operating at 50/100 cfm with a 4-inch duct diameter. It runs on 120V AC, 1-phase power at 0.09/0.2 amps, with a nominal RPM of 708/902. The unit is constructed of metal and steel, includes hanger bars and mounting brackets, and is cUL Listed, ENERGY STAR, HVI Certified, and UL Listed.
