- Voltage: 24 V AC/DC
- For Shaft Diameter: 1 in
- Ambient Temp. Range: -22 Degrees to 122 Degrees F
- Input Voltage: 24V AC/DC
- Maximum Operating Temperature: 122 Degrees F
- NEMA Rating: 2
Specifications
| Part Number | FSAFB24-SR-S |
| Brand | Belimo |
| Signal Type | Proportional |
| Torque | 180 in-lb |
| Voltage | 24 V AC/DC |
| Timing | Less than 75 sec |
| Depth | 4 12/25 in |
| Height | 9 69/100 in |
| Width | 3 43/50 in |
| Overall Height | 9 3/4 in |
| Overall Depth | 4 1/2 in |
| For Shaft Diameter | 1 in |
| Overall Width | 3 7/8 in |
| Switch Type | 2 SPDT |
| Item | Fire and Smoke Actuator |
| For Use With | Dampers |
| Power Rating | 6.5W |
| Ambient Temp. Range | -22 Degrees to 122 Degrees F |
| Electrical Connections | Cable |
| Shaft Type | 1/2" to 1-3/64" Round |
| Motor Direction | CW or CCW |
| Input Voltage | 24V AC/DC |
| Power Consumption | 10 VA |
| Plenum Rating | Plenum Rated |
| Smoke Application Rating | Smoke Application Rated |
| For Use With Building Automation Systems | Building Automation System Compatible |
| Number of Auxiliary Switches | 2 |
| Contact Form | SPDT |
| Stroke Degree | 95 Degrees |
| IP Rating | IP54 |
| Time to Close | 75 sec |
| Maximum Operating Temperature | 122 Degrees F |
| NEMA Rating | 2 |
| Valve Application | Damper |
| Minimum Operating Temperature | -22 Degrees F |
| Weight | 5.7 lb |
| For Shaft Shape | Round |
| Product Type | Fire and Smoke Actuator |
| Housing Material | Steel |
| Standards | CE Certified, CSA Certified C22.2 No. 139, ISO 9001, UL 2043, UL 60730-1 |
| Housing Material Finish | Galvanized |
| Rated Torque | 180 in-lb |
| Fire Application Rating | Fire Application Rated |
| Electrical Connection Type | Hardwired |
| Shaft Rotation | CW/CCW |
| Application | Fire and Smoke Dampers |
Description

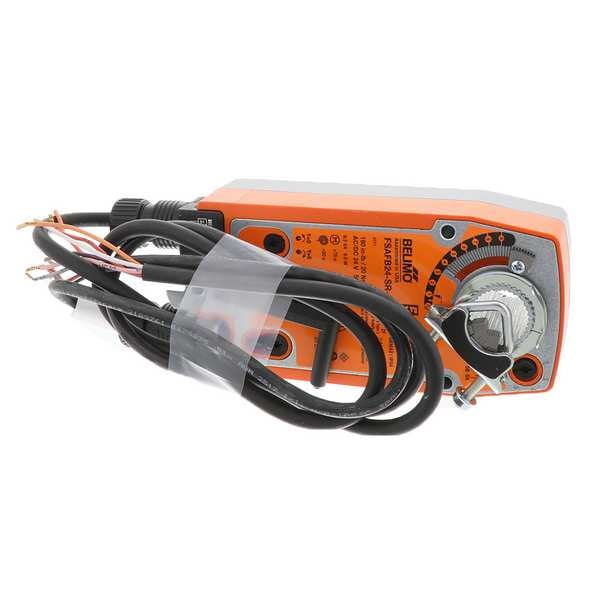

The Belimo FSAFB24-SR-S is a fire and smoke actuator for use with dampers. This proportional actuator operates on 24 V AC/DC with a power rating of 6.5W and includes two SPDT switches. It is designed for an ambient temperature range of -22 to 122 degrees F and connects via cable.
