- Connection Size: 3/4 FNPT
- Voltage: 120/240VAC
- Max. Pressure: 150 psi
- For Pipe Size: 3/4 in
- Wetted Materials: Brass, BUNA, EPDM
- Max. Pressure (PSI): 150 psi
Specifications
| Part Number | FS5-3/4 |
| Brand | Mcdonnell & Miller |
| Connection Size | 3/4 FNPT |
| Switch Type | SPDT |
| Voltage | 120/240VAC |
| Max. Pressure | 150 psi |
| Max. Flow GPM | 15 gpm |
| Overall Length | 3.2 in |
| For Pipe Size | 3/4 in |
| Overall Height | 5.1 in |
| Item | Liquid Flow Switch |
| Wetted Materials | Brass, BUNA, EPDM |
| Max. Pressure (PSI) | 150 psi |
| Min. Flow Rate (GPM) | 1.5 gpm |
| Type | General Purpose |
| Min. Fluid Temp. (F) | 32 Degrees F |
| Application | Alarms, Automatic Burners and Metering Devices, Motors, Signal Lights |
| Min. Ambient Temp. (F) | 32 Degrees |
| Switch Enclosure | NEMA 1 |
| Float Switch Contact Form | SPDT |
| Max. Fluid Temp. (F) | 250 Degrees F |
| Flow Rate - Minimum | 1.5 gpm |
| Set Point Configuration | Adjustable |
| Media Temperature - Maximum | 250 Degrees F |
| Housing Material | Brass |
| Flow Rate - Maximum | 1.5 gpm |
| Wetted Material | Brass, Buna-N, EPDM |
| Ambient Temperature - Maximum | 250 Degrees F |
| Ambient Temperature - Minimum | 32 Degrees F |
| Contact Rating (AC) | 22.2 A @ 240V (Locked Rotor), 3.7 A @ 240V (Full Load), 44.4 A @ 120V (Locked Rotor), 7.4 A @ 120V (Full Load) |
| Media Temperature - Minimum | 32 Degrees F |
| Connection Type | NPT |
Description

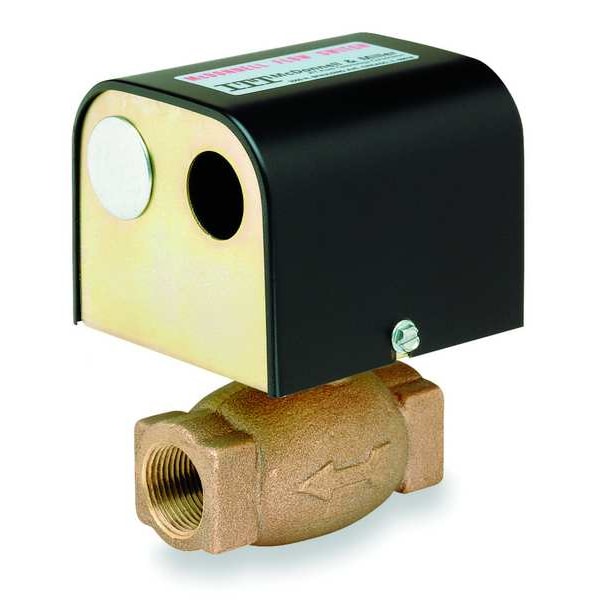

The McDonnell & Miller FS5-3/4 is a liquid flow switch. This SPDT snap-action switch detects the presence or absence of liquid flow in a pipe, activating or deactivating electrical circuits at a set flow rate. It is rated for 120/240VAC, a maximum pressure of 150 psi, and a maximum flow of 15 gpm, with wetted materials of brass, BUNA, and EPDM.
