- Voltage: 120/240VAC
- Phase: 1 and 3
- Connection Size: 1 in
- For Pipe Size: 1 in
- Media Temperature - Minimum: 32 Degrees F
- Ambient Temperature - Minimum: 32 Degrees F
Specifications
| Part Number | FS4-3D |
| Brand | Mcdonnell & Miller |
| For Use With | Air Conditioning; Hot Water Space Heating Systems; Hot Water Supply Systems; Pump Systems; Water Cooled Equipment; Blending or Additive Systems; Liquid Transfer Systems; Fire Sprinkler Systems; Water Treatment Systems; Swimming Pool Chlorination; Industrial Laser Coolant System |
| Voltage | 120/240VAC |
| Includes | SPDT Switches |
| Features | Fluid Temperature 32F to 300F; Maximum pressure |
| Phase | 1 and 3 |
| Overall Length | 3.4 in |
| Overall Height | 8.4 in |
| Overall Width | 3 in |
| Connection Size | 1 in |
| For Pipe Size | 1 in |
| Item | Flow Switch, 1" with 2-Speed T Switches |
| Standards | cULus Approved |
| Switch Type | SPDT |
| Media Temperature - Minimum | 32 Degrees F |
| Contact Rating (AC) | 22.2 A @ 240V (Locked Rotor), 3.7 A @ 240V (Full Load), 44.4 A @ 120V (Locked Rotor), 7.4 A @ 120V (Full Load) |
| Set Point Configuration | Adjustable |
| Flow Switch Type | Paddle |
| Ambient Temperature - Minimum | 32 Degrees F |
| Media Temperature - Maximum | 300 Degrees F |
| Wetted Material | Brass, Stainless Steel |
| Flow Rate - Minimum | 6 gpm |
| Connection Type | NPT |
| Flow Rate - Maximum | 10.2 gpm |
Description

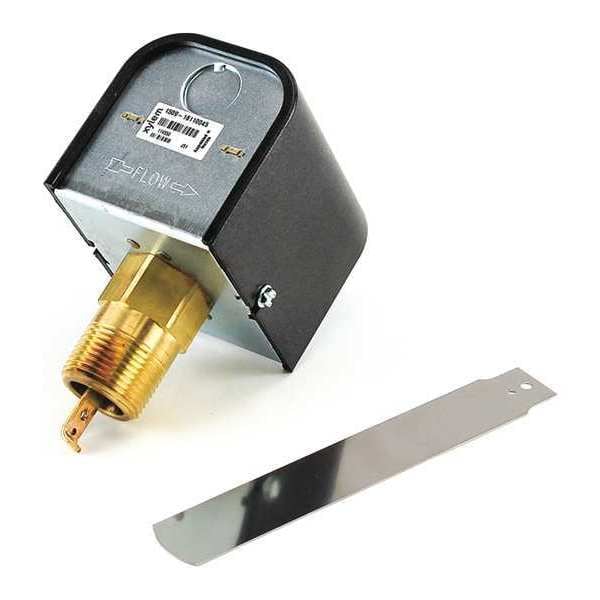

The McDonnell & Miller FS4-3D is a flow switch with 2-SPDT switches, designed for 120/240VAC operation in 1 and 3 phase systems. This type of switch detects fluid flow and actuates the SPDT switches to control or signal system operation. It is cULus Approved for use with air conditioning, hot water space heating systems, hot water supply systems, pump systems, water cooled equipment, blending or additive systems, liquid transfer systems, fire sprinkler systems, water treatment systems, swimming pool chlorination, and industrial laser coolant systems.
