- Voltage: 120 to 277V AC
- Body Material: Plastic
- Amps: 15 A
- HP @ 120V: 1/2
- HP @ 240V: 1
- Operating Temp.: -40 Degrees to 131 Degrees F
Specifications
| Part Number | FM1D14-AV-U |
| Brand | Intermatic |
| Operation Mode | 25 hour |
| Number of Channels | 1 |
| Voltage | 120 to 277V AC |
| Body Material | Plastic |
| Amps | 15 A |
| Width | 3 in |
| Height | 2 in |
| Depth | 3 in |
| Display Height | 1/2 in |
| Display Width | 1 in |
| Product Depth | 1.26 |
| Product Width | 2.36 |
| Product Height | 2.36 |
| Overall Depth | 1 1/4 in |
| Overall Width | 2 3/8 in |
| Overall Height | 2 3/8 in |
| Item | Electronic Timer |
| Contact Form | SPDT |
| HP @ 120V | 1/2 |
| HP @ 240V | 1 |
| Events Available - Electronic Timer | 14 |
| Available Actions - Electronic Timer | On/Off |
| Standards | cRUus, California Title 20 |
| Color | Gray |
| Mounting | Panel |
| Operating Temp. | -40 Degrees to 131 Degrees F |
| Min. Time Setting | 1 min |
| Backup Time | 2,500 hr |
| Max. On/Off Cycles | 14 |
| Backup Device | Battery |
| Event Allocation - Electronic Timer | 1 On/Off Action = 2 Events |
| Number of Poles | 1 |
| Description/Special Features | 4.9A Electronic Ballast |
| Max. Time Setting | 24 hr |
| NEMA Rating | 1 |
| Number of Pulse Events | 0 |
| Green Environmental Attribute | Product is Rechargeable |
| Hz - Electrical | 50-60 Hz |
| Display | LED |
| Switch Type | SPDT |
| Features | LCD Display, Manual Override with Status Indication |
| Max. Wattage | 1.4 W |
| Power Required | 4 VA |
| Adjustment Type | Manual |
| Voltage Type | Voltage Specific |
| Application | Machinery, HVAC |
| Series | FM1D14 |
| Backup Protection Time | 2500 Hours |
| Motor Load Ratings NO Ranges | 1/2 HP @ 120 VAC; 10 FLA, 60 LRA @ 250 VAC; 1 HP @ 250 VAC |
| Wiring Option | 1/4" Quick connect terminals |
| Operating Humidity | 0-95% RH, Non-condensing |
| Application Compatibilities | LED |
| Minimum ON/OFF Times | 1 min |
| Magnetic Ballast (NO) | 8 A, 277 VAC |
| Daylight Savings Adjustment | Manual |
| Mounting Options | Panel |
| Has Manual Override Status Indication | Yes |
| On Off Operations | 98 |
| Electronic Ballast (NO) | 4.9 A, 120 VAC |
| Number Of Circuits | 1 |
| Motor Load Ratings NC Ranges | 1/2 HP @ 120/240 VAC; 10 FLA, 60 LRA @ 250 VAC |
| Applications | Aeration Air Movement & Ventilation Generator Exercising Refrigeration Merchandiser Septic Treatment |
| Mechanism Type | Digital/Electrical |
| General Purpose (NC) | 15 A, 277 VAC |
| General Purpose (NO) | 15 A, 277 VAC |
| Operating Temperature Max (°F) | 135 |
| Pilot Duty (NO) | B300 |
| Voltage Selection Type | Voltage Specific |
| Battery Service Type | Self-recharging |
| Magnetic Ballast (NC) | 8 A, 120 VAC |
| Maximum Power Consumption (W) | 1.4 W |
| Backup Type | Battery |
| Tungsten (NO) Load Ratings | 1000 W, 120 VAC |
| Operating Temperature Min (°F) | 5 |
| Operating Temperature Max (°F) | 135 |
| Operating Temperature Min (°F) | 5 |
| Timer Functions | On/Off |
| Current Rating - Maximum | 12 A |
| Electrical Installation Type | 1/4 in Quick-Connect Terminal |
| Indoor/Outdoor Usage | Indoor |
| AC Voltage Rating | 120-277V AC |
| Astronomic Functionality | No |
| Body Color | Grey |
| NEMA Enclosure Rating | 1 |
| Time Setting - Minimum | 1 min |
| Mounting Style | Panel |
| Horsepower @ 120V - Maximum | 1/2 hp |
| Operating Temperature - Maximum | 135 Degrees F |
| Events Available | 14 |
| Horsepower @ 240V - Maximum | 1 hp |
| Compatible Lighting | LED |
| Time Setting - Maximum | 7 day |
| Operating Temperature - Minimum | 5 Degrees F |
| Time Minimum Setting | 2 min |
| Time Maximum Setting | 8 Days |
Description

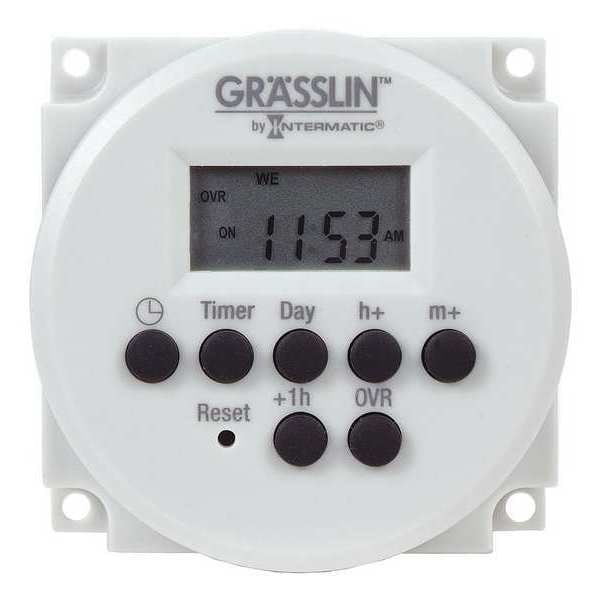

The Intermatic FM1D14-AV-U is an electronic timer, a 7-day time switch with SPDT contacts. It controls loads up to 15 amps at 120 to 277V AC, with horsepower ratings of 1/2 HP at 120V and 1 HP at 240V. This timer offers 14 programmable events and is cRUus and California Title 20 listed, operating in temperatures from -40 to 131 degrees Fahrenheit.
