- Voltage: 240V AC
- Amps: 21 A
- Contact HP @ 120V: 1 hp
- Contact HP @ 240V: 2 hp
- Operating Temp.: -40 Degrees to 185 Degrees F
- NEMA Rating: 3R
Specifications
| Part Number | FM/1STUZH-240U |
| Brand | Intermatic |
| Voltage | 240V AC |
| Amps | 21 A |
| Enclosure Type | STEEL |
| Indoor/Outdoor Usage | Indoor |
| Min. Time Setting | 15 min |
| Depth | 2 5/16 in |
| Height | 3 1/2 in |
| Width | 3 5/16 in |
| Product Depth | 1 1/4 in; 32 mm |
| Product Width | 2 23/64 in; 60 mm |
| Product Height | 2 23/64 in; 60 mm |
| Overall Width | 2 3/8 in |
| Overall Depth | 1 1/4 in |
| Overall Height | 2 3/8 in |
| Item | Electromechanical Timer |
| Max. Time Setting | 23 hr 45 min |
| Contact Form | SPDT |
| Max. On/Off Cycles | 48 |
| Contact HP @ 120V | 1 hp |
| Type | 24-Hour |
| Contact HP @ 240V | 2 hp |
| Time Setting Range | 15 min. to 23-3/4 hr. |
| Number of Trippers Included | 96 |
| Day Skipper | No |
| Nominal Max. Time Setting | 24 hr |
| Operating Temp. | -40 Degrees to 185 Degrees F |
| Number of Poles | 1 |
| Description/Special Features | True Clock Face |
| NEMA Rating | 3R |
| Standards | cCSAus, CE, cRUus |
| Mount | Panel |
| Product Type | Timer |
| Has Captive Trippers CVL | Yes |
| Wiring Option | 1/4" Quick connect terminals |
| Tungsten Load Ratings | 1350 W, 120 VAC |
| Mounting Options | Panel |
| UL Cerfication File Number | E10694 |
| Input Voltage Ranges | 208/240 VAC, 60 Hz |
| Shortest Switching Time | ON/OFF 15 minutes |
| CSA Certification | cCSAus |
| Power Consumption Max | 1 VA |
| Resistive Load Ratings | 21 A, 250 VAC |
| Applications | Refrigeration Merchandiser; Air Movement & Ventilation; Aeration; Septic Treatment; Generator Exercising |
| Solutions | Refrigeration; Ventilation; Water Treatment; Generator Exercising |
| Application Compatibilities | Incandescent; Fluorescent; CFL; LED |
| Operating Temperature Max | 185°C |
| Has Realtime Clock Face CVL | Yes |
| Motor Load Ratings | 1 HP, 120 VAC; 2 HP, 250 VAC |
| Operating Humidity | 0 to 95%, Non-condensing |
| Switch Type | SPDT |
| Has Override Switch CVL | Yes |
| Maximum Cycle Time | 24 hrs |
| Packaging Applications | Commercial Refrigeration; Pool & Spa; Ventilation; Hot Water Pump Circulation; Hydroponic Systems; Lighting Panel Control; Landscape Lighting; Bug and Pest Control Systems; Aerobic Waste Water Systems |
| Minimum Cycle Time | 15 min |
| Market | Commercial; Industrial |
| Clock Drive Type | Synchronous |
| Operating Temperature Min | -40°C |
| Timing Interval | 15 min |
| Has Real-time Clock Face | Yes |
| Has Captive Trippers | Yes |
| Motor Load Ratings Ranges | 1 HP, 120 VAC; 2 HP, 250 VAC |
| Has Override Switch | Yes |
| Operating Temperature Max (°F) | 185 |
| Resistive | 21 A, 250 VAC |
| Tungsten (NO) | 1350 W, 120 VAC |
| Operating Temperature Min (°F) | -40 |
| Mechanism Type | Electromechanical |
| Features | Manual Override, Noise Immune |
| Input Voltage Range(s) | 208/240 VAC, 60 Hz |
| Operating Temperature Min (°F) | -40 |
| Operating Temperature Max (°F) | 185 |
| Time Setting - Minimum | 15 min |
| Operating Temperature - Maximum | 185 Degrees F |
| Compatible Lighting | Compact Fluorescent, Fluorescent, Incandescent, LED |
| Series | FM1 |
| Body Material | Steel |
| On/Off Cycles - Maximum | 48 |
| DC Voltage Rating | 24V DC |
| Current Rating - Maximum | 21 A |
| AC Voltage Rating | 208/240V AC |
| Number of Trippers - Maximum | 96 |
| Application | Machinery, HVAC |
| Operating Temperature - Minimum | -40 Degrees F |
| Mounting Style | Panel |
| NEMA Enclosure Rating | No Enclosure |
| Horsepower @ 120V - Maximum | 1 hp |
| Time Setting - Maximum | 24 hr |
| Horsepower @ 240V - Maximum | 2 hp |
| Time Maximum Setting | 25 hr. |
| Time Minimum Setting | 16 min |
Description

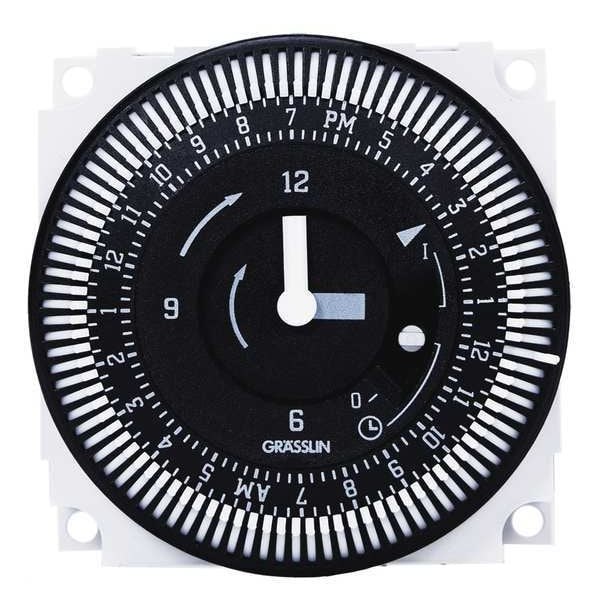

The Intermatic FM/1STUZH-240U is a 24-hour electromechanical timer with SPDT switching. This timer controls the on/off cycles of connected equipment based on a 24-hour schedule. It operates at 240V AC and 21 A, with contact ratings of 1 hp at 120V and 2 hp at 240V, housed in a steel enclosure.
