- Voltage: 120V AC
- Amps: 21 A
- Body Material: Steel
- NEMA Rating: 3R
- Operating Temp.: -4 Degrees to 131 Degrees F
- Contact HP @ 120V: 1 hp
Specifications
| Part Number | FM/1QTUZH-120U |
| Brand | Intermatic |
| Voltage | 120V AC |
| Amps | 21 A |
| Time Minimum Setting | 16 min |
| Enclosure Type | STEEL |
| Indoor/Outdoor Usage | Indoor |
| Height | 3 1/2 in |
| Depth | 2 5/16 in |
| Width | 3 5/16 in |
| Product Height | 2 23/64 in; 60 mm |
| Product Width | 2 23/64 in; 60 mm |
| Product Depth | 1 1/4 in; 32 mm |
| Overall Width | 2 3/8 in |
| Overall Height | 2 3/8 in |
| Overall Depth | 1 1/4 in |
| Item | Electromechanical Timer |
| Min. Time Setting | 15 min |
| Body Material | Steel |
| Contact Form | SPDT |
| Max. Time Setting | 23 hr 45 min |
| Max. On/Off Cycles | 48 |
| Nominal Max. Time Setting | 24 hr |
| Number of Poles | 1 |
| NEMA Rating | 3R |
| Operating Temp. | -4 Degrees to 131 Degrees F |
| Contact HP @ 120V | 1 hp |
| Day Skipper | No |
| Contact HP @ 240V | 2 hp |
| Mount | Panel |
| Type | 24-Hour |
| Standards | cCSAus, CE, cRUus |
| Description/Special Features | Battery Backup |
| Time Setting Range | 15 min. to 23-3/4 hr. |
| Number of Trippers Included | 96 |
| Product Type | Timer |
| CSA Certification | cCSAus |
| Application Compatibilities | Incandescent; Fluorescent; CFL; LED |
| Maximum Cycle Time | 24 hrs |
| Power Consumption Max | 1 VA |
| Operating Temperature Max | 131°C |
| Operating Temperature Min | -4°C |
| Operating Temperature with Battery Backup | -4° F to 131° F (-20° C to 55° C) |
| Has Override Switch CVL | Yes |
| Operating Humidity | 0 to 95%, Non-condensing |
| Minimum Cycle Time | 15 min |
| Switch Type | SPDT |
| Market | Commercial; Industrial |
| Shortest Switching Time | ON/OFF 15 minutes |
| UL Cerfication File Number | E10694 |
| Packaging Applications | Commercial Refrigeration; Pool & Spa; Ventilation; Hot Water Pump Circulation; Hydroponic Systems; Lighting Panel Control; Landscape Lighting; Bug and Pest Control Systems; Aerobic Waste Water Systems |
| Backup Type | 72-hour Carry-over; Battery; Self-recharging |
| Has Realtime Clock Face CVL | Yes |
| Timing Interval | 15 min |
| Battery Service Type | Rechargeable |
| Motor Load Ratings | 1 HP, 120 VAC, 50 Hz; 2 HP, 240 VAC, 50 Hz; 1 HP, 120 VAC, 60 Hz; 2 HP, 240 VAC, 60 Hz |
| Solutions | Refrigeration; Ventilation; Water Treatment; Generator Exercising |
| Battery Type | NiMh |
| Resistive Load Ratings | 21 A, 120 VAC, 50 Hz; 21 A, 208 VAC, 50 Hz; 21 A, 240 VAC, 50 Hz; 21 A, 250 VAC, 50 Hz; 21 A, 120 VAC, 60 Hz; 21 A, 208 VAC, 60 Hz; 21 A, 240 VAC, 60 Hz; 21 A, 250 VAC, 60 Hz |
| Applications | Refrigeration Merchandiser; Air Movement & Ventilation; Aeration; Septic Treatment; Generator Exercising |
| Has Captive Trippers CVL | Yes |
| Wiring Option | 1/4" Quick connect terminals |
| Mounting Options | Panel |
| Input Voltage Ranges | 120 VAC, 50/60 Hz |
| Clock Drive Type | Quartz |
| Backup Protection Time | 72 Hours |
| Tungsten Load Ratings | 1350 W, 120 VAC, 50 Hz; 1350 W, 120 VAC, 60 Hz |
| Resistive | 21 A, 120 VAC, 50 Hz, 21 A, 120 VAC, 60 Hz, 21 A, 208 VAC, 50 Hz, 21 A, 208 VAC, 60 Hz, 21 A, 240 VAC, 50 Hz, 21 A, 240 VAC, 60 Hz, 21 A, 250 VAC, 50 Hz, 21 A, 250 VAC, 60 Hz |
| Operating Temperature Min (°F) | -4 |
| Mechanism Type | Electromechanical |
| Operating Temperature Max (°F) | 131 |
| Features | Manual Override, Noise Immune, Quartz Drive with Self-Recharging Battery Backup |
| Has Real-time Clock Face | Yes |
| Motor Load Ratings Ranges | 1 HP, 120 VAC, 50/60 Hz; 2 HP, 240 VAC, 50/60 Hz |
| Has Override Switch | Yes |
| Has Captive Trippers | Yes |
| Input Voltage Range(s) | 120 VAC, 50/60 Hz |
| Tungsten (NO) | 1350 W, 120 VAC, 50 Hz, 1350 W, 120 VAC, 60 Hz |
| On/Off Cycles - Maximum | 48 |
| Time Setting - Minimum | 15 min |
| Compatible Lighting | Compact Fluorescent, Fluorescent, Incandescent, LED |
| Application | Machinery, HVAC |
| DC Voltage Rating | 24V DC |
| Number of Trippers - Maximum | 96 |
| Operating Temperature - Minimum | -4 Degrees F |
| Operating Temperature - Maximum | 131 Degrees F |
| Series | FM1 |
| Time Setting - Maximum | 24 hr |
| NEMA Enclosure Rating | No Enclosure |
| Horsepower @ 120V - Maximum | 1 hp |
| Horsepower @ 240V - Maximum | 2 hp |
| AC Voltage Rating | 120V AC |
| Mounting Style | Panel |
| Current Rating - Maximum | 21 A |
| Time Maximum Setting | 25 hr. |
Description

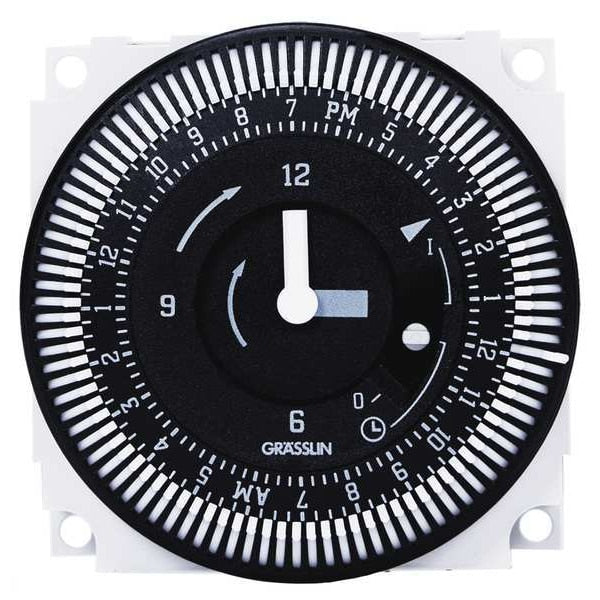

The Intermatic FM/1QTUZH-120U is an electromechanical timer with a 24-hour, SPDT configuration. This type of timer controls the on/off cycles of connected equipment based on a programmed schedule. It operates at 120V AC and 21 A, with a 1 hp contact rating at 120V, and is housed in a steel NEMA 3R enclosure.
