FF8.5HBK1 Embraco Refrigeration Compressor, 3,135 BtuH, 115V, 60 Hz

SKU: FF8.5HBK1
Your Price:
$352.63
Shipping: $299.00 freight, curbside delivery with liftgate. Dispatch timing varies by product and supplier.US only. The exact cost is confirmed at checkout.
Add to wishlist
Checkout Secure

Great reasons to buy from us:

  • Image of Quality Guaranteed

    Quality

    Quality Guaranteed
  • Image of Fast Shipping

    Free shipping

    Fast Shipping
  • Image of Great Value

    Fast Shipping

    Great Value
  • Image of Secure Online Ordering

    Free shipping

    Secure Online Ordering
  • Voltage: 115V AC
  • Phase: Single
  • Discharge Line Connection Size: 1/4 in
  • Suction Line Connection Size: 5/16 in
  • Evaporating Temp @ ARI Standards: 90 Degrees F
  • Refrigerant Type: R-134a

Specifications

Part Number FF8.5HBK1
Brand Embraco
BtuH 3,135 BtuH
Voltage 115V AC
Phase Single
Line Connection Suction I.D. 5/16 in
Line Connection Discharge I.D. 1/4 in
Width 6 3/4 in
Manufacturers Warranty Length 1 yr
Length 8 in
Base Mount Width 4 in
Height 8 in
Base Mount Length 6 1/2 in
Overall Height 7 15/16 in
Discharge Line Connection Size 1/4 in
Overall Length 8 in
Suction Line Connection Size 5/16 in
Mounting Length 6 1/2 in
Mounting Width 4 in
Overall Width 6 13/16 in
Item Compressor
Evaporating Temp @ ARI Standards 90 Degrees F
Refrigerant Type R-134a
Condensing Temp @ ARI Standards 130 Degrees F
Standards UL/CSA
Nominal HP 1/4 hp
Application Food Service
Hz 60
Amps 4.4 A
Includes Relay Kit
Type of Compressor Oil POE
Return Gas Temp @ ARI Standards 90 Degrees F
Liquid Temp @ ARI Standards 90 Degrees F
Ambient Temp @ ARI Standards 90 Degrees F
For Refrigerant Type R-134A
Frequency 60 Hz
Power Consumption 431 W
Application Temperature High, Low, Medium
Warranty 1 yr
For Lubricant Type Polyol Ester
Product Type Compressor
Cooling Capacity 3,135 BtuH
For Potential Relay - Manufacturer Model Number 513506244
Horsepower 1/4 hp
Current 4.4 A
Starting Capacitance 270 to 324/180

Description

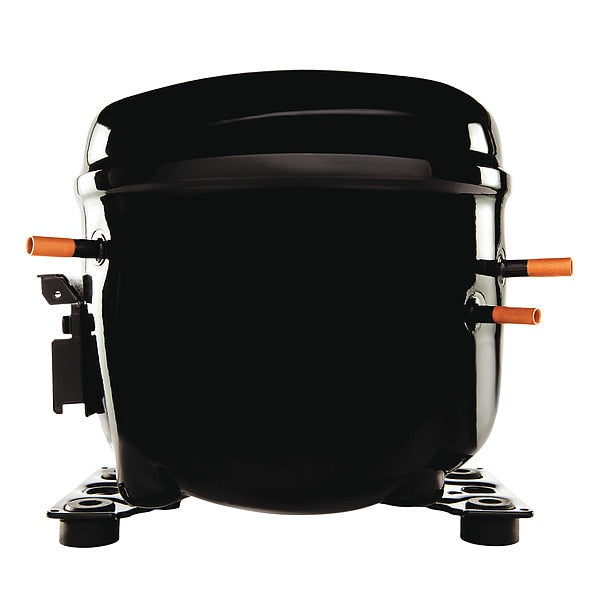

The Embraco FF8.5HBK1 is a refrigeration compressor with a cooling capacity of 3,135 BtuH. It operates on 115V AC, single-phase, 60 Hz power and uses R-134a refrigerant with POE oil. This 1/4 hp unit measures 8 in long, 6 13/16 in wide, and 7 15/16 in high, and includes a relay kit.
