- Max. Amps @ 125VAC: 20 A
- HP @ 240V: 2 hp
- HP @ 120V: 1 hp
- Max. Amps @ 277VAC: 10 A
- Max. Amps @ 250VAC: 10 A
- Operating Temp. Range: 40 to 120°C
Specifications
| Part Number | FF34H |
| Brand | Intermatic |
| Type | Analog/Mechanical |
| Application | HVAC, Lighting, Motor |
| Timing Range | 0 to 4 hr |
| Contact Form | SPDT |
| Number of Gangs | 2 |
| Width | 1-3/4 in |
| Depth | 1-1/4 in |
| Height | 4-1/4 in |
| Product Height | 4.125 |
| Product Depth | 1.25 |
| Product Width | 1.75 |
| Overall Depth | 1 1/4 in |
| Overall Width | 1 3/4 in |
| Overall Height | 4 1/8 in |
| Item | Spring Wound Timer |
| Time Range | 1 to 4 hr |
| Hold Feature | No |
| Faceplate Color | Silver |
| Max. Amps @ 125VAC | 20 A |
| Knob | Plastic |
| HP @ 240V | 2 hp |
| HP @ 120V | 1 hp |
| Max. Amps @ 277VAC | 10 A |
| Standards | cCSAus, RU |
| Max. Amps @ 250VAC | 10 A |
| Operating Temp. Range | 40 to 120°C |
| Light Type | Incandescent; Fluorescent; CFL; LED |
| Watts | Resistive Heater: 2500 to 2770 W; Tungsten Incandescent: 875 W |
| Input Voltage | 125/277 VAC |
| Operating Temperature Min (°F) | 40 |
| Applications | Air Movement & Ventilation Indoor Lighting Control Motor Control Outdoor Lighting Control |
| Countdown Time | 4 hrs |
| Motor Load Ratings Ranges | 1 HP, 125 VAC; 2 HP, 250 VAC |
| Tungsten (Incandescent) Range(s) | 7 A, 125 VAC, 50/60 Hz, 875 W |
| Hold Mode Included | No |
| Color | Silver |
| Wall Plate Configurations | Single-Gang, Multi-Gang |
| Switch Type | SPDT |
| Operation Mode | Countdown |
| Input Voltage Range(s) | 125-277 VAC, 50/60 Hz |
| Includes Wall Plate | Yes |
| Neutral Connection Required | No |
| Resistive Heater | 20 A, 2500 W, 125 VAC; 10 A, 2500 W, 250 VAC; 10 A, 2770 W, 277 VAC |
| Application Compatibilities | CFL, Fluorescent, Incandescent, LED |
| Wiring Configurations | Single |
| Mechanism Type | Analog/Mechanical |
| Features | Automatically Limit Time for Energy Consuming Loads |
| Operating Temperature Max (°F) | 120 |
| Tungsten Incandescent | 7 A, 125 VAC, 50 Hz, 7 A, 125 VAC, 60 Hz, 875 W |
| Operating Temperature Min (°F) | 40 |
| Operating Temperature Max (°F) | 120 |
| Product Type | Countdown Timer |
| AC Voltage Rating | 277V AC |
| Body Color | Silver |
| Time Setting - Maximum | 4 hr |
| Series | FF |
| Switch Style | 1-Pole |
| Horsepower @ 240V - Maximum | 2 hp |
| Compatible Lighting | Fluorescent, Incandescent, LED |
| Horsepower @ 120V - Maximum | 1 hp |
| Wattage - Maximum | 2,770 W |
| Display Type | Mechanical |
| Includes Hold | No Hold Included |
| Current Rating - Maximum | 20 A |
| Indoor/Outdoor Usage | Indoor, Outdoor |
Description

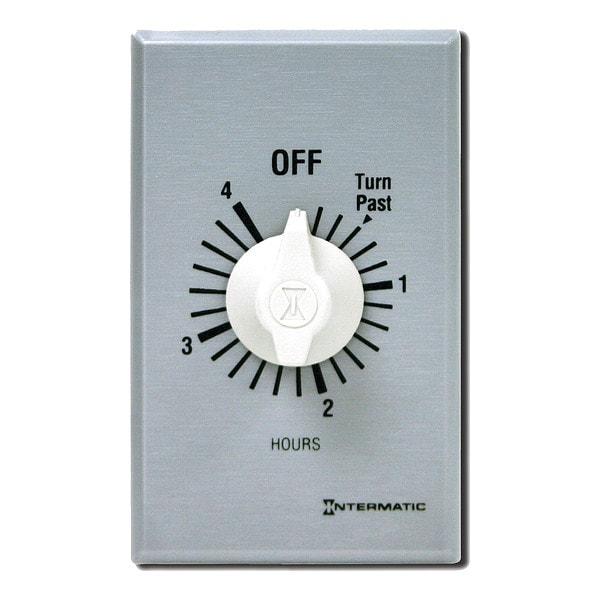

The Intermatic FF34H is a spring-wound timer. This analog/mechanical timer controls a circuit for a set period, automatically switching it off after the time expires. It is a SPDT 4-hour timer rated for 20 A at 125 VAC, 10 A at 277 VAC, 1 hp at 120 V, and 2 hp at 240 V, and it carries cCSAus and RU standards.
| Shipping | This item ships to USA |
