- Phase: Single
- RPM Range: 0-1,000
- Voltage: 208-230V AC
- Stud Size: #8-32
- HP: 1/6
- Full Load Amps: 1.1 A
Specifications
| Part Number | FE1018SF |
| Brand | Century |
| Motor Design | Permanent Split Capacitor |
| Phase | Single |
| RPM Range | 0-1,000 |
| No. of Speeds | 1 |
| Voltage | 208-230V AC |
| Shaft Dia. | 1/2 in |
| Shaft Length | 6 1/2 in |
| Stud Size | #8-32 |
| Overall Length | 11 1/2 in |
| Length Less Shaft | 5 in |
| Lead Length | 48 in |
| Body Dia. | 5 5/8 in |
| Mounting Stud Length | 1 1/16 in |
| Bolt Circle Dia. | 5 1/8 in |
| HP | 1/6 |
| Motor Shaft Rotation | CW/CCW |
| Frame | 48 |
| Motor Enclosure Design | Totally Enclosed Air-Over |
| Motor Mounting Type | Stud |
| Full Load Amps | 1.1 A |
| Motor Thermal Protection | Auto |
| Motor Bearings | Ball |
| Motor Mounting Position | All Angle |
| Nameplate RPM | 825 |
| Motor Sub Application | Condenser Fan |
| Features | Auto Protector, Energy Efficient |
| Max. Ambient Temp. | 70 Degrees C |
| Motor Service Factor | 1 |
| Motor Shaft Design | Double-Flat |
| Duty | Continuous |
| Stud Quantity | 4 |
| Hz | 60 Hz |
| Item | Condenser Fan Motor |
| Mounting Stud Pattern | 3 5/8 in x 3 5/8 in |
| Motor Application | HVAC/R |
| Capacitor Required | 2MDV4 |
| Standards | UL Recognized and CSA Certified |
| Voltage Compatibility | 115/208-230V AC, 200-230V AC, 208-220/440V AC, 208-230/277V AC, 208-230/440V AC, 208-230/460V AC, 208-230V AC, 208-240V AC |
| Ins. Class | F |
| Usable @ 200V | No |
| Motor Frame Material | Steel |
| Removable Base | Yes |
| Motor Flange Type | Non-Ventilated |
| Replacement For | Mfr. No. 6303 |
| Weight | 11 lb |
| Usable @ 208V | Yes |
| Output Watts | 130 W |
| Includes | Belly Band |
| Mounting | Stud |
Description

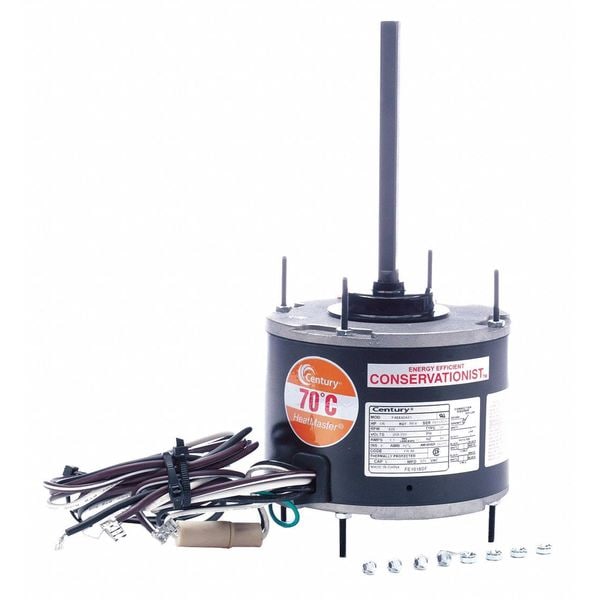

The Century FE1018SF is a 1/6 HP condenser fan motor designed for single-phase 208-230V AC operation. It has a nameplate RPM of 825 and a full load amperage of 1.1 A, with a totally enclosed air-over enclosure and stud mounting.
