- Stud Size: #8-32
- Voltage Compatibility: 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
- RPM Range: 1,001-1,100
- Hz: 60 Hz
- Full Load Amps: 7 A
- Phase: Single
Specifications
| Part Number | FDL6001A |
| Brand | Century |
| Motor Mounting Type | Band, Hole, Ring, Stud |
| Motor Shaft Design | Flat |
| Mounting Stud Location | Shaft End |
| Manufacturers Warranty Length | 1 yr |
| Resilient Ring Dia. | 2 1/4 in |
| Mounting Stud Length | 5/8 in |
| Overall Length | 10 3/8 in |
| Length Less Shaft | 5 7/8 in |
| Body Dia. | 5 5/8 in |
| Shaft Length | 5 in |
| Shaft Dia. | 1/2 in |
| Bolt Circle Dia. | 5 3/16 in |
| Stud Size | #8-32 |
| Lead Length | 36 in |
| Capacitor Required | Included |
| Motor Thermal Protection | Auto |
| Ins. Class | F |
| Ring to Ring Center | 5 7/16 in |
| Voltage Compatibility | 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC |
| RPM Range | 1,001-1,100 |
| Includes | Belly Band, Resilient Mounting Ring |
| Motor Bearings | Sleeve |
| Hz | 60 Hz |
| Motor Application | HVAC/R |
| Motor Sub Application | Direct Drive Fan/Blower |
| Standards | CSA Certified, UL Recognized |
| Motor Mounting Position | Horizontal |
| Full Load Amps | 7 A |
| Phase | Single |
| Motor Design | Permanent Split Capacitor |
| Application | Replaces Emerson, Fasco, Genteq, Marathon, Protech Fan, Blower Motors In Residential and Light Commercial HVAC Systems |
| No. of Speeds | 4 |
| Voltage | 115V AC |
| Duty | Continuous |
| Nameplate RPM | 1,075 |
| Motor Shaft Rotation | CW/CCW |
| Max. Ambient Temp. | 40 Degrees C |
| Motor Service Factor | 1 |
| Mounting Stud Pattern | 3-5/8 in x 3-5/8 in |
| HP | 1/2 to 1/6 |
| Motor Enclosure Design | Open Air-Over |
| Item | Direct Drive Blower Motor |
| Frame | 48 |
| Usable @ 208V | No |
| Motor Frame Material | Steel |
| Mounting Holes | (4) #8-32 |
| Usable @ 200V | No |
| Stud Quantity | 4 |
| Number of Shafts | 1 |
| Weight | 16 lb |
| Number of Speeds | 4 |
| Mounting | Stud |
Description

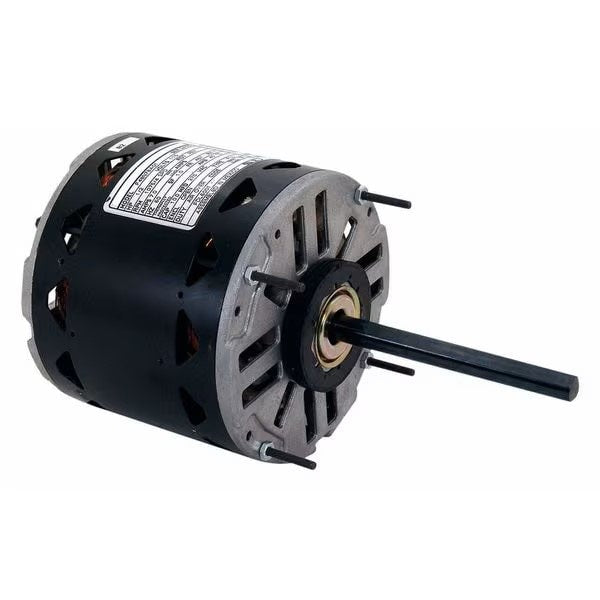

The Century FDL6001A is a 1/2 HP PSC motor for direct-drive fan or blower applications in HVAC/R systems. It operates at 1075 RPM on 115V AC (60 Hz) and includes a capacitor, belly band, and resilient mounting ring.
