- Phase: Single
- Voltage: 110/220V AC, 115/208-230V AC
- Nameplate RPM: 3,450/2,850
- Hz: 60/50
- HP: 1/2
- Full Load Amps: 8.2/4.2-4.1
Specifications
| Part Number | EU0502 |
| Brand | U.S. Motors |
| Shaft Dia. | 5/8 in |
| Motor Shaft Design | Threaded |
| Phase | Single |
| Voltage | 110/220V AC, 115/208-230V AC |
| Overall Length | 11 11/16 in |
| Shaft Length | 2 5/8 in |
| Length Less Shaft | 10 1/2 in |
| Body Dia. | 5.6 in |
| Bolt Circle Dia. | 5 7/8 in |
| Height | 7 3/8 in |
| Item | Pool and Spa Pump Motor |
| Motor Sub Application | Pump |
| Nameplate RPM | 3,450/2,850 |
| Hz | 60/50 |
| Ins. Class | B |
| HP | 1/2 |
| Motor Mounting Type | Face/Base |
| Motor Service Factor | 1.6 |
| Frame | 56J |
| Full Load Amps | 8.2/4.2-4.1 |
| Standards | CE, CSA Certified, ISO9001:2015 Certified, UL Listed |
| Max. Ambient Temp. | 40 Degrees C |
| Motor Enclosure Design | Open Dripproof |
| Motor Application | Pump |
| Motor Design | Capacitor-Start |
| Motor Bearings | Ball |
| Motor Shaft Rotation | CCW |
| Motor Thermal Protection | Auto |
| HP @ 50Hz | 1/2 |
| Service Factor @ 50Hz | 1.6 |
| Weight | 18 lb |
| RPM @ 50Hz | 2,850/3,450 |
| Voltage @ 50Hz | 110/220V, 115/208-230V |
| Usable @ 208V | Yes |
| No. of Speeds | 1 |
| Full Load Amps @ 50Hz | 8.2/4.2-4.1 |
| Duty Cycle | Continuous |
| Max. SF Amps | 10.8/5.9-5.4 |
Description

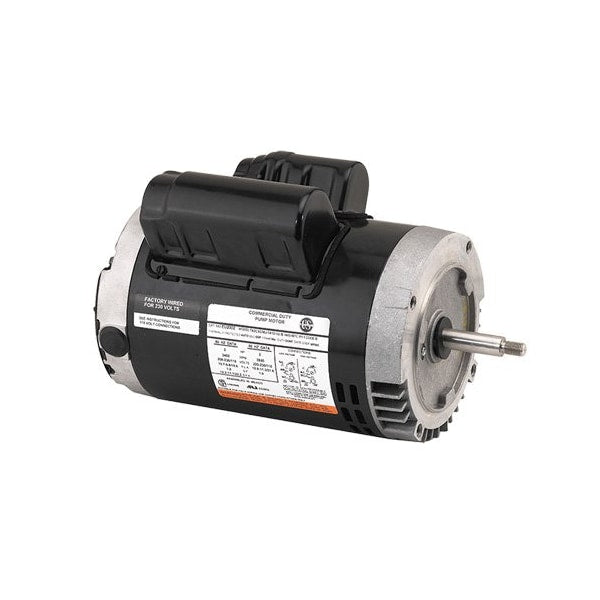

The U.S. Motors EU0502 is a 1/2 HP pool and spa pump motor. It operates at 3,450/2,850 RPM on 60/50 Hz and accepts 110/220V AC or 115/208-230V AC single-phase power. This motor uses a face/base mounting type.
