- Voltage: 120 to 277V AC
- Min. Wire Size: #14 AWG
- Max. Wire Size: #8 AWG
- Wire Size Max: #8 AWG
- Wire Size Min: #14 AWG
- Body Material: Metal
Specifications
| Part Number | ET2705C |
| Brand | Intermatic |
| Operation Mode | 366 Days |
| Number of Channels | 1 |
| Time Minimum Setting | 2 min |
| Indoor/Outdoor Usage | Indoor |
| Voltage | 120 to 277V AC |
| Display Width | 3 in |
| Height | 7 7/8 in |
| Display Height | 1 in |
| Depth | 3 7/16 in |
| Width | 5 1/8 in |
| Min. Wire Size | #14 AWG |
| Max. Wire Size | #8 AWG |
| Product Depth | 3.4375 |
| Knockout Dimensions Bottom | (2) combination 1/2" - 3/4" |
| Wire Size Max | #8 AWG |
| Knockout Dimensions Back | (1) combination 1/2" - 3/4" |
| Wire Size Min | #14 AWG |
| Product Width | 5.125 |
| Product Height | 7.875 |
| Overall Depth | 3 7/16 in |
| Overall Width | 5 1/8 in |
| Overall Height | 7 7/8 in |
| Item | Electronic Timer |
| Body Material | Metal |
| Amps | 30 A |
| Contact Form | SPST |
| HP @ 120V | 1 |
| HP @ 240V | 2 |
| Events Available - Electronic Timer | 96 |
| Available Actions - Electronic Timer | On/Off |
| Color | Gray |
| Min. Time Setting | 1 min |
| Standards | cULus, California Title 20 |
| Number of Pulse Events | 0 |
| Backup Device | Capacitor |
| Number of Poles | 1 |
| Max. On/Off Cycles | 96 |
| Max. Time Setting | 7 day |
| Operating Temp. | -40 Degrees to 155 Degrees F |
| Description/Special Features | Indoor |
| Mounting | Surface |
| Event Allocation - Electronic Timer | 1 On/Off Action = 2 Events |
| Backup Time | 100 hr |
| Enclosure | Metal |
| NEMA Rating | 1 |
| Enclosure Type | Indoor type 1 metal |
| Hz - Electrical | 60 Hz |
| Max. Ballast Amps | 10 A, 120/277 VAC |
| Max. Wattage | 3 W |
| Display | LED |
| Features | 50 Holiday Blocks |
| Switch Type | SPST |
| Voltage Type | Auto Voltage |
| Adjustment Type | Automatic |
| Application | Lighting, Machinery, Pump Controls |
| Series | ET2000 |
| Operating Temperature Min (°F) | -40 |
| Daylight Savings Adjustment | Automatic |
| Voltage Selection Type | Auto Voltage |
| Input Voltage Range(s) | 120-277 VAC, 60 Hz |
| Electronic Ballast LED | 10A |
| Wiring Option | Terminals |
| On Off Operations | 96 |
| Number Of Circuits | 1 |
| Applications | Indoor Lighting Control Machinery & Pump Controls Timing/Scheduling ON/OFF |
| Tungsten (NO) Range(s) | 5 A, 120-277 VAC |
| Backup Restoration Time | 30 Minutes |
| Maximum ON/OFF Times | Indefinite |
| Minimum ON/OFF Times | 1 min |
| Operation Features | Holiday |
| Application Compatibilities | LED |
| Motor Load Ratings NO Ranges | 1 HP, 120 VAC; 2 HP, 240 VAC |
| Resistive (NO) Range(s) | 20 A, 28 VDC; 30 A, 120-240 VAC |
| Operating Temperature Max (°F) | 104 |
| Backup Type | Supercapacitor |
| Inductive Load Ratings NO Ranges | 30 A, 120-240 VAC |
| Maximum Power Consumption (W) | 3 W |
| Electronic Ballast Load Ratings NO Ranges | 10 A, 120/277 VAC |
| UL Certification | CULUS |
| Maximum ON/OFF Operations | 96 |
| Backup Protection Time | 100 Hour |
| Electronic Series | ET2000 Series |
| Magnetic Ballast (NO) Range(s) | 20 A, 120-277 VAC |
| Operating Temperature Max (°F) | 104 |
| Operating Temperature Min (°F) | -40 |
| Events Available | 96 |
| NEMA Enclosure Rating | 1 |
| Horsepower @ 120V - Maximum | 1 hp |
| AC Voltage Rating | 120-277V AC |
| Mounting Style | Surface |
| Astronomic Functionality | No |
| Timer Functions | On/Off |
| Operating Temperature - Minimum | -40 Degrees F |
| Body Color | Grey |
| Horsepower @ 240V - Maximum | 2 hp |
| Current Rating - Maximum | 30 A |
| Compatible Lighting | LED |
| Time Setting - Minimum | 1 min |
| Operating Temperature - Maximum | 104 Degrees F |
| Electrical Installation Type | Screw Terminal |
| Time Setting - Maximum | 7 day |
| Time Maximum Setting | 8 day |
Description

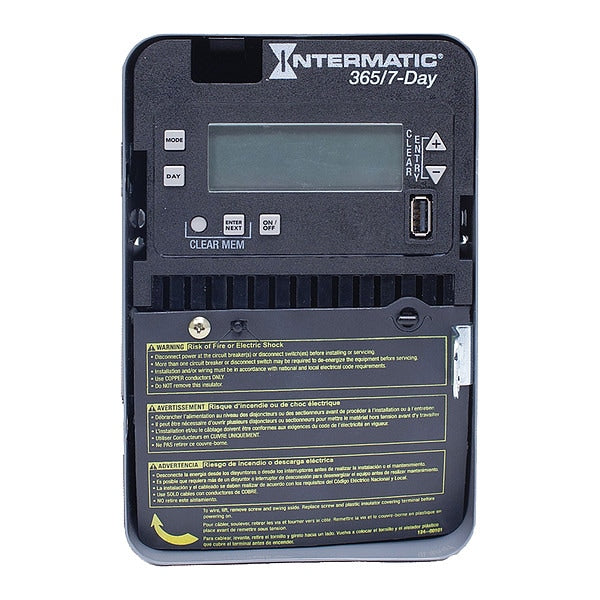

The Intermatic ET2705C is an electronic timer designed for HVAC and appliance applications. This 7/365-day, single-circuit control operates on 120 to 277V AC and handles 30 amps, with horsepower ratings of 1 HP at 120V and 2 HP at 240V. The timer is housed in a metal body and complies with cULus and California Title 20 standards, with an operating temperature range of -40 to 155 degrees Fahrenheit.
